PMC200 Power Monitoring System
Distribution system operation monitoring;
Power quality monitoring and analysis;
Energy consumption analysis in statistics;
Alarm and event logging;
History operating trend curve and reports suchlike tailored functional software modules;
At present, the trend and reliability of the industry of power supply and distribution plays an important role in the development of nation economy.
With sharp increasing number for major fiscal-aid projects, landmark buildings / large public facilities across the country, users who demand multi-substations in large area also expect higher standard for power supply and distribution system in the aspects of reliability, security, real-time performance, ease of use, compatibility and minimization of the side-affect of fault scope. Based on remote monitoring, field bus, computer integrated management technology, LV intelligent power distribution system start spread as a standardized configuration in many areas in many industry.
With the help of computers, communications equipment, measurement and control unit, the protection relays, KS-3000 power monitoring system software provides users with the base platform for real-time data acquisition of system, switch status detection and remote control. KS-3000 system can provide users with monitoring integration “as the overall solution”, including real-time power collection modules, energy management analysis module, real-time history database, event alarm module, short message alarm module.
KS-3000 power monitoring system software play an important role in the line of power utility systems, commercial and public buildings, infrastructure, automobile, petrochemical, telecommunications, metallurgy, light industry, water treatment and other fields, and it results in good energy management.
Master Layer (Computers and software)
Station control layer consist of KS-3000 power monitoring software, monitoring Host device, database release server,
Printer, UPS power; depending on the different environment, it can do in two ways:One server, One client and one server, multiple clients.
Communication Layer (Correspondence Device)
Layer consist of industrial switchboard and communication management device,so it can realize the connection between the on-site monitoring & control device and the monitoring host device, complex systems also adopt Fiber circle-net redundancy structure.

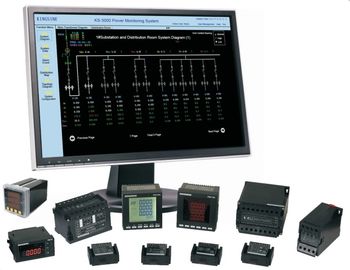

To finish field measurement & monitoring & communication etc functions, it is Interval layer installation where installed with KS610 power quality monitoring devices, PMC Series Intelligent Instruments, protection relays, transformers temperature controller device.PMC series meter includes PMC200 Power Data Measurement and Control Meter, PMC180 three-phase digital number displaying meter, PMC180N, three-phase power network meter, PMC100 single phase digital power meter, and PMC100N single phase power network meter.
Solution Systematic Configuration
Small investment but get power system monitoring, Economical and practical.
Full power monitoring, analysis, control O/C switch of electric power system, real-time short-letter alarm and high performance cost ratio.
Power Quality Solution
Real-time power quality monitoring and analysis, analysis of the whole power monitoring, control, closing. Fault recording and playback of electric power system for easy fault analyze;Real-time SMS alarm; High performance cost ratio.
System Operation Monitoring & Control
Power standard graphics mode for the whole system structure reflection; Dynamic refresh to real-time operating parameters and equipment operation state of each line; Remote control supportable for flexible customerized configuration.
Power Quality Monitoring Analysis
The system power quality continuous monitoring for the real-time monitoring of system voltage flicker, transient, imbalance, frequency deviation, harmonics and other power quality problems; especially event trigger waveform capture and the disturbance waveforms record for easy power quality analysis and fault analysis.
Energy Consumption Statistics & Analysis
Adopt consolidated statements way, real-time display, statistical record of each line and each period electricity consumption which include date, month, year and cross-time statistical statements, describe each line each period electricity consumption drift by curve, analyses for energy consumption, it also can be saved, printed, query and import browser.
Alarm and Event Management
System alarm include: line load over capability, measured value over limited, equipment state change; Alarm condition user can be configured manually according to the actual situation; In the real-time store data library of Alarm and event message, store capability is only restricted by hardware volume; Alarm and event message sort and merge query by time, type, alarm group etc;Alarm message can use the way of Email, cell phone message, sound, or text to inform relevant personnel.
System adopts template to build a statement, it also can customized template, system update statement data regularly via template demand.
System support statement file saved as format of rtl, xls, csv for data secondary development.
History Data Management
System store important data to history data library, it can be queried by time quantum and curve the graph.
Ensure that system security run steadily; user authority management can prevent unauthorized operation. Define different level user logic name, password and operation authority, provide credible and safe guarantee for system operation and maintain management.
Web Message System
Based on IE browser data visit function, Web display picture and data will be synchronously as serve, check real-time data view, real-time curve view, history data view, history curve view, data library view, data library time curve view and monitor pictures.
Support industry OPC interface, it can be OPC serve for other program to provide data (such as DCS system); it also can be OPC client terminal, get data from other system. System can support access from multiple of third-party equipment.
