Lightweight Intelligent IEC61850 K2066i Relay Test Set

Lightweight Intelligent IEC61850 K2066i Relay Test Set
Lightweight Intelligent IEC61850 K2066i Relay Test Set

Large Image :  Lightweight Intelligent IEC61850 K2066i Relay Test Set

Product Details:

Place of Origin: China
Brand Name: Kingsine
Certification: CE/ISO9001
Model Number: K2066i

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: L/C,T/T
Supply Ability: 100 sets/month
Detailed Product Description
Voltage Range: 7×310 V Ac Voltage Power: 90 VA
Voltage Accuracy: <0.015%Rd+0.005Rg Typ. @ 2~310V Ac Grounding Terminal: 4mm Banana Socket
Weight: 20 Kg Dimensions(W X D X H): 480×320×160(mm)
High Light:

IEC61850 K2066i

,

IEC61850 Relay Testing Device

,

IEC61850 relay test set

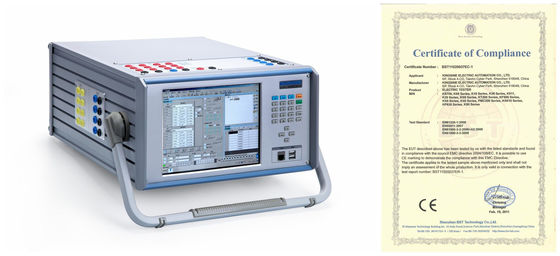

Lightweight Intelligent IEC61850 K2066i relay test set



Description Of Relay Testing Device Complied IEC61850

Universal protection relay test function, With fully function of Manual test, state sequencer,Harmonic,recloser test , Line differential, Distance, Mutation distance, Overcurrent, Zero sequencer, Ramping, Power direction, Differential rate, Differential Harmonic, Overexcitation protection, Synchronize, Reserve power supply test, Busbar differential, Frequency test, Dv/Df test, etc.



Feature Of Relay Testing Set Complied IEC61850

Switch on to fault test(SOTF)
Power system model for dynamic testing
Online Vector display
Automatic test results assume
Automatic test report creation
Inbuilt GPS sync end-to-end testing
Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection
3-Years guarantee of free repair and life-long maintenance
Lightweight, <20Kg
Free software upgrade



Specification Of Relay Testing Kit Complied IEC61850

Binary Input
Quantity 8pairs
Type wet/dry, up to 300Vdc max input
Time resolution 10us
Sampling Rate 10KHz
Debounce time 0~25ms (Software Controlled)
Time range Infinite
Time errors ±1ms @ ≤1s, ±0.1% @ >1s
Galvanic isolation Isolated each pairs
Binary Output (Relay Type)
Quantity 4pairs
Type Potential free relay contacts, software controlled
Break Capacity AC Vmax: 400Vac / Imax:8A / Pmax:2500VA
Break Capacity DC Vmax: 300Vdc / Imax:5A / Pmax:150W
Binary Output (Semiconductor Type)
Quantity 4pairs
Type: Open-collector, Combination type male
Break Capacity DC 5~15Vdc / 5mA, 10mA max
Response time: 100us
Synchronization
Synchronization Mode  GPS, SMA type antenna connector
Power supply & Environment
Nominal Input Voltage 110V/220/230V ac, Appointed
Permissible Input Voltage 85~264Vac, 125~350VDC, auto-protective
Nominal Frequency 50/60Hz
Permissible Frequency 45Hz~65Hz
Power Consumption 1500 VA max
Connection Type Standard AC socket 60320
Operating Temperature -10℃~55℃
Storage Temperature -20℃~70℃
Humidity <95%RH, non-condensing
Others
PC Connection RJ45 Ethernet, 10/100M
USB port 2 USB type-A ports for external Keyboard, mouse or Data transport
Grounding Terminal 4mm banana socket
Weight 20 Kg
Dimensions(W x D x H) 480×320×160(mm)



Advantage Of Relay Testing System Complied IEC61850

Powerful 6-phase relay test set and commissioning tool, convenient for field test;
6x35A & 7x310V high accuracy analog channels output;
9.7” True color TFT LCD, touch screen and keyboard operating, w/wo laptop control;
The ever-expanding test library templates;



FAQ

Q: Can the device test the function of Synchronising or synchronism-check relays?

A: Yes.

Q: How about the guarantee of repair?

A: All of our products have 3-years guarantee of free repair, and life-long maintenance.

Q: What is your technical advantages?

A: 13 Channels (6x35A & 7x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.
