Universal IEC61850 K68i Secondary Injection Relay Test Kit

large.img.alt
large.img.alt

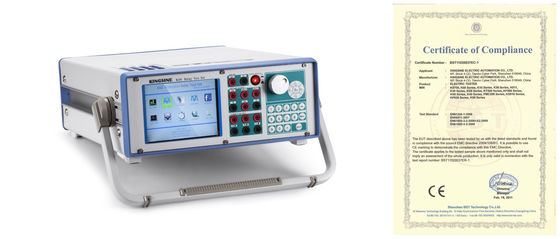

Large Image :  Universal IEC61850 K68i Secondary Injection Relay Test Kit

Product Details:
Place of Origin: China
Brand Name: Kingsine
Certification: CE/ISO9001
Model Number: K68i
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: L/C,T/T
Supply Ability: 100 sets/month
Detailed Product Description
Voltage Range: 4×300 V Ac Voltage Power: 120 VA
Voltage Accuracy: <0.07%Rd+0.03Rg Guar. @ 2~300V Ac Nominal Input Voltage: 110V/220/230V Ac, Appointed, ±15%
Nominal Frequency: 50/60Hz Weight: 20.5 Kg
High Light:

K68i Secondary Injection Relay Test Kit

,

K68i Secondary Relay Test Kit

,

IEC61850 Secondary Injection Test Kit

Universal IEC61850 K68i Secondary Injection Relay Test Kit



Description Of Universal Secondary Injection Test Set Complying IEC61850

It satisfies all requirements of field test.The tester can simultaneously output standard six-phase current and six-phase voltage with 35A/phase current and 300V/phase voltage. The tester can not only test traditional relays and protective devices, but also test modern microcomputer-based protective devices, especially the differential protection of transformers and automatic switching devices of stand-by power supply. Testing becomes more convenient and perfect.



Feature Of Universal Secondary Injection Test Device Complying IEC61850

Basic functions:

DC test
AC test
Distance relay test
Harmonic test
Frequency test
8 pairs binary inputs
4 pairs binary outputs


Advance software functions (optional for selections):

Differential test
State sequence test
Time characteristic test
Advance distance test
Synchronizer test
Fault recurrence (fault play back)



Specification Of Universal Secondary Injection Test System Complying IEC61850

Binary Input
Quantity 8pairs
Type wet/dry, up to 300Vdc max input
Time resolution 100us
Sampling Rate 10KHz
Debounce time 0~25ms (Software Controlled)
Time range 999.999s
Time errors ±1ms @ ≤1s, ±0.1% @ >1s
Galvanic isolation Isolated as 1,2,3,4-8 pairs
Binary Output (Relay Type)
Quantity 4pairs
Type Potential free relay contacts, software controlled
Break Capacity AC Vmax: 400Vac / Imax:4A / Pmax:1000VA
Break Capacity DC Vmax: 300Vdc / Imax:4A / Pmax:300W
Synchronization
Synchronization Mode  External GPS (Optional)
Power supply & Environment
Nominal Input Voltage 110V/220/230V ac, appointed, ±15%
Permissible Input Voltage 85~264Vac, 125~350VDC, auto-protective
Nominal Frequency 50/60Hz
Permissible Frequency 45Hz~65Hz
Power Consumption 1500 VA max
Connection Type Standard AC socket 60320
Operating Temperature -10℃~55℃
Storage Temperature -20℃~70℃
Humidity <95%RH, non-condensing
Others
PC Connection RJ45 Ethernet, 10/100M
Grounding Terminal 4mm banana socket
Weight 20.5 Kg
Dimensions(W x D x H) 360×450×140(mm)




Advantage Of Universal Secondary Injection Tester Complying IEC61850

Variable battery simulator, DC 0-300V, 120Watts max.
Quick relay testing facility in Manual mode
Switch on to fault test(SOTF)
GPS sync end-to-end testing
Online Vector display
Automatic test report creation
Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection



FAQ

Q: Can the device test the function of Synchronising or synchronism-check relays?

A: Yes.

Q: How about the guarantee of repair?

A: All of our products have 3-years guarantee of free repair, and life-long maintenance.

Q: What is your technical advantages?

A: 7 Channels (4x300V & 3x35A) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 20x harmonics.
