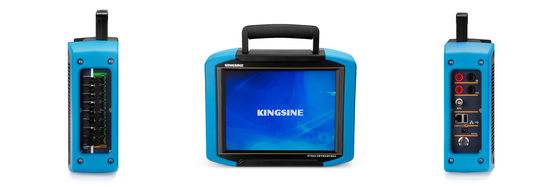

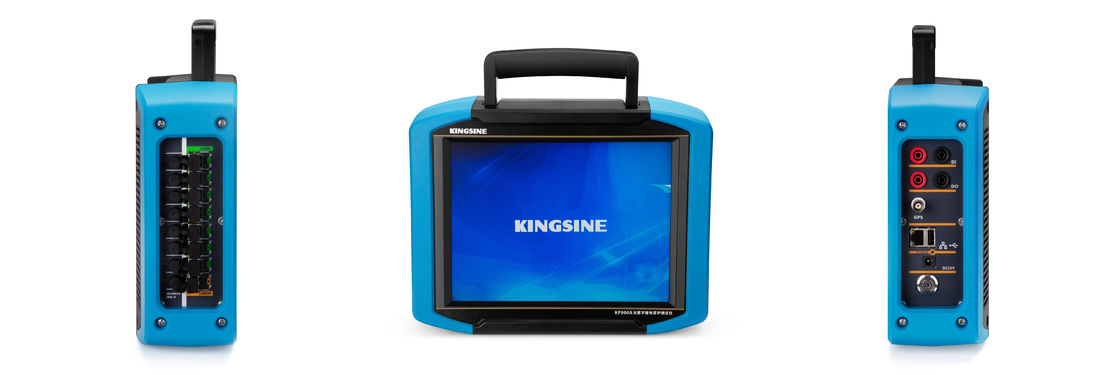

Overcurrent IEC61850 Relay Test System IEDs Analyzer KINGSINE KF900A

Overcurrent IEC61850 Relay Test System IEDs Analyzer KINGSINE KF900A
Overcurrent IEC61850 Relay Test System IEDs Analyzer KINGSINE KF900A

Large Image :  Overcurrent IEC61850 Relay Test System IEDs Analyzer KINGSINE KF900A

Product Details:
Place of Origin: China
Brand Name: KINGSINE
Certification: CE/ISO9001
Model Number: KF900A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: L/C,T/T
Supply Ability: 100 sets/month
Detailed Product Description
Display: 10.4 Inch High-definition Capacitive LCD Screen SV Message Output Dispersion: ≤±80ns
Fiber Serial Port Transfer Delay: ≤100ns Power Adapter: 220VAC/50Hz
Size: 320mm×250mm×100mm(L×W×H) Weight: <2.75kg
High Light:

220VAC Relay Test System

,

KINGSINE KF900A

,

KF900A Relay Test System

Overcurrent IEC61850 Relay Test System IEDs Analyzer KINGSINE KF900A



Discription of overcurrent relay tester KF900A

Universal protection relay test function, With fully function of Manual test, state sequencer, Harmonic, recloser test , Line differential, Distance, Mutation distance, Overcurrent, Zero sequencer, Ramping, Power direction, Differential rate, Differential Harmonic, Overexcitation protection, Synchronize, Reserve power supply test, Busbar differential, Frequency test, Dv/Df test, etc.



Feature Of overcurrent relay test set KF900A

Comprehensive test instrument develop based on intelligent substation testing, mainly function is protection relay testing, sampling value analysis, SCD file analysis/comparison and MMS service. Suitable for detection and testing of IED equipment such as intelligent substation protection relay, measurement and control device, merge unit and intelligent terminal. Also can used in signal check of substation control layer.
Light weight: < 2.75kg
Full touch screen operation



Specification Of overcurrent test device KF900A

Item Parameters
Fiber Port 8 pairs, LC type port, wave-length 1310nm
One of the optical ports is a dedicated 1000M optical module, which is suitable for 1000M networks.
Fiber serial port 8, ST type port, wave-length 850nm
6 sending, 2 receiving (Can be used as FT3 or IRIG-B)
Ethernet port 1,100Base-TX,RJ45
USB Port 1
GPS Port 1 channel, GPS signal receiver internal
Analog input port(Optional) 4 or 8 pairs, 18 bit AD, 40kHz sampling rate, input range 0-250VAC
Hard contact binary input 1 Pair, Adaptive empty contact or potential contact (30~250V), response time ≤500μs
Hard contact binary output 1 pair, Open-collect type, blocking capacity more than 250V, 0.3A (DC), response time ≤ 100μs
Measure accuracy Voltage and current measurement accuracy error ≤0.05%
Frequency accuracy is better than 0.001Hz in the range of 15~1000Hz
Phase measurement accuracy error ≤0.01°





Advantage Of overcurrent relay test system KF900A

Support importing substation Excel point table, obtain channel mapping configuration of remote measure signal and remote control signal through SCD file, automatically generate station signal point table, and directly transmit remote measure signal and remote control signal according to point number order;
With SV, GOOSE message monitoring function. Real-time display of SV sample value amplitude, phase, frequency, waveform, vector and message source code, real-time display GOOSE virtual terminal status and message source code, record each virtual terminal turn over time and test GOOSE message transmission mechanism;
Supports transmission delay, SV message integrity, SV output accuracy, merge unit dispersion of timing and punctuality accuracy measurement;
Supports graphical display of SCD files, graphically displays IED device interconnections and connections of virtual terminal loops; with SCD file comparison function, and generates comparison reports;
Real-time message receiver compared with the SCD file to achieve consistency check of the SCD file;
Support recorder and PCAP file off-line analyze function, with PCAP message playback function.
Support IRIG-B sending function, can be used as time source, with 6 channels separate fiber IRIG-B signal.
Support Polarity checking function, support use DC method to checking polarity of protection/metering core of electromagnetic current transformer and electronic current transformer;
