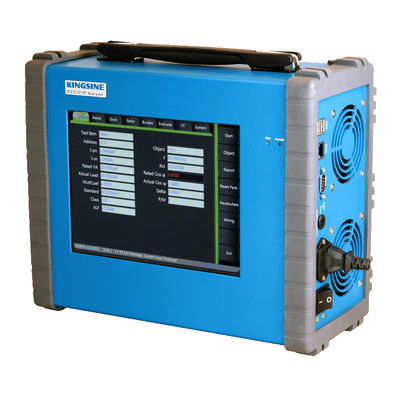

ANSI30 CT Analyzer KINGSINE KT210 CT Test Set Current Transformer Analyzer

large.img.alt
large.img.alt

Large Image :  ANSI30 CT Analyzer KINGSINE KT210 CT Test Set Current Transformer Analyzer

Product Details:
Place of Origin: China
Brand Name: KINGSINE
Certification: CE/ISO9001
Model Number: KT210
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: L/C,T/T
Supply Ability: 100 sets/month
Detailed Product Description
Frequency: 50 / 60 Hz Input Voltage: 176 Vac To 264 Vac @ 10A Max
Size (W X H X D): 360 X 140 X 325mm Weight: <8 Kg (without Accessories)
Name: CT Analyzer Primary Input Range: 0~30V
High Light:

ANSI30 CT Analyzer

,

KINGSINE CT Analyzer

,

KT210 CT Analyzer

ANSI30 CT Analyzer KINGSINE KT210 CT Test Set Current Transformer Analyzer


Discription of CT Test Set

Complete measurement function, it can test all type current transformer for secondary overload, secondary loop resistance, excitation characteristic, transient characteristic, ratio difference, angle difference and polarity. It can also test exact limit coefficient(ALF), device security coefficient(FS), secondary time constant(Ts), remanence coefficient(Kr), transient area coefficient(Ktd), inflexion voltage, current, level, saturation inductance, un-saturation inductance, 5% 10% error curve, of current transformer, hysteresis loop for current transformer, and evaluate test result according to defined standard.



Feature Of CT Parameters Test

Secondary burden measurement
Automatic demagnetization of the CT after the test
Small and lightweight (< 8 kg)
Short testing time due to fully automatic testing
High level of safety using patented variable frequency method (max. 120 V)
"Nameplate guesser" function for CTs with unknown data
PC control interface
QuickTest: Manual testing interface
Secondary burden measurement
Automatic demagnetization of the CT after the test
Small and lightweight (< 8 kg)



Specification Of CT Test Device

Voltage Measurement Input
Secondary Input Range 0~300V
Max Knee point 30KV
Secondary Input Accuracy ±0.1%
Primary Input Range 0~30V
Primary Input Accuracy ±0.1%

Output
Output Voltage 0 Vac to 120 Vac
Output Current 0 A to 5 A (15 A peak)
Output Power 0 VA to 450 VA (1500 VA peak)

Main Power Supply
Input Voltage 176 Vac to 264 Vac @ 10A Max
Permissible Input Voltage 120 Vdc to 370 Vdc @ 5A Max
Frequency 50 / 60 Hz
Permissible Frequency 47 Hz to 63 Hz
Connection Standard AC socket 60320

Physical Dimensions
Size (W x H x D) 360 x 140 x 325mm
Weight <8 kg (without accessories)

Environment Conditions
Operating Temperature -10°C up to + 55°C
Storage Temperature -25°C up to + 70°C
Humidity Relative humidity 5% up to 95% not condensing



Advantage Of Current Transformer Analyzer

Easy to operate CT / PT Analyzer,
120V / 15A Current Output,
9.7 inch touch screen operation,
IEC60044-1, IEC60044-6, IEC61869-2, ANSI30/45 standard
High stability for bushing CT testing;



F&A

Q: 1. How many countries have KINGSINE exported so far ?
A: KINGSINE brand products have been successfully served clients across more than 70 countries worldwide, inclusive of ABB, SIEMENS, SCHNEIDER, GE etc.



Q: 2. What is the lead time for delivery?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.

Q: 3. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.

Q: 4. What is the shipping method?
A: It could be shipped by air or by express courier (UPS,DHL,TNT,FEDEX, EMS, SF Express and ect) or even by sea.Please refer to us before placing orders.


Q: 5. What's your acceptable payment term?
A: T/T and L/C at sight are our normal acceptable payment terms.



Q: 6.How long is the warranty period?

A: We provide 3-years guarantee of free repair and life-long maintenance.
