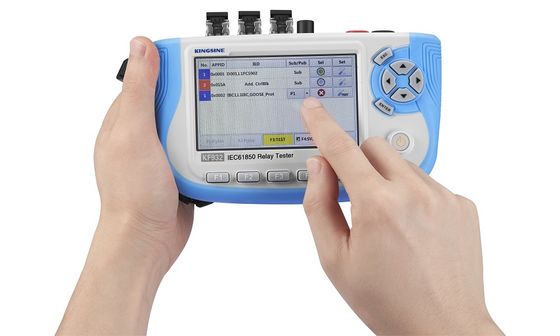

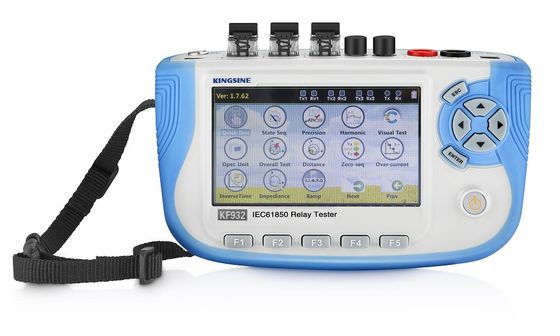

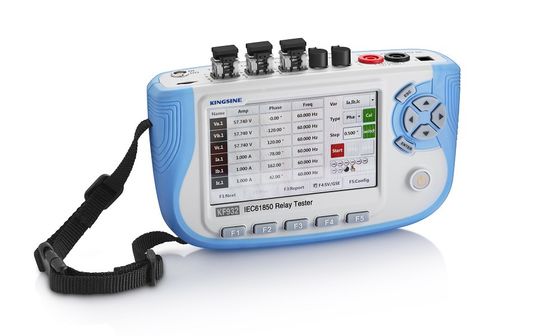

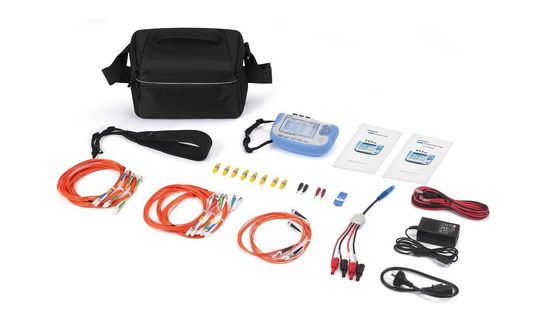

Handheld Digital KF932 IEC61850 Relay Test Set With Real Time Monitor
Description of KF932 IEC61850 Relay Test Set
light and powerful handheld digital relay tester for IEC61850 testing;
Applied to digital protection relay, Measure & control device, IEC61850 Complying IEDs ,Merge Unit and substation control system testing and detection;
Touch screen and keypad, to meet different using habits.
4400mAh large capacity lithium battery, continuous work for more than 10 hours.
Small size, easy to portable.
Feature Of KF932 IEC61850 Relay Test Set
KF932 IEC61850 Relay Tester is developed based on the intelligent substation related standards to analyze the SV, GOOSE, IRIG-B and IEEE1588 message, calculate the magnitude, phase and frequency of voltage and current, and real-time monitor of GOOSE virtual terminal.
● Receiving closed-loop testing of smart devices via SV, GOOSE message sending, subscription and publication of GOOSE messages;
● Phase detection function is achieved by analyzing and calculating different control blocks; Binary input and output of the hard contact can be completed on the intelligent operation box transmission delay and SOE on the accuracy of the measurement;
● SV and GOOSE exception statistics analysis and synchronization function to achieve the integration of the unit discrete, lost frame and absolute delay measurement.
● With small size, touch screen operation of the convenience and powerful measurement and analysis and testing capabilities, greatly to meet the intelligent substation operation, maintenance and debugging of the protection, monitoring and control devices, IEC61850 complying IEDs, the merger unit and the station control system Detection and commissioning requirements.
Specification Of KF932 IEC61850 Relay Test Set
|
Hard contact input / output communication interface |
|
|
Port number |
2 pairs |
|
Port Type |
Aviation socket to rubber terminal |
|
TF card slot interface |
|
|
Port number |
1 pc |
|
Application |
TF card for importing the whole station configuration file , recording documents, storing / exporting test reports and upgrading software. |
|
Analog input communication interface |
|
|
Port number |
1 pair |
4 Time signal
|
Time signal |
|
|
IRIG-B |
Time accuracy<1us typ |
|
IEC 61588 |
Time accuracy<1us typ |
5 Mechanical parameters
|
Mechanical parameters |
|
|
Display screen |
4.3’touch LCD screen |
|
Size |
176×100×58 mm |
|
Weight |
≦0.75kg |
6 Temperature range
|
Temperature range |
|
|
Altitude |
≤5000m |
|
Ambient temperature |
Normal operating temperature:-10～55℃ |
|
Relative humidity |
5％～95％ |
|
Atmospheric pressure |
60～106KPa |
Advantage Of KF932 IEC61850 Relay Test Set
|
Measurement |
Manual test |
Through the output of SV messages, GOOSE message simulation and sub subscription together with the binary input and output of hard contact to protect, monitor and control of the IED device test. |
|
State sequencer |
By outputting multiple consecutive states, for user-defined tests.For each individual state, the magnitude, phase, and frequency of the voltage and current can be set. Setting up the status of GOOSE virtual terminals to meet various test requirements. |
|
|
IED |
Measuring the transfer delay and SOE time accuracy between the GOOSE and the hard contact. |
|
|
Superimposed harmonic |
2~19 harmonics are superimposed on the output fundamental voltage and current to realize the test of IED devices such as protection, measurement and control. |
F&A
Q:1.How about your after-sales service?
A: We are original manufacturer and always give best and soonest after-sales service.our chief engineer Mr.Terry had travelled to different countries for providing onsite technology support,and our sales managers always provide after-sales service positively.
Q: 2. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
Q: 3. What is the shipping method?
A: It could be shipped by air or by express courier (UPS,DHL,TNT,FEDEX, EMS, SF Express and ect) or even by sea.Please refer to us before placing orders.
About US:
Kingsine Electric Automation Co., Ltd. has been specializing in Research & Development, production and sales of Electric Testing & Measurement Instruments since 1999 foundation who is also honored as the High-tech enterprise certification and Software enterprise certificate recognized by China authority. With about high development speed every year, Kingsine win the Chinese top manufacturer for electric test equipmentin the domestic relay-tester market.China Guodian Corporation,State Grid Corporation of China,China Southern Power Grid Company Limited and many other national companies use our products.
With ISO 9001:2008 certified Quality Management with R&D, Production and Marketing, now Kingsine's products are approved by over 70 countries worldwide in many industries of electrical power, metallurgy, petrochemical, railway mining and relative scientific research institution as well as same trade of meter and protective relays factories, and getting the warm welcome from the world large Electricity & Energy Exhibition such as POWER-GEN International of USA, Middle East Electricity of Dubai, HANNOVER MESSE of Germany and FIEE Electrical of Brazil. Its Relay-Tester is suitable working for many world famous relay protection devices such as ABB, SIMENS, ALSTOM, TOSHIBA, SCHNEIDER, AREVA, SEL, GE etc and Kingsine also give the full service with his distribution net from many countries partners of European, Asia and Middle East.
