Three Phase Standard Sources And Calibrator 0.05 Class KS833

large.img.alt
large.img.alt

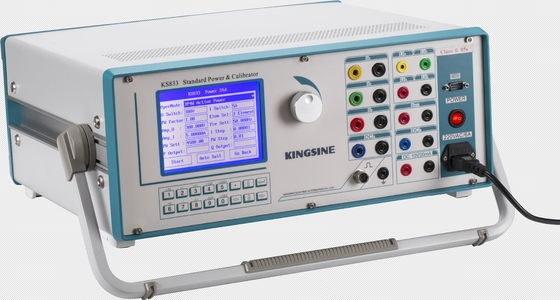

Large Image :  Three Phase Standard Sources And Calibrator 0.05 Class KS833

Product Details:
Place of Origin: CHINA
Brand Name: KINGSINE
Certification: CE/ISO9001
Model Number: KS833
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiation
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/month
Detailed Product Description
Warranty: 3 Years Voltage Range: 100V, 220V, 380V
Current Range: 0.05~24A Distortion Of AC Outputs: <0.2% (non-capacitance Load)
High Light:

380V Standard Sources

,

220V Standard Sources

,

KS833





The KS833 series were being sold well in the U.S.,Argentina,South Korea and South Africa etc in 2021

Description of Standard Source KS833

Kingsine’s standard source product KS833 applied to Grid Corporation of measurement testing centers, power companies and power plants measured ministries, national institutions at all levels of measurement tests, also applies to the railway, petroleum, chemical industry, large-scale industrial and mining enterprises and the meter manufacturers, etc.

Open protocol for software self-programming.AC voltage sources: 3x900V@3x25VA, accuracy 0.05%,AC current sources: 3x30A@3x25VA, accuracy 0.05%.
3-phase Harmonic Standard Power: 2-31x orders with 0.1 % accuracy.
DC voltage sources: 825V@20W max, accuracy 0.05%,DC current sources: 30A@25W max, accuracy 0.05%
Analog/Digital instruments Calibration,Transducer and Energy meter calibration
3-years guarantee of free repair, and life-long maintenance, Free software update and training



Feature Of Standard Source KS833

Output & Measuring AC Voltage
Available Ranges 10V, 30V, 100V, 300V, 750V, auto-shift
Adjustment range 0~120%Rg
Adjustment fineness Range x 0.01%
Resolution Range x 0.01%
Accuracy 0.05%Rg
Stability 0.01% / 1min
Output & Measuring AC Current
Available Ranges 100mA, 1A, 5A, 10A, 25A; auto-shift
Adjustment range 0~120%Rg
Adjustment fineness Range x 0.01%
Resolution Range x 0.01%
Accuracy 0.05%Rg
Stability 0.01% / 1min
Output & Measuring AC Power
Adjustment fineness Range x 0.01%
Resolution Range x 0.01%
Accuracy 0.05%Rg (Factor>0.5)
Stability 0.01% / 1min
Output & Measuring AC Frequency
Frequency Range 45.000~65.000Hz
Adjustment fineness 0.001Hz
Accuracy 0.01%Rd
Output & Measuring AC Phase Angle
Phase Angle Range 0.00º~359.99º
Adjustment fineness 0.01º
Resolution 0.01
Accuracy 0.05º



Specification Of Analog/Digital instruments Calibration KS833



● Apply to the power sector, measurement department, quality inspection departments, research institutions, universities, etc.

● Applies to other production and research & development enterprise of energy meter, power distribution terminals, power management, load control, power quality, and medium voltage reactive power compensation.

● Open communications protocol to facilitate the secondary development for RTU / FTU / Power Management Terminal / Public variable measuring the terminal factory automatic verification.

● Calibrating a variety Analog Digital meter of direct U/I instruments & frequency with DC/AC 0.05% accuracy and the corresponding class digital multimeter for quality inspection, measurement and instrumentation maintenance, parts detection

● The calibrating types of test instrument including AC-DC voltage meter, ammeter, single / three phase active and reactive power meter, phase meter, power factor meter, frequency tables, synchronized tables, etc.

● The calibrating transducer types are AC-DC voltage transducer, current transducer, single / three phase active and reactive power transmitter, phase transmitter, power factor transducer, frequency transducer, etc.

● The calibrating energy meter types as electronic and sensing single-phase, three-phase active and reactive energy meter.

● Storage capacity up to 1,000 calibrated meters' data.

● 5.4” TFT LCD display, touch pad and rotary encoder control, PC control software also available



Advantage Of KS833 Compatible with the relevant national Standards



KS833 Standard Source is fully compatible with the relevant national Standards:

● JJG124-93 Verification Regulation of Ammeter, Voltmeter & Ohmmeter

● GB/T767-1999 Direct Acting Indicating Analogue Electrical Measuring Instruments & Accessories

● SD110-83 Inspection Regulation of Electrical Indicating & Measuring Instruments

● JJG440-86 Verification Regulation of Frequency Single Phase Meters

● JJG603-89 Verification Regulation of Pointer Frequency Meters

● JJG 307 -1998 Verification Regulation of Verification Equipment for AC Electrical Energy Meter

● JJG596-1999 Verification Regulation of Electrical Energy Meters

● GB/T 11150-2001 National Standard of Electrical Energy Meter Inspection Instruments

● JJG (Power) 01-94 Verification Regulation of Electrical Measuring Transducers





  KS803 KS813 KS823 KS833
AC Standard Source
Harmonic Source
Power Standard Source
DC Standard Source
Instrument Calibration
Energy Meter Calibration
Transducer Calibration

√:With the corresponding function modules;

○:Without the corresponding function modules







F&A

Q:1.How about your after-sales service?

A: We are original manufacturer and always give best and soonest after-sales service.our chief engineer Mr.Terry had travelled to different countries for providing onsite technology support,and our sales managers always provide after-sales service positively.

Q: 2. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
Q: 3.Why do we offer a three-year warranty?

A:First of all,The quality goal of KINGSINE company is that no quality failure occurs within five years of customer use.

The second,KINGSINE has been engaged in the overseas market for 12 years.Up to now,about 3000 sets of equipment have been operating overseas,and the annual failure rate is less than 1%.

The third,Our products are modular design,If there is a fault,it can be remote fault diagnosis,and then express products’ parts to customer for quick repair.









About Us:

Kingsine Electric Automation Co., Ltd. has been specializing in Research & Development, production and sales of Electric Testing & Measurement Instruments since 1999 foundation who is also honored as the High-tech enterprise certification and Software enterprise certificate recognized by China authority. With about high development speed every year, Kingsine win the Chinese top manufacturer for electric test equipmentin the domestic relay-tester market.China Guodian Corporation,State Grid Corporation of China,China Southern Power Grid Company Limited and many other national companies use our products.



With ISO 9001:2008 certified Quality Management with R&D, Production and Marketing, now Kingsine's products are approved by over 70 countries worldwide in many industries of electrical power, metallurgy, petrochemical, railway mining and relative scientific research institution as well as same trade of meter and protective relays factories, and getting the warm welcome from the world large Electricity & Energy Exhibition such as POWER-GEN International of USA, Middle East Electricity of Dubai, HANNOVER MESSE of Germany and FIEE Electrical of Brazil. Its Relay-Tester is suitable working for many world famous relay protection devices such as ABB, SIMENS, ALSTOM, TOSHIBA, SCHNEIDER, AREVA, SEL, GE etc and Kingsine also give the full service with his distribution net from many countries partners of European, Asia and Middle East.

Three Phase Standard Sources And Calibrator 0.05 Class KS833 0Three Phase Standard Sources And Calibrator 0.05 Class KS833 1
