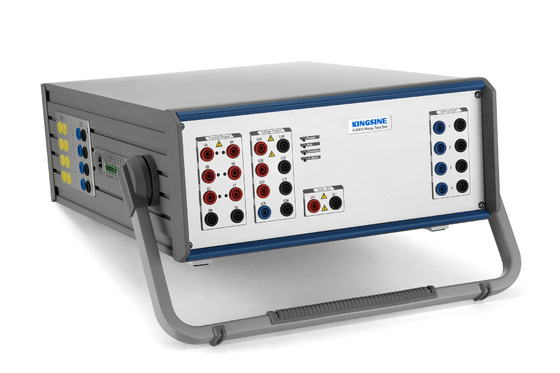

K3063i Powerful 6 Phase Protection Relay Testing Relay Test Set 6x35A



Description of K3063i Universal Protection Relay Test Set

powerful 6-phase relay test set and commissioning tool;

Power & Accuracy in one single PACKAGE, 6x35A, 4x310V analog outputs;

The ever-expanding test library templates

Feature Of K3063i Universal Protection Relay Test Set

● 10 Channels (6x35A & 4x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.

● Variable battery simulator, DC 0-350V, 140Watts max.

● Transient play back up to 3KHz

● Fully function KRT software testing modules

● Graphical test modules and templates for testing of various relays

● Quick relay testing facility in Manual mode

● Shot/Search/Check, Point & Click testing

● RIO/XRIO import & export facility

● Switch on to fault test(SOTF)

● Power system model for dynamic testing

● Online Vector display

● Automatic test results assume

● Automatic test report creation

● Inbuilt GPS sync end-to-end testing

● Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection

● 3-Years guarantee of free repair and life-long maintenance

● Lightweight, <19.5Kg

● Free software upgrade

Powerful 6 Phase Protection Relay Testing Relay Test Set 6x35A 0







Specification Of K3063i Universal Protection Relay Test Set



Binary Input
Quantity 8pairs
Type wet/dry, up to 300Vdc max input
Time resolution 10us
Sampling Rate 10KHz
Debounce time 0~25ms (Software Controlled)
Time range Infinite
Time errors ±1ms @ ≤1s, ±0.1% @ >1s
Galvanic isolation Isolated each pairs
Binary Output (Relay Type)
Quantity 4pairs
Type Potential free relay contacts, software controlled
Break Capacity AC Vmax: 400Vac / Imax:8A / Pmax:2500VA
Break Capacity DC Vmax: 300Vdc / Imax:5A / Pmax:150W
Binary Output (Semiconductor Type)
Quantity 4pairs
Type: Open-collector, Combination type male
Break Capacity DC 5~15Vdc / 5mA, 10mA max
Response time: 100us
Synchronization
Synchronization Mode  GPS, SMA type antenna connector




Advantage Of K3063i Universal Protection Relay Test Set




Energy meter calibration (Mechanical & Electronic meters)



Type of relays can be tested:

Items ANSI® No.
Distance protection relay 21
Synchronising or synchronism-check relays 25
Undervoltage relays 27
Directional Power relays 32
Undercurrent or underpower relays 37
Negative sequence overcurrent relays 46
Overcurrent/ground fault relays 50
Inverse time overcurrent/ground fault relays 51
Power factor relays 55
Overvoltage relays 59
Voltage or current balance relays 60
Directional overcurrent relays 67
Directional ground fault relays 67N
DC overcurrent relays 76
Phase-angle measuring or out-of-step protection relays 78
Automatic reclosing devices 79
Frequency relays 81
Motor overload protection relays 86
Differential protection relays 87
Directional voltage relays 91
Voltage and power directional relays 92
Tripping relays 94
Voltage regulating relays
Overimpedance relays, Z>
Underimpedance relays, Z
Time-delay relays



Ordering instruction:



Model Current Outputs Voltage Outputs Optional Function
K3066i 6×35A @ 450VA max
3×70A @ 850VA max
7×310V @ 90VA max ● Energy Meter Cal.
K3063i 6×35A @ 450VA max
3×70A @ 850VA max
4×310V @ 124VA max
K3030i 3×35A @ 450VA max 4×310V @ 124VA max



F&A

Q:1.Why do we offer a three-year warranty?

A:First of all,The quality goal of KINGSINE company is that no quality failure occurs within five years of customer use.

The second,KINGSINE has been engaged in the overseas market for 12 years.Up to now,about 3000 sets of equipment have been operating overseas,and the annual failure rate is less than 1%.

The third,Our products are modular design,If there is a fault,it can be remote fault diagnosis,and then express products’ parts to customer for quick repair.



Q: 2. What is your advantages?

A: KINGSINE have been specializing in electric power testing & measurement for over 21 years. All-in-One design concept, high power burden & high output accuracy but with high cost-efficiency, 3-years guarantee of free repair and life-long maintenance.



Q:3.What is the application range of the product?

A:KINGSINE brand Relay Test Sets are featured with fully function of state sequencer,Harmonic,recloser test , Line differential, Distance,Overcurrent, Zero sequencer, Ramping, Power direction, Differential rate, Differential Harmonic, Synchronize, Busbar differential, Frequency test, Dv/Df test, etc.



About US:

Kingsine Electric Automation Co., Ltd. has been specializing in Research & Development, production and sales of Electric Testing & Measurement Instruments since 1999 foundation who is also honored as the High-tech enterprise certification and Software enterprise certificate recognized by China authority. With about high development speed every year, Kingsine win the Chinese top manufacturer for electric test equipmentin the domestic relay-tester market.China Guodian Corporation,State Grid Corporation of China,China Southern Power Grid Company Limited and many other national companies use our products.

With ISO 9001:2008 certified Quality Management with R&D, Production and Marketing, now Kingsine's products are approved by over 70 countries worldwide in many industries of electrical power, metallurgy, petrochemical, railway mining and relative scientific research institution as well as same trade of meter and protective relays factories, and getting the warm welcome from the world large Electricity & Energy Exhibition such as POWER-GEN International of USA, Middle East Electricity of Dubai, HANNOVER MESSE of Germany and FIEE Electrical of Brazil. Its Relay-Tester is suitable working for many world famous relay protection devices such as ABB, SIMENS, ALSTOM, TOSHIBA, SCHNEIDER, AREVA, SEL, GE etc and Kingsine also give the full service with his distribution net from many countries partners of European, Asia and Middle East.
