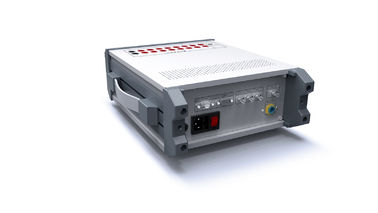

Optical Digital Protection Relay , 220V / 50Hz / 850nm IEC61850

Optical Digital Protection Relay , 220V / 50Hz / 850nm IEC61850
Optical Digital Protection Relay , 220V / 50Hz / 850nm IEC61850 Optical Digital Protection Relay , 220V / 50Hz / 850nm IEC61850

Large Image :  Optical Digital Protection Relay , 220V / 50Hz / 850nm IEC61850

Product Details:

Place of Origin: China
Brand Name: Kingsine
Certification: ISO9001,CE
Model Number: KF900

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Delivery Time: 15 working days
Payment Terms: T/T in advance ,L/C
Supply Ability: 50 sets/ month
Detailed Product Description
High Light:

Relay Test System

,

Digital Relay Test



Optical Digital Protection Relay , 220V / 50Hz / 850nm IEC61850



1.Provide fully test solutions to various IEC61850 relay protective devices & automation devices for all power users.
2.Provide 4 pairs of 100Base-FX optical interface, 3(FT3)ST optical out, support IEC61850-9-1, IEC61850-9-2, IEC6004-7/8(FT3)and Goose optical digital message output test
3.Conventional analog binary input procession is compatible, providing 8 pairs analog binary input & 4 pairs binary output
4.Provide 1 RG-B/PPS interface, can access RG-B or PPS time signal which synchronize with GPS synchronous clock.





Technical Parameter



Binary Input





No.



8 pairs

Input Characteristic

0V~250V(DC) or no contanct (identified automatically)

sample Frequency

10kHz

Time Resolution

100μs

Max measuring time

1.50×105 s

Timing Error

  ±1ms (0.001s~1s)

±0.1%(1s~1.50×105 s)

Set Range of Debounce Time( set by software)

  0ms~25ms

Electric Isolation

8 pairs input electric isolation

Threshold Impedance Parameter(no contacts)

5 kΩ…13kΩ



 Sychronization Interface (GPS)





KSGGPS satellite sychronization device)is optional;

B code (RS-485) sychronization interface

Binary Output



No.

4 pairs

Type

no contants and no pole,  controlled by software

AC capacity

Vmax:250V (DC)/Imax:3A

 DC  capacity

 Vmax:250V (DC)/Imax:1A

Power Supply



Rated Voltage

220V(AC)

Allowed Voltage

100V~240V(AC)

Rated Frequency

50Hz

Allowed Frequency

40~60Hz

Current

1A (max.)

FT3 Interface



Using Standard

IEC60044-7/8

Terminal NO.

3 pairs

Interface Type

ST

Wave Length

850nm

Optical Fiber Type

62.5/125μm, multi-mode

Transmission Distance

1km

Ethernet Communication Interface



Type

10/100 Base-TX(10/100 Mbit,  twisted pair/ auto crossed)

Port No.

1 pairs

Interface Type

RJ45

Cable Type

5 pairs twisted pair

State Indication

LED green(light):effective connection

LED yellow(flicker): data communication

Fiber Optic Communication Interface



Type

100Base-FX(100Mbit, fiber optic, full-duplex)

Port No.

4 pairs

Interface Type

SC

Cable Type

62.5/125μm(multimode fiber orange)

Wave Length

1300nm

Transmission Distance

> 1Km

State Indication

SPD green(light):effective connection

Link/AcT yellow(flicker): data communication

Operational Environment



Operational Temperature

-10℃~+50℃

Storage& Transportation Temperature

-20℃~+70℃

Humidity

5~90% relative humidity,  no condensation



Optical Digital Protection Relay , 220V / 50Hz / 850nm IEC61850 0



Optical Digital Protection Relay , 220V / 50Hz / 850nm IEC61850 1
