| Input Voltage: | 176 Vac To 264 Vac @ 10A Max | Permissible Input Voltage: | 120 Vdc To 370 Vdc @ 5A Max |
|---|---|---|---|
| Frequency: | 50 / 60 Hz | Permissible Frequency: | 47 Hz To 63 Hz |
| Size (W X H X D): | 360 X 140 X 325mm | Weight: | <8 Kg (without Accessories) |
| High Light: | Automatic CT PT Analyzer,Portable CT PT Analyzer,LCD Display CT PT Analyzer |
||

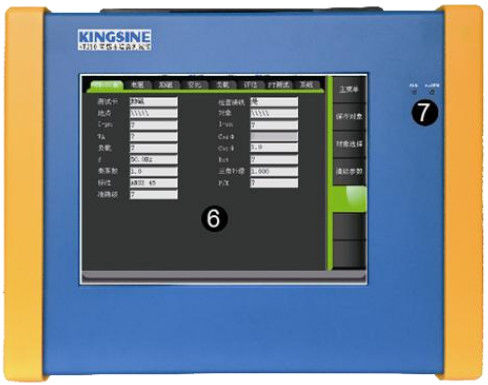

KT210 TFT LCD Display Portable Automatic CT PT Analyzer
Description Of CT/PT Analyzer
It can test all type current transformer for secondary overload, secondary loop resistance, excitation characteristic, transient characteristic, ratio difference, angle difference and polarity. It can also test exact limit coefficient(ALF), device security coefficient(FS), secondary time constant(Ts), remanence coefficient(Kr), transient area coefficient(Ktd), inflexion voltage, current, level, saturation inductance, un-saturation inductance, 5% 10% error curve, of current transformer, hysteresis loop for current transformer, and evaluate test result according to defined standard.
Feature Of HV Analyzer
| ● | Adopt 9.7 inch touch screen TFT LCD display with clear and beautiful software interface design, user can operate easily. |
| ● | AC/DC current input for wide range only, satisfy all power supply standard requested. |
| ● | Easy to operate, measure quickly, all test can be done automatically based on the same connection line type except overload impedance measurement. |
| ● | Adopt low voltage & variable frequency measurement method, it can test knee point voltage up to 30kV transformer as output max voltage only is 120V and max peak value current is 15A, high security. |
| ● | Portable design with light weight of 8kg, suitable for field test of electric power system, manufacturing factory of current transformer or laboratory to use. |
| ● | High measurement accuracy, resistance accuracy is 0.1%+1mΩ, phase accuracy±0.05 degree, variable accuracy is ±0.1% (1-5000 ), variable accuracy is ±0.2%(5000-10000). |
Specification Of PT/CT Comprehensive Tester
| Ratio Accuracy | |
| Ratio 1 - 5000 | 0.03 % (typical) / 0.1 % (guaranteed) |
| Ratio 5000 - 10000 | 0.05 % (typical) / 0.2 % (guaranteed) |
| Phase Displacement | |
| Resolution | 0.01 min |
| Accuracy | 1 min (typical) / 3 min (guaranteed) |
| Winding Resistance | |
| Range | 0.1 - 100 Ω |
| Resolution | 1 mΩ |
| Accuracy | 0.05 % + 1 mΩ (typical) (guaranteed) 0.1 % + 1 mΩ (guaranteed) |
| Load Measurement | |
| Range | 0~300VA |
| Resolution | 0.01VA |
| Voltage Measurement Input | |
| Secondary Input Range | 0~300V |
| Max Knee point | 30KV |
| Secondary Input Accuracy | ±0.1% |
| Primary Input Range | 0~30V |
| Primary Input Accuracy | ±0.1% |
| Output | |
| Output Voltage | 0 Vac to 120 Vac |
| Output Current | 0 A to 5 A (15 A peak) |
| Output Power | 0 VA to 450 VA (1500 VA peak) |
Advantage Of CT/PT Analyzer
Easy to operate CT / PT Analyzer,
120V / 15A Current Output,
9.7 inch touch screen operation,
IEC60044-1, IEC60044-6, IEC61869-2, ANSI30/45 standard
High stability for bushing CT testing
FAQ
Q: What is your technical advantages?
A: Portable design with light weight of 8kg, suitable for field test of electric power system, manufacturing factory of current transformer or laboratory to use.High measurement accuracy, resistance accuracy is 0.1%+1mΩ, phase accuracy±0.05 degree, variable accuracy is ±0.1% (1-5000 ), variable accuracy is ±0.2%(5000-10000).
Q: How long is the warranty period?
A: 3-Years guarantee of free repair and life-long maintenance
