KF932 IEC61850 Relay Testing Kit Applied to Digital Protection Relay

China KF932 IEC61850 Relay Testing Kit Applied to Digital Protection Relay supplier
KF932 IEC61850 Relay Testing Kit Applied to Digital Protection Relay supplier KF932 IEC61850 Relay Testing Kit Applied to Digital Protection Relay supplier KF932 IEC61850 Relay Testing Kit Applied to Digital Protection Relay supplier

Large Image :  KF932 IEC61850 Relay Testing Kit Applied to Digital Protection Relay

Product Details:

Place of Origin: China
Brand Name: Kingsine
Certification: ISO9001,CE
Model Number: KF932

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Delivery Time: 15 working days
Payment Terms: T/T in advance ,L/C
Supply Ability: 50 sets/ month
Contact Now
Detailed Product Description
Fiber Ethernet Port: IEC61850 Color: Blank
Material: Plastic Cddd: 444

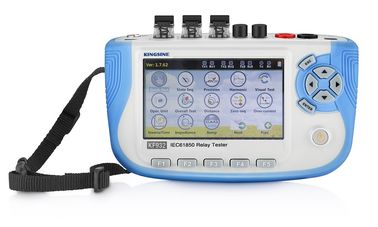

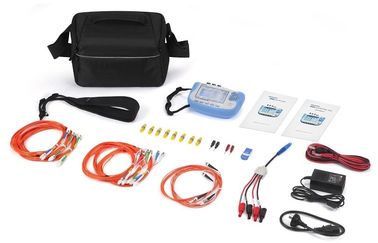

KF932 IEC61850 Relay Tester Applied to Digital Protection Relay





Quick Detail:



1.Comply IEC61850 standard, Applied to digital protection relay, Measure&control device, intelligent



terminal ,Merge Unit and substation control system testing and detection.

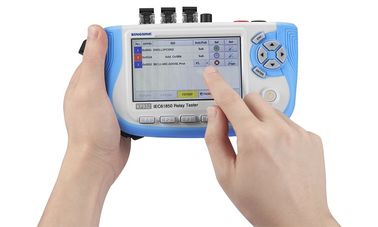

2.Touch screen and keypad, to meet different using habits.



3.4400mAh large capacity lithium battery, continuous work for more than 10 hours.



4.Small size, easy to portable.





Specification:



KF932 IEC61850 Relay Tester is developped based on the intelligent substation related standards to



analyze the SV, GOOSE, B code and IEEE1588 message, calculate the magnitude, phase and frequency



of voltage and current, and real-time monitor of GOOSE virtual terminal.



Receiving closed-loop testing of smart devices via SV, GOOSE message sending, subscription and



publication of GOOSE messages; Phase detection function is achieved by analyzing and calculating



different control blocks; The use of binary input and output of the hard contact can be completed on the



intelligent operation box transmission delay and SOE on the accuracy of the measurement; SV and



GOOSE exception statistics analysis and synchronization function to achieve the integration of the unit



discrete, lost frame and absolute delay measurement.





With small size, touch the performance of the operation of the convenience and powerful measurement and



analysis and testing capabilities, KF932 Handheld Digital Relay Test Set is greatly to meet the intelligent



substation operation, maintenance and debugging of the protection, monitoring and control devices,



intelligent terminals, the merger unit and the station control system Detection and commissioning



requirements.





Technical Features





 No.



 Analysis Item  Analysis content

 SMV Measurement and



 analysis

 Interception



 Automatically intercepts SV messages from 3



 optical ports and 1 optical interface





 Effective value



 Real-time display channel of amplitude, phase



 and frequency



 Oscillography



 Real-time display of waveforms



   Sequence component



 Real-time display the positive sequence V1,



 negative sequence V2, zero positive sequence



 V0 of magnitude and phase



 Power



 Real-time display of ABC phase and three-



 phase active, reactive power, apparent power



 and power factor



 Vectorgraph



 The magnitude and phase relationship of the



 three-phase voltage and current are displayed



 in vector form



 Harmonic



 Real-time display 0 ~ 19 harmonics, and show



 the harmonic contentin the form of histograms



 Message parameter



 Real-time display of the current message



 parameters, the original message and parsed



 message



 Anormal message



 The number of anormal message



 Discrete Value



 The number of messages in each discrete



 GOOSE analytical and



 analysis

 Interception



 Automatically intercepting GOOSE messages



 from 3 optical ports



 Virtual terminal



 Real-time display of the status of the virtual



 terminal, support a variety of display.



 Automatically record the reset time of the virtual



 terminal.



 Message



 Real-time display of the current message value



 and the original message value.



 Anormal message



 The number of anormal message



 Others  Recorder



 Record and analyze off-line messages



 Measurement of flow



 andoptical power



 Real-time statistics of network traffic size and



 received optical power



 PCAP message



 analysis



 Offline analysis of messages stored in PCAP



 format



 Polarity test



 Test the polarity of the transformer



 Measurement  Manual test



 Through the output of SV messages, GOOSE



 message simulation andsubscription together



 with the binary input and output of hard contact



 to protect, monitor and control of the IED



 device test.



 State sequencer



 By outputting multiple consecutive states, for



 user-defined tests.Foreach individual state, the



 magnitude, phase, and frequency of the voltage



 and current can be set. Setting up the status of



 GOOSE virtual terminals to meet various test



 requirements.



 IED



 Measuring the transfering delay and SOE time



 accuracybetween the GOOSE and the hard



 contact.



 Superimposed



 harmonic



 2~19 harmonics are superimposed on the



 output fundamental voltage and current to



 realize the test of IED devices such as



 protection, measurement and control.







Technical Parameter



1 Power Supply





 Power Supply



 Battery



 Large capacity lithium battery



 Power Adapter



 Input:AC100~240V,50/60Hz,0.7A



 Output:DC15V,1.66A





2 Power consumption





 Power consumption



 Power consumption



 6W



 Working power supply



 Continuous work for morethan 10 hours





3 Communication port interface





 Optical Ethernet communication port



 Model



 100Base-FX (100M Full duplex optical fiber network)



 Port Type



 LC



 Wavelength



 1310nm



 Transmission distance



 ≧1km



 Application



 IEC61588 Times and other network messages







 Optical serial port communication interface



 Port number



 2 pcs



 Port Type



 ST



 Wavelength



 62.5/125μmMultimode fiber,Wavelength850nm



 Transmission distance



 ≧1km



 Application



 Receive/Send IEC60044-7/8(FT3),IRIG-B Timing



 signal transceiver







 Analog input communication interface



 Port number



 1 pair



 Port Type



 Rubber terminal







 Hard contact input / output communication interface



 Port number



 2 pairs



 Port Type



 Aviation socket to rubber terminal







 TF card slot interface



 Port number



 1 pcs



 Application



 TF card for importing the whole station configuration



 file , recording documents, storing / exporting test



 reports and upgrading software.







 Analog input communication interface



 Port number



 1 pair





4 Time signal





 Time signal



 IRIG-B



 Time accuracy<1us typ



 IEC 61588



 Time accuracy<1us typ





5 Mechanical parameters





 Mechanical parameters



 Display screen



 4.3’ LCD screen (with touch function)



 Size



 176×100×58 mm



 Weight



 ≤0.75kg





6 Temperature range





 Temperature range



 Altitude



 ≤5000m



 Ambient temperature



 Normal operating temperature:-10~55℃



 Storage and transportation:-25~85℃



 Relative humidity



 5%~95%



 Atmosphericpressure



 60~106KPa
