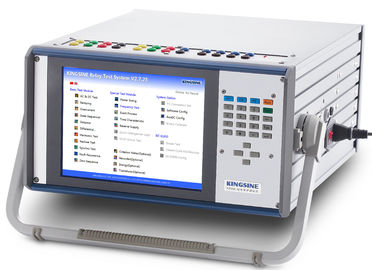

Lightweight Protective Relay Testing 9.7'' Screen K2030i Universal 3 Years Guarantee

Lightweight Protective Relay Testing 9.7'' Screen K2030i Universal 3 Years Guarantee
Lightweight Protective Relay Testing 9.7'' Screen K2030i Universal 3 Years Guarantee

Large Image :  Lightweight Protective Relay Testing 9.7'' Screen K2030i Universal 3 Years Guarantee

Product Details:
Place of Origin: China
Brand Name: KINGSINE
Certification: ISO9001,CE
Model Number: K2030i
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Delivery Time: 15 working days
Payment Terms: T/T in advance,L/C
Supply Ability: 50 sets/M
Detailed Product Description
Lightweight: 22KG Guarantee: 3 Years
Screen: Inbuilt 9.7” True Color TFT LCD With Touch Screen Output: 3x35A & 4x310V
High Light:

Protection Relay Test

,

protective relay testing

  • Universal Relay Test Applications
  • 3x35A & 4x310V independent high burden output channels
  • Lightweight, <20Kg
  • Inbuilt 9.7” True color TFT LCD with touch screen, numerical and shortcut keyboard, fully control with / without laptop
  • GPS / IRIG-B code synchronize end-to-end testing
  • Fully function KRT software testing modules
  • 3-Years guarantee of free repair and life-long maintenance
  • Free software upgrade
  • Optional function for energy calibration, 13 Channels Low-Level outputs etc



Ordering Ref.



Model Current Outputs Voltage Outputs
K2066 6×30A @ 450VA max / 3×60A @ 850VA max 7×130V @ 75VA max
K2066i 6×35A @ 450VA max / 3×70A @ 850VA max 7×310V @ 90VA max
K2063 6×30A @ 450VA max / 3×60A @ 850VA max 4×130V @ 75VA max
K2063i 6×35A @ 450VA max / 3×70A @ 850VA max 4×310V @ 124VA max
K2030 3×30A @ 450VA max 4×130V @ 75VA max
K2030i 3×35A @ 450VA max 4×310V @ 124VA max






Characteristic

  • 7 Channels (4V + 3I) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 20x harmonics.
  • Variable battery simulator, DC 0-300V, 120Watts max.
  • Graphical test modules and templates for testing of various relays
  • Quick relay testing facility in Manual mode
  • Shot/Search/Check, Point & Click testing
  • RIO/XRIO import & export facility
  • Switch on to fault test(SOTF)
  • Power system model for dynamic testing
  • Inbuilt GPS / IRIG-B sync end-to-end testing
  • Online Vector display
  • Automatic test results assume
  • Automatic test report creation
  • Self-protect for wrong power supply up to 450V AC/DC input.
  • Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection





Parameters

Voltage Outputs
Output Range & Power 4×310 V ac (L-N) 124 VA max each
2×620 V ac (L-L) 248 VA max each
3×310 V dc (L-N) 124 W max each
Accuracy

±2 mV @ 0.2~2 V ac

<0.07%Rd+0.03Rg Guar. @ 2~310V ac

<0.03%Rd+0.01Rg Typ. @ 2~310V ac

±10mV @ 0.5 V~5 V dc

±0.5% @ 5 V~310 V dc

Resolution 1mV
Distortion <0.1% Guar. / <0.05%Typ.
Current Outputs
Output Range & Power 3×35A ac (L-N) 450 VA max each
1×105A ac (6L-N) 1200 VA max
3×20A dc (L-N) 300W max each
Accuracy

±1 mA @ 0.2A~0.5A ac

<0.15%Rd+0.05Rg Guar. @ 0.5~35A ac

<0.05%Rd+0.02Rg Typ. @ 0.5~35A ac

±5mA @ 0.2 A~1 A dc

±0.5% @ 1 A~20 A dc

Resolution 1mA
Distortion <0.1% Guar. / <0.05%Typ.
Frequency Output
Range 5~1000 Hz, 3KHz transient output
Accuracy <1ppm @ 5~65 Hz
<10ppm @ 65~450 Hz
<20ppm @ 450~1000 Hz
Resolution 0.001 Hz
Phase Output
Range -360°~360°
Accuracy <0.05° Typ. / <0.1° Guar.
Resolution 0.001°
Aux. DC Voltage Source (Battery simulator)
Range 0~310V @ 124W max
Binary Input
Quantity 8pairs
Input Characteristics 0~400Vdc / Potential free
Time Resolution <0.1ms
Max. Measuring Time Infinite
Debounce Time 0~25ms
Binary Output
Quantity

4pairs NO relay contacts

(4paris semiconductors output optional)

Type Potential free, software controlled
Break Capacity

Vmax:300Vac Imax:4A Pmax:1000VA

Vmax:300Vdc Imax:4A Pmax:300W

Synchronization
Synchronization Mode  GPS, SMA type antenna connector
Harmonic
Superimposed Numbers 2~20times
Power supply & Environment
Nominal Input Voltage 110/220/230Vac preselection
Permissible Input Voltage

+/-20%, max 264Vac

Self-protect and alarm if input voltage out of range

Nominal Frequency 50/60Hz
Permissible Frequency 45Hz~65Hz
Power Consumption 1500 VA max
Connection Type Standard AC socket 60320
Operating Temperature -10℃~55℃
Storage Temperature -25℃~70℃
Humidity <95%RH, non-condensing
Others
PC Connection RJ45 Ethernet, 10/100/1000M
Grounding Terminal 4mm banana socket
Weight 20 Kg
Dimensions(W x D x H) 480×320×160(mm)




Additional Information (Optional Modules)

Low-Level outputs
Quantity 13 Channels, phoenix male type
Voltage Outputs Range AC 0~8V, DC 0~10V
Current Outputs Range Nominal 2mA, 10mA max transient
Output Power ≥0.5VA
Accuracy

(0.01~0.8 Vrms):<0.05% Typ. / <0.1% Guar.

(0.8~8 Vrms): <0.02% Typ. / <0.05% Guar.

Resolution 0.25mV
Energy Meter Calibration
Sensor Usage Mechanical meters / Electronic meters
Sensor Output High lever:>4.5V, Low level:<0.2V
Pulse Input 1 pulse input port
Pulse Range 500KHz pulse input Max.
Pulse Output 1 Transistor output
