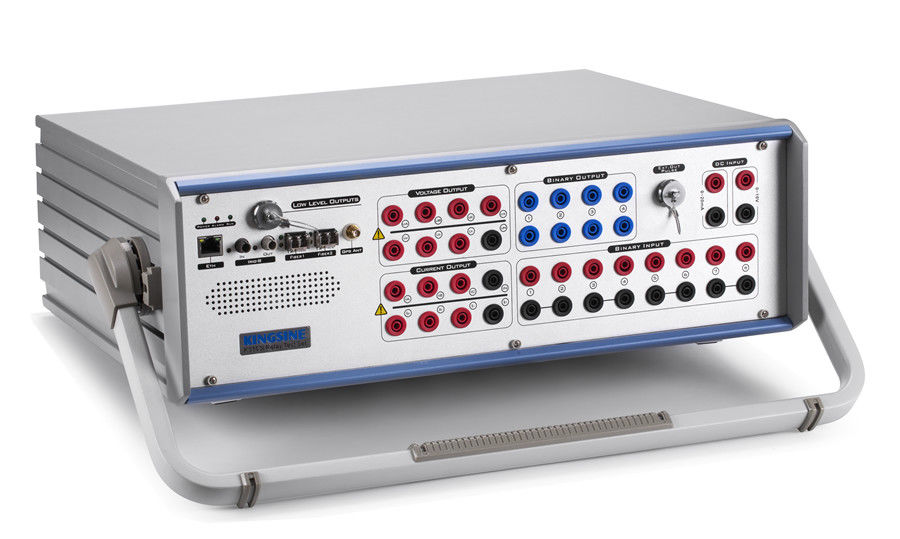

Variable Battery Simulator Protection Relay Testing With Online Vector Display

China Variable Battery Simulator Protection Relay Testing With Online Vector Display supplier

Large Image :  Variable Battery Simulator Protection Relay Testing With Online Vector Display

Product Details:

Place of Origin: China
Brand Name: KINGSINE
Certification: ISO9001,CE
Model Number: K3163i

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: T/T in advance,L/C
Supply Ability: 50 sets/M
Contact Now
Detailed Product Description
Output: 6x35A & 4x310V Guarantee: 3 Years

rief instructions for templates installation and usage method:



1. Decompressing the "template_V3.x.x.zip" file under the "template" folder.

The "template" folder under the root directory of KRT software.



Variable Battery Simulator Protection Relay Testing With Online Vector Display



2. Run KRT software, choose "Open" from "Test center" tab.



Variable Battery Simulator Protection Relay Testing With Online Vector Display



3. Find and open a template file (.KRT format) according the relay model which under testing.



Variable Battery Simulator Protection Relay Testing With Online Vector Display



4. Press "Test Object" button review the parameters of test object settings.



Variable Battery Simulator Protection Relay Testing With Online Vector DisplayVariable Battery Simulator Protection Relay Testing With Online Vector Display



5. If want import new parameters from a relay exported "XRIO" parameters settings, press the "Edit" button entry to the Test Object converter. then choose "Import" from "File" menu.



Variable Battery Simulator Protection Relay Testing With Online Vector Display



6. Select and load the relay exported file (*.xrio), into the "import setting" window, select the filter with the largest number can be imports.



Variable Battery Simulator Protection Relay Testing With Online Vector DisplayVariable Battery Simulator Protection Relay Testing With Online Vector Display



7. Waitting for the importing process to be complete.



Variable Battery Simulator Protection Relay Testing With Online Vector Display



8. Check the Auxiliry nodes of the "Test Object converter" to update any parameters needed of the testing.



Variable Battery Simulator Protection Relay Testing With Online Vector Display



9. After finish the imports, press "Save and Exit" back to "Test Object" window.



Variable Battery Simulator Protection Relay Testing With Online Vector Display



10. The newest import settings at the lower left side, no used old object can delete with "Del" button.



Variable Battery Simulator Protection Relay Testing With Online Vector Display



11. Save all import settings and exit to the test center.



Variable Battery Simulator Protection Relay Testing With Online Vector Display



12. Add test modules to performing the test.



Variable Battery Simulator Protection Relay Testing With Online Vector Display



13. Use "Save" button to save the test result to a "XML" format for review and future analysis and playback, or use the "report" button to generate a "RTF" printable report file. (Strong recommended use the "XML" format as the saved report, it can easily regenerate the "RTF" format for printing)



Variable Battery Simulator Protection Relay Testing With Online Vector Display





14. Use "Save" button at "Test center" area to saves currently object settings to customize template for future use purpose.



Variable Battery Simulator Protection Relay Testing With Online Vector Display
