Anti - Clipping Detect Transducer Calibration Tester K3163i Automatic Test Results Assume

China Anti - Clipping Detect Transducer Calibration Tester K3163i Automatic Test Results Assume supplier

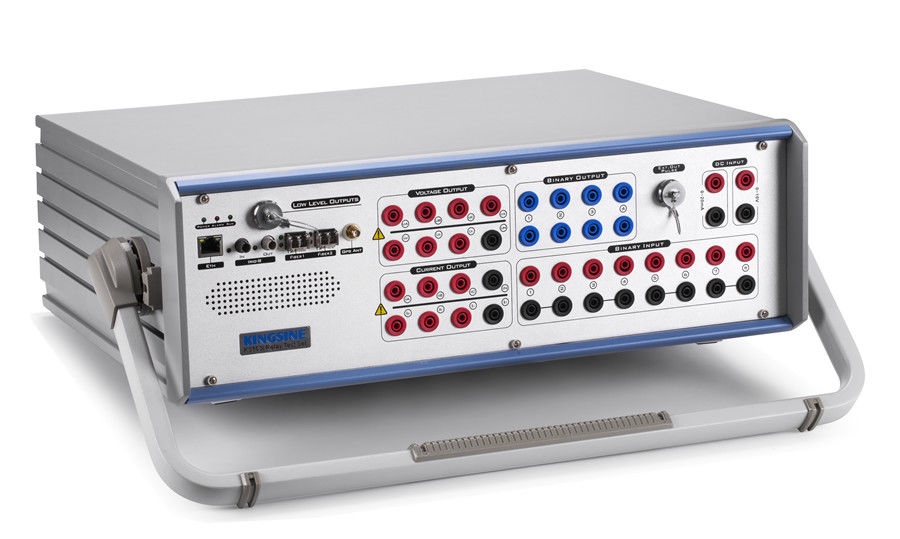

Large Image :  Anti - Clipping Detect Transducer Calibration Tester K3163i Automatic Test Results Assume

Product Details:

Place of Origin: China
Brand Name: KINGSINE
Certification: ISO9001,CE
Model Number: K3163i

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Delivery Time: 15 working days
Payment Terms: T/T in advance,L/C
Supply Ability: 50 sets/M
Contact Now
Detailed Product Description
Weight: 18 Kg Dimensions(W X D X H): 468×375×164(mm)

Able of what K31 series can test



Items ANSI® No.
IEC61850 numerical IEDs relay & merge unit
Distance protection relay 21
Synchronising or synchronism-check relays 25
Undervoltage relays 27
Directional Power relays 32
Undercurrent or underpower relays 37
Negative sequence overcurrent relays 46
Overcurrent/ground fault relays 50
Inverse time overcurrent/ground fault relays 51
Power factor relays 55
Overvoltage relays 59
Voltage or current balance relays 60
Directional overcurrent relays 67
Directional ground fault relays 67N
DC overcurrent relays 76
Phase-angle measuring or out-of-step protection relays 78
Automatic reclosing devices 79
Frequency relays 81
Motor overload protection relays 86
Differential protection relays 87
Directional voltage relays 91
Voltage and power directional relays 92
Tripping relays 94
Voltage regulating relays
Overimpedance relays, Z>
Underimpedance relays, Z
Time-delay relays



Characteristic

  • 10 Channels (6x32A & 4x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 20x harmonics.
  • Variable battery simulator, DC 0-350V, 140Watts max.
  • 13 Low-level channels outputs up to 8Vac/10Vdc max.
  • 0-600V / 0-5A AC/DC measurement in 0.1 class.
  • Graphical test modules and templates for testing of various relays
  • Quick relay testing facility in Manual mode
  • Shot/Search/Check, Point & Click testing
  • RIO/XRIO import & export facility
  • Switch on to fault test(SOTF)
  • Power system model for dynamic testing
  • Inbuilt GPS and IRIG-B sync end-to-end testing
  • Online Vector display
  • Automatic test results assume
  • Automatic test report creation
  • Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection



Anti - Clipping Detect Transducer Calibration Tester K3163i Automatic Test Results Assume



               Transducer module use for testing standard and multi-function single and three phase electric power transducer



Anti - Clipping Detect Transducer Calibration Tester K3163i Automatic Test Results Assume

Fig Transducer calibration software interface



Parameter Setting

Transducer property setting, select parameter/ test object, find below Fig               Anti - Clipping Detect Transducer Calibration Tester K3163i Automatic Test Results Assume



Fig Testing object

Enter into transducer property setting interface, set the relative setting according to the manufacturer parameter of tested transducer.

Anti - Clipping Detect Transducer Calibration Tester K3163i Automatic Test Results Assume

Fig Parameter setting

Anti - Clipping Detect Transducer Calibration Tester K3163i Automatic Test Results Assume

Fig Parameter setting



In the transducer testing view, enter setting selection, select measure quantity through the output type of tested transducer, test method can be selected freely by testing.

Test Procedure

1) Test Connection

                                                    Anti - Clipping Detect Transducer Calibration Tester K3163i Automatic Test Results Assume

Fig Testing connection

Above testing connection use power transducer of example for explanation, other type transducer connection will regard the manufacturer` s request as standard.

2) Testing Procedure

Follow above requested to completely Set testing parameter and connection, add test point, start to test, test device calculate error automatically according sampling value
