Durable SV Recorder Recording SMV / GOOSE Messages With ISO9001 / CE Approval

China Durable SV Recorder Recording SMV / GOOSE Messages With ISO9001 / CE Approval supplier
Durable SV Recorder Recording SMV / GOOSE Messages With ISO9001 / CE Approval supplier Durable SV Recorder Recording SMV / GOOSE Messages With ISO9001 / CE Approval supplier

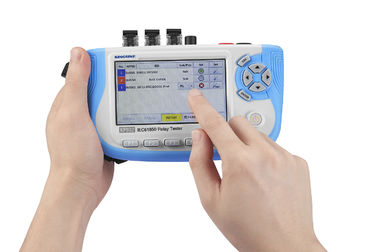

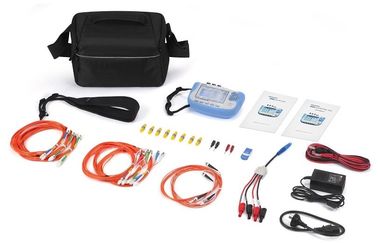

Large Image :  Durable SV Recorder Recording SMV / GOOSE Messages With ISO9001 / CE Approval

Product Details:

Place of Origin: China
Brand Name: Kingsine
Certification: ISO9001,CE
Model Number: KF932

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: T/T in advance ,L/C
Supply Ability: 50 sets/ month
Contact Now
Detailed Product Description

Record SMV messages and GOOSE messages from each optical port. After the recording is completed, the file in the pacp format will save the recorded file and analyze the currently recorded message.



In the main interface, press the "Record Wave" to enter the recording module page detection page, the detection page by the list shows SV and GOOSE control block, click "F1 refresh" to detect the current time access to SV and GOOSE message.



After the detection message is finished, click the iconDurable SV Recorder Recording SMV / GOOSE Messages With ISO9001 / CE Approval in the selection column. When the selected column icon is Durable SV Recorder Recording SMV / GOOSE Messages With ISO9001 / CE Approval, it indicates that the corresponding control block has been selected. After the recording is started, the message of the control block will be recorded. And 2 sets of SV and 4 groups of GOOSE control blocks can be selected at most.



Click "F2 start recording" to start recording, click "F3 stop" to stop recording (if not manually stop the recording, the message records 60M automatically stop recording).



Click "F5 Save" to display the message file name selection list, move the cursor to any file name, press "ENTER" key, then the recorded message to the file name saved to the TF card in the PACP file Folder.

Click"F4 Waveform Analysis", press the up and down arrow keys to move the cursor to the MAC address line, press "ENTER" key to select the control block to be analyzed, and then click "F1 OK" to enter the waveform analysis page.

Durable SV Recorder Recording SMV / GOOSE Messages With ISO9001 / CE Approval



Click "T1" icon (T1 background will show red), then the finger light wave chart to control the location of the red cursor 1;

Click"T2" icon (T2 background will show green), then the finger light wave chart to control the location of the green cursor 2;

After placing the "Cursor 1" and "Cursor 2" positions and click"Zoom in", expand the waveform between "Cursor 1" and "Cursor 2".



Click"all", then show the full wave waveform, you can view the waveform above.

The upper right corner of the screen "T1""T2" and "dT" represent the message number at the position where the cursor T1 is located, the message number of the cursor T2 and the number of message frames between the cursor T1 and T2, respectively.

When you click and select "Move cursor" or "flip", then press the direction of the left and right keys to control the movement of the cursor or flip

Click "F3 Waveform / Message" to switch to the original message display page. The "Original message display page" shows the message number on the left side. Press F1, F2 or the up and down keys to move. Each time you enter the "original message display page", the message number is not fixed, depending on the serial number of the cursor 1 or cursor 2, such as the position of the cursor 1 in the sequence number 100, click the "F3 waveform / When the packet enters the original message display page, the original packet is the packet number 100.

Click "F4 Analysis / Displacement" to display SV or GOOSE exception statistics.

Records the total number of frames, the number of frames lost, the number of clocks, the length of the message, and the dispersion.

Record the total number of frames for the GOOSE control block, the number of StNum frames, the lost number of StNum, the number of SqNum repeats, the lost number of SqNum,and the number of SqNum repeats
