| Brand Name: | KINGSINE |
| Model Number: | KF86 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T in advance ,L/C |
A 10kg kit, fully meet all the requirements for detection and debugging of IEC61850 IEDs, Merge Units, station control systems and traditional protection relays.
Overview:
8 optical ports complying IEC61850 sampling value and GOOSE;
6x130V voltage and 6x20A current high accuracy analog channels output;
Inbuilt GPS, support IRIG-B synchronization function;
9.7 inch touch screen, can be operated offline or with laptop;
Specifications
| AC current source | |
| Amplitude & Power |
6×20A @ 90VA max each; 3×40A @ 180VA max each; |
| Accuracy | ±1mA @ <0.5A <0.02%Rd+0.01Rg Typ. @ 0.5A~20A <0.05%Rd+0.02Rg Guar. @ 0.5A~20A |
| Range |
Range I: 2A Range II: 20A Automatic Range |
| DC Offset | <3mA Typ./ <10mA Guar |
| Resolution | 1mA |
| Distortion | <0.025%Typ. / <0.07% Guar. |
| Ascends/Descent response | <100us |
| DC Current source | |
| Amplitude & Power | 6×10A @ 50W max |
| Accuracy | ±5mA @ <1A ±0.2% @ ≥1A |
| Ascends/Descent response | <100us |
| AC voltage source | |
| Amplitude & Power | 6×130V @ 65VA max each |
| Accuracy | ±2mV @ <2V <0.015%Rd+0.005Rg Typ. @ 2~130V <0.04%Rd+0.01Rg Guar. @ 2~130V |
| Range |
Range I: 13V Range II: 130V Automatic Range |
| DC Offset | <10mV Typ./ <60mV Guar |
| Resolution | 1mV |
| Distortion | <0.015%Typ. / <0.05% Guar. |
| Ascends/Descent response | <100us |
| DC Voltage source | |
| Amplitude & Power |
6×150V @ 75W max 1×300V @ 150W max |
| Accuracy | ±10mV @ <5V ±0.2% @ ≥5V |
| Ascends/Descent response | <100us |
| Frequency & Phase Angle | |
| Frequency Range | DC ~ 1000Hz, 3000Hz transient |
| Frequency Accuracy | ±0.5ppm |
| Frequency Resolution | 0.001Hz |
| Phase Range | -360°~360° |
| Phase Accuracy | <0.02° Typ. / <0.1° Guar. 50/60Hz |
| Phase Resolution | 0.001° |

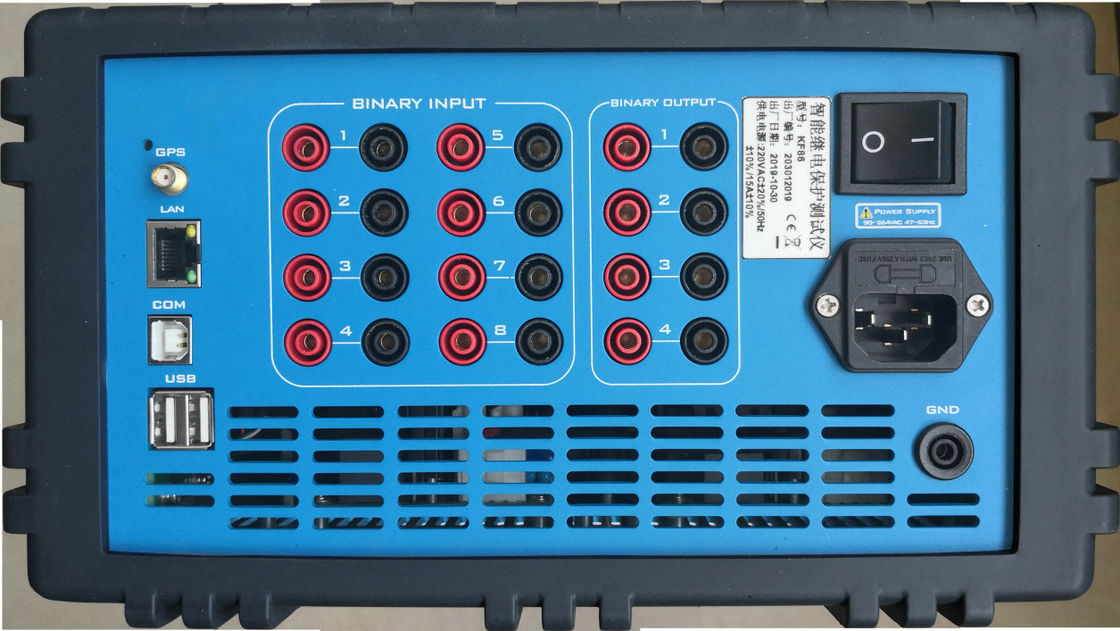

| Binary input | |
| Electrical isolation | 8 pairs of electrical isolated each |
| Input impedance | 5 kΩ…13kΩ(Empty contact) |
| Input feature |
0 V～300Vdc Or dry contact (Binary input turn over potential can be programmable) |
| Sampling Rate | 10kHz |
| Time resolution | 10us |
| Time measurement range | 0～105s |
| Time accuracy |
±1ms @ <1s ±0.1% @ ≥1s |
| Debounce time | 0~25ms (Software controlled) |
| Binary Output | |
| Quantity | 4 pairs, Fast speed |
| Type | Banana type 4.0mm |
| AC break capacity | Vmax:250V(AC)/ Imax:0.5A |
| DC break capacity | Vmax:250V(DC)/ Imax:0.5A |
| Electrical isolation | All pairs isolated |
| Synchronize port | |
| Satellite synchronization |
1 × SMA,Use for GPS antenna interface Support GPS and Beidou Satellite |
| Fiber IRIG-B | 2 × ST,1 for transmission, 1 for receiving |
| Electric IRIG-B |
1 × 6Pin 5.08mm phoenix terminal 1 for transmission, 1 for receiving |
| External trigger synchronization |
1 × 4Pin 5.08mm phoenix terminal external trigger input + external trigger output |
| Communication interface | |
| Ethernet | 1 × RJ45 ,10/100M |
| Serial port | 1 × RS232 |
| USB | 2 × USB2 |
| Weight & Size | |
| Size | 390mm×256mm×140mm |
| Weight | 10kg |
| Display | 9.7inch LCD, touch screen |
| Keypad | Number key + direction key |
| Power supply | |
| Nominal voltage | 220V/110V (AC) |
| Allowable voltage | 85V～265V (AC);127V～350V(DC) |
| Nominal Frequency | 50Hz |
| Allowable Frequency | 47～63Hz |
| Current | 10A max |
| Power Consumption | 1200VA max |
| Connection Type | Standard AC socket 60320 |
| Working environment | |
| Operating temperature | -10～+55 ℃ |
| Relative humidity | 5～95%,Non-condensation |
| Storage temperature | -20℃ ~ +70℃ |
| Atmospheric pressure | 80kPa～110 kPa(altitude 2000m or lower) |
