230VAc Intelligent IEC61850-9-2 Protection Relay Testing

230VAc Intelligent IEC61850-9-2 Protection Relay Testing
230VAc Intelligent IEC61850-9-2 Protection Relay Testing

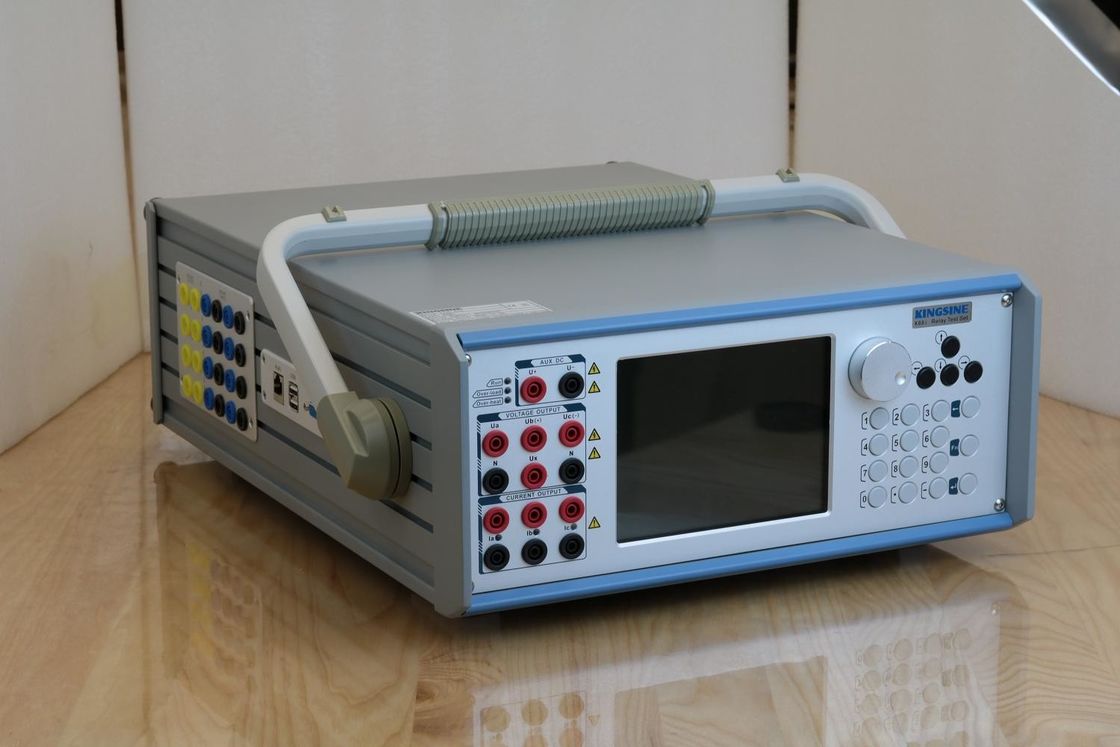

Large Image :  230VAc Intelligent IEC61850-9-2 Protection Relay Testing

Product Details:
Place of Origin: China
Brand Name: Kingsine
Certification: CE/ISO9001
Model Number: K68i
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: L/C,T/T
Supply Ability: 100 sets/month
Detailed Product Description
Nominal Input Voltage: 110V/220/230V Ac, Appointed, ±15% Nominal Frequency: 50/60Hz
Operating Temperature: -10℃~55℃ Humidity: <95%RH, Non-condensing
Weight: 20.5 Kg Dimensions(W X D X H): 360×450×140(mm)
High Light:

IEC 61850-9-2 Protection Relay Testing

,

IEC 61850 9 2 K68i

,

IEC 61850-9-2 Intelligent Relay Tester

230VAc Intelligent IEC61850-9-2 Protection Relay Testing



Description Of Secondary Current Injection Test Kit

Relay protection microcomputer test device plays a key role in operating electricity power systems reliably and safely. It is the testing device used in professional field of microcomputer protection, relay protection, excitation measurement, fault recorder.





Feature Of Secondary Current Injection Test Device

7 Channels (4x300V & 3x35A) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 20x harmonics.
Variable battery simulator, DC 0-300V, 120Watts max.
Quick relay testing facility in Manual mode
Switch on to fault test(SOTF)
GPS sync end-to-end testing
Online Vector display
Automatic test report creation
Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection





Specification Of Secondary Current Injection Test Set

Voltage Outputs
Output Range & Power 4×300 V ac (L-N) 120 VA max each
3×300 V dc (L-N) 120 W max each
Accuracy ±2mV @ <2V ac
<0.12%Rd+0.05Rg Typ. @ 2~300V ac
<0.07%Rd+0.03Rg Guar. @ 2~300V ac
±10mV @ <5V dc
±0.5% @ ≥5V dc
Voltage Range Range I : 30V
Range II : 300V
Automatic Range
DC Offset <10mV Typ./ <60mV Guar
Resolution 1mV
Distortion <0.015%Typ. / <0.05% Guar.
Current Outputs
Output Range & Power 3×35A ac (L-N) 450 VA max each
1×105A ac (3L-N) 1200 VA max
3×20A dc (L-N) 300W max each
Accuracy ±1mA @ <0.5A ac
<0.15%Rd+0.05Rg Typ. @ 0.5A~35A ac
<0.07%Rd+0.03Rg Guar. @ 0.5A~35A ac
±5mA @ <1A dc
±0.5% @ ≥1A dc
Current Range Range I: 3A
Range II: 35A
Automatic Range
DC Offset <3mA Typ./ <10mA Guar
Resolution 1mA
Distortion <0.025%Typ. / <0.07% Guar.
Frequency & Phase Angle
Frequency Range DC, 5~1000Hz
Frequency Accuracy ±1ppm @ 5~65Hz
±10ppm @ 65~450Hz
±20ppm @ 450~1000Hz
Frequency Resolution 0.001 Hz
Phase Range -360°~360°
Phase Accuracy <0.05° Typ. / <0.1° Guar. 50/60Hz
Phase Resolution 0.001°




Advantage Of Frequency Relay Test System



Advance software functions (optional for selections):

Differential test
State sequence test
Time characteristic test
Advance distance test
Synchronizer test
Fault recurrence (fault play back)





FAQ

Q: Can the relay protection tester show Distance relay test?

A: Yes.

Q: What is your technical advantages?

A: Our products with All-in-One design, weight < 17.5kg.High Power & Accuracy with 6x35A & 4x310V analog outputs and Complying IEC61850 Sampling Value & GOOSE.

Q: How long is the warranty period?

A: 3-Years guarantee of free repair and life-long maintenance.
