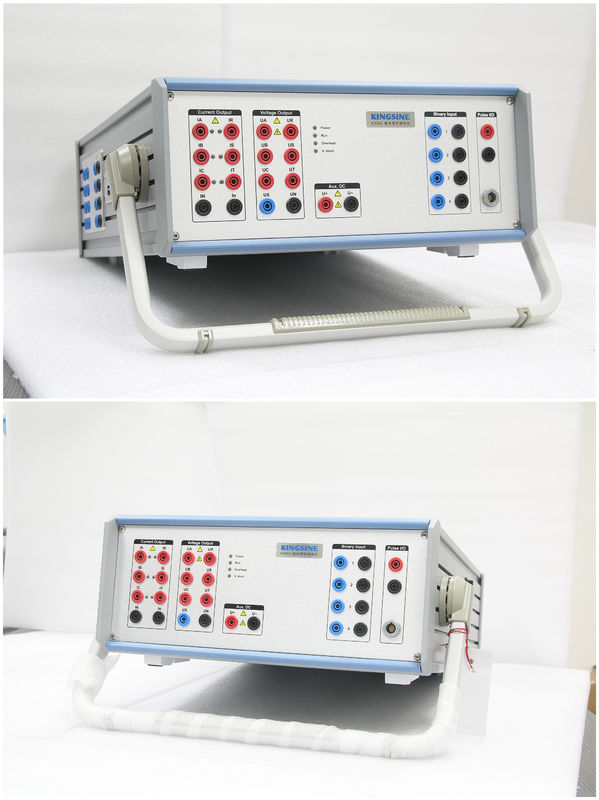

KINGSINE K3030i Digital Relay Protection Tester Support IEC61850
Description Of Digital Relay Test Device Support IEC61850
Comprehensive test instrument develop based on intelligent substation testing, mainly function is protection relay testing, sampling value analysis, SCD file analysis/comparison and MMS service. Suitable for detection and testing of IED equipment such as intelligent substation protection relay, measurement and control device, merge unit and intelligent terminal. Also can used in signal check of substation control layer.
Feature Of Digital Relay Test System Support IEC61850
High precision and powerful 3-phase relay test set and commissioning tool;
Power & Accuracy in one single PACKAGE, 3x35A, 4x310V analog outputs;
The ever-expanding test library templates;
Specification Of Three-phase Protection Relay Test Set
| Voltage Outputs | ||
| Output Range & Power | 4×310 V ac (L-N) | 124 VA max each |
| 3×350 V dc (L-N) | 140 W max each | |
| Accuracy | ±2mV @ <2V ac <0.015%Rd+0.005Rg Typ. @ 2~310V ac <0.04%Rd+0.01Rg Guar. @ 2~310V ac |
|
| ±10mV @ <5V dc ±0.5% @ ≥5V dc |
||
| Voltage Range | Range I : 30V | |
| Range II : 310V | ||
| Automatic Range | ||
| DC Offset | <10mV Typ./ <60mV Guar | |
| Resolution | 1mV | |
| Distortion | <0.015%Typ. / <0.05% Guar. | |
| Current Outputs | ||
| Output Range & Power | 3×35A ac (L-N) | 450 VA max each |
| 1×100A ac (6L-N) | 1200 VA max | |
| 3×20A dc (L-N) | 300W max each | |
| Accuracy | ±1mA @ <0.5A ac <0.02%Rd+0.01Rg Typ. @ 0.5A~35A ac <0.05%Rd+0.02Rg Guar. @ 0.5A~35A ac |
|
| ±5mA @ <1A dc ±0.5% @ ≥1A dc |
||
| Current Range | Range I: 3A | |
| Range II: 35A | ||
| Automatic Range | ||
| DC Offset | <3mA Typ./ <10mA Guar | |
| Resolution | 1mA | |
| Distortion | <0.025%Typ. / <0.07% Guar. | |
Advantage Of Three-phase Protection Relay Test Kit
| Energy Meter Calibration Hardware is ready, to be active | |
| Sensor Usage | Mechanical meters / Electronic meters |
| Sensor Output | High lever:>4.5V, Low level:<0.2V |
| Pulse Input | 1 pulse input port, 5Vdc high level valid only. |
| Pulse Range | 500KHz pulse input Max. |
| Pulse Output | 1 Transistor output, Open-collector, 5Vdc/5mA |
