High Performance Multifunctional Power Meter , 90 - 260 VAC PMC200

China High Performance Multifunctional Power Meter , 90 - 260 VAC PMC200 supplier

Large Image :  High Performance Multifunctional Power Meter , 90 - 260 VAC PMC200

Product Details:

Place of Origin: China
Brand Name: Kingsine
Certification: ISO9001,CE
Model Number: PMC200

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Delivery Time: 15 working days
Payment Terms: T/T in advance ,L/C
Supply Ability: 5000PCS/Month
Detailed Product Description

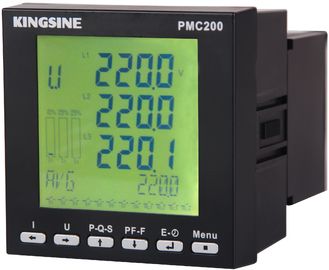

High Performance Multifunctional Power Meter , 90 - 260 VAC PMC200



Power Quality Analysis
Wide angle display
Mini,Easy installation



Four Extension Modules for your different demands!

 Cost-effective, easy use & installation! Widely used for power management system! Substation automation, distribution network, intelligent building, intelligent swithchboard!



Introduction


PMC200 Multifunctional Power Meter is widely used for energy management system, substation automation, distribution network automation, subdistrict power distribution, industrial automation, intelligent building, intelligent switchboard, switch cabinet, etc. It integrates the digitization, intellectualization and networking together, to replace the traditional equipments such as electric quantity transducer, numeric display instrument, data acquisition unit and recorder analyzer, etc. The multi-purpose lows the cost, and the simple wire connection simplifies the testing.

Standard: DL/T721 - 2000

 Accuracy class

Voltage and current

Class 0.2

Power

Class 0.5

Active electrical degree

Class 1

 Input voltage characteristic

Range

100V,  200V,  400V (optional)

Impedance

2MΩ (L-L),  1MΩ (L-N)

Allowed overload capacity

1.2 times/ continuous

Input current characteristic

Range:

1A,  5A (optional)

Impedance:

<0.1Ω

Allowed overload capacity:

1.2 times/ continuous,  10 times/1 second

Contact capacity of relay

220VAC/5A, 30VDC/5A

Communications interface

RS485,  baudrate optional,  Max. 19200bps

Communication protocol

MODBUS RTU

Electromagnetic compatibility

Conforms to Class IECⅢ

Insulation resistance

>50MΩ

Power frequency withstand voltage

AC2kV/1min

Whole power

<5VA

Power supply

90 to 260VAC/DC

Working temperature

-20℃ ~ +70 ℃

Dimensions

96x96x72 (mm),

96x96x120(mm)(with expanding module)

Weight

0.5 kg



PMC200 Power Parameter Tester



Functions and Features



Parameter Measurement

Power Quality



 Current / Voltage

Active/Reactive/Apparent Power

Power Factor   /   Frequency

Phase and Neutral Line

Wire Line and Phase Line

3-Phases and Single Phase

3-Phases and Single Phase

Harmonic Distortion    /   31 times Harmonic Analysis

Current and Voltage    /   Current and Voltage



Communication Protocol



RS485/MODBUS



Display



STN LCD Display with big screen   /  Real-Time Clock

Year/Month/ Day/Hour/Minute/Second



Energy Measurement

Others



Input/Output Active Energy

Input/Output Reactive Energy

Apparent Energy

1 Channel Pulse Output

1 Channel Pulse Output

Update on-line



Remote Communication Input Module

8 Channels Remote Communication Input

Resolution of State Variable Time: up to 1 ms

100 SOE Events Log



Demand Statistics

Relay Output Module



Current

Active/Reactive/Apparent Power

Current Value and Max.

Current Value and Max.

4-Channel Relay Output

Programmable Alarm Setting of exceeding the limit

Remote Control



Restoration Rate

Analog Input and Output Module



8 Restoration Stages;

4 Restoration Rate can be set

1 Channel Analog Input Measurement for 4-20mA DC

1 Channel Analog Input Measurement for 0-5V DC

2 Channels Analog Output for 4-20mA DC



Maximum and Minimum



Record the maximum,  minimum and

time of all measurement parameters

Communication Module



a)RS232 Communication Module

b)Profibus-DP Communication Module

c)TCP/IP Ethernet Expansion Module





Event Log



100 SOE Events Log   /  Time Resolution: up to 1 ms
