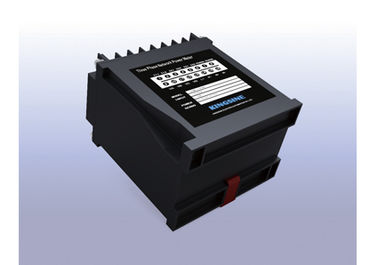

PMC180N three-phase network power meter

  • Complete power parameter measurement, energy measurement, 31 order voltage / current harmonic analysis.

  • Threshold Crossing Alert for power parameter, online monitoring.

  • Multifunctional meter without LCD operation panel, optional transducer function output.

  • Support MODBUS-RTU standard protocol, RS485 communication.


Overview


 PMC180N three-phase network power meter is a multifunctional meter without LCD operation panel. It adopts low power dissipation microprocessor, can measuring complete power parameter, energy measurement, and 31 order voltage / current harmonic analysis. It has the optional Analog output port, can match the demand of transducer function. It has RS-485 communication port and could be easily integrated to any intelligent power distribution system. PMC180N has the practical function, easy use, easy maintenance. It can use to monitor and control of the on-site equipment, supply the measuring & testing support to the power application specialist, supply the data base to the SCADA and Smart Grid, provide scientific basis for intelligent energy management.



Function Features



Function Features

PMC180Z

PMC180C

PMC180P

PMC180U

PMC180 I

PMC180N

Instantaneous real virtual value













Current

Single phase & neutral line





Voltage

Line/line & Phase/Line





Frequency









Active power

Three-phase & single phase







Reactive power

Three phase & single phase









Power factor

Three-phase & single phase







Energy













Active energy









Reactive energy









Power Quality













Harmonic distortion

Current & voltage









31 order harmonic analysis

Voltage & current









Communication













RS485 /MODBUS protocol

Display













LED display



Other













2-channel DI



2-channel DO



1 channel AO:4-20Ma

2-channel limits alarm

Support program online upgrade



Technical parameter



Electrical Characteristics

Measurement Type



Three-phase three-wire AC system

Three-phase four-wire AC system



Sampling rate: 64 times per cysle

Data refresh rate

1S

Measurement Accuracy

Current

0.5%

Voltage

0.5%

Power

0.5%

Frequency

0.05Hz

Active Energy

1.0%

Reactive Energy

2.0%

AO

1%

Input voltage characteristics

Measuring voltage

Allowed overload

3 X 220/380V(connected directly)



3 X 57.7/100V(connected by CT)



Input impedance

1.2 times / continuous

Measuring voltage

1.8MΩ

Input current characteristic

Measuring current

5A or 1A (connected by CT)



Allowed overload

1.2 times / continuous

Input impedance

<0.1Ω

4-20mA DC output



 Open circuit voltage

15VDC

Load capacity

≤500Ω

Isolated voltage

2KV

Working power supply

AC

85~265 VAC/45-65Hz

DC

100~300 VDC

Power dissipation

< 3W

Mechanical properties

Weight

0.5kg

IP protection grade

IP52

Size

110 X 75 X 72 mm or 110 X 75 X 120 mm

Operating temperature

-40~70℃

Storage Temperature

-50~85℃

Relative Humidity

5% - 90%RH, No condensation

EMC

Electrostatic discharge interference

IEC 61000-4-2, Level 4

Group of anti-fast transient pulse

IEC 61000-4-4, Level 4

Anti-impact

IEC 61000-4-5, Level 3

Anti-frequency magnetic field

IEC 61000-4-8, Level 3

Electrical insulation performance

Insulation resistance

GB/T13729, >50MΩ

Frequency withstand voltage

GB/T13729, AC 2KV 50Hz /1min

Impulse voltage

GB/T13729, 5KV, 1.2/50us
