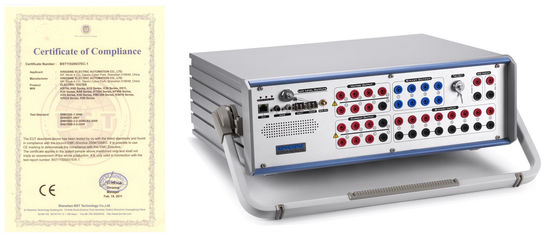

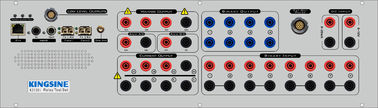

Kingsine K3166i Protection Relay Testing Kit Three Phase Protection Relay Tester

Kingsine K3166i Protection Relay Testing Kit Three Phase Protection Relay Tester
Kingsine K3166i Protection Relay Testing Kit Three Phase Protection Relay Tester

Large Image :  Kingsine K3166i Protection Relay Testing Kit Three Phase Protection Relay Tester

Product Details:
Place of Origin: China
Brand Name: KINGSINE
Certification: CE/ISO9001
Model Number: K3166i
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: L/C,T/T
Supply Ability: 100 sets/month
Detailed Product Description
Nominal Input Voltage: 100~240Vac Nominal Frequency: 50/60Hz
Power Consumption: 1500 VA Max Weight: 17.5 Kg
Response Time: 100us Dimensions(W X D X H): 468×375×164(mm)
High Light:

K3166i Protection Relay Testing

,

Kingsine Protection Relay Testing

,

K3166i Protection Relay Tester

Kingsine K3166i Protection Relay Testing Kit Three Phase Protection Relay Tester



Description Of Secondary Injection Test Set

Universal protection relay test function, With fully function of Manual test, state sequencer, Harmonic, recloser test , Line differential, Distance, Mutation distance, Overcurrent, Zero sequencer, Ramping, Power direction, Differential rate, Differential Harmonic, Overexcitation protection, Synchronize, Reserve power supply test, Busbar differential, Frequency test, Dv/Df test, etc.



Feature Of Secondary Injection Test Kit

All-in-One design, weight < 17.5kg;
High Power & Accuracy with 6x35A & 7x310V analog outputs;
Complying IEC61850 Sampling Value & GOOSE;
The ever-expanding test library templates;
Optional advance functions like energy meter and transducer calibration.



Specification Of Secondary Injection Test Device



Binary Output (Relay Type)
Quantity 4pairs
Type Potential free relay contacts, software controlled
Break Capacity AC Vmax: 400Vac / Imax:8A / Pmax:2500VA
Break Capacity DC Vmax: 300Vdc / Imax:5A / Pmax:150W
Binary Output (Semiconductor Type)
Quantity 4pairs
Type: Open-collector, Combination type female
Break Capacity DC 5~15Vdc / 5mA, 10mA max
AC not permit
Response time: 100us
Synchronization
Synchronization Mode  GPS, SMA type antenna connector
IRIG-B (Optical fiber, FT3 type)
Power supply & Environment
Nominal Input Voltage 100~240Vac
Permissible Input Voltage 85~260Vac, 125~350VDC
Nominal Frequency 50/60Hz
Permissible Frequency 45Hz~65Hz
Power Consumption 1500 VA max
Connection Type Standard AC socket 60320
Operating Temperature -10℃~55℃
Storage Temperature -20℃~70℃
Humidity <95%RH, non-condensing
Others
PC Connection RJ45 Ethernet, 10/100M
Grounding Terminal 4mm banana socket
Weight 17.5 Kg
Dimensions(W x D x H) 468×375×164(mm)




Advantage Of Relay Test Complying IEC61850

Advance Feature

Complied IEC61850-9-1, IEC61850-9-2, IEC60044-7/8, etc
Transducer calibration (0.02 class)
Energy meter calibration (Mechanical & Electronic meters)



F&A

Q: 1. How many countries have KINGSINE exported so far ?
A: KINGSINE brand products have been successfully served clients across more than 70 countries worldwide, inclusive of ABB, SIEMENS, SCHNEIDER, GE etc.



Q: 2. What is the lead time for delivery?
A:It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.

Q: 3. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.

Q: 4. What is the shipping method?
A: It could be shipped by air or by express courier (UPS,DHL,TNT,FEDEX, EMS, SF Express and ect) or even by sea.Please refer to us before placing orders.


Q: 5. What's your acceptable payment term?
A: T/T and L/C at sight are our normal acceptable payment terms.



Q: 6.How long is the warranty period?

A: We provide 3-years guarantee of free repair and life-long maintenance.
