KFA300 Mini Protection Relay Tester Built In Battery Design

KFA300 Mini Protection Relay Tester Built In Battery Design
KFA300 Mini Protection Relay Tester Built In Battery Design KFA300 Mini Protection Relay Tester Built In Battery Design KFA300 Mini Protection Relay Tester Built In Battery Design KFA300 Mini Protection Relay Tester Built In Battery Design KFA300 Mini Protection Relay Tester Built In Battery Design

Large Image :  KFA300 Mini Protection Relay Tester Built In Battery Design

Product Details:
Place of Origin: CHINA
Brand Name: KINGSINE
Certification: CE/ISO9001
Model Number: KFA300
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/month
Detailed Product Description
Name: Mini Protection Relay Tester Contact Load: Low Power
Warranty: 3 Year Protect Feature: Sealed,Epoxy
Supply Power: AC 220V±10%,50/60Hz Weight: 3kg
High Light:

Mini Protection Relay Tester

,

KFA300 Protection Relay Tester

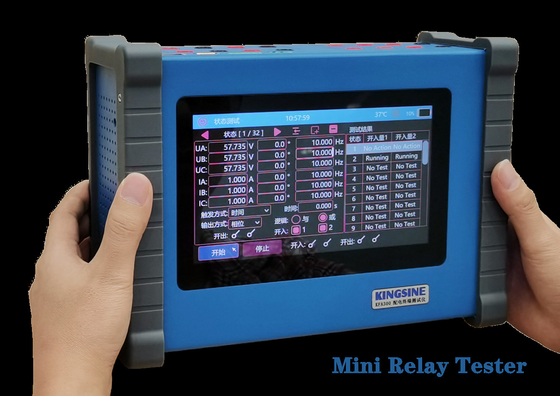

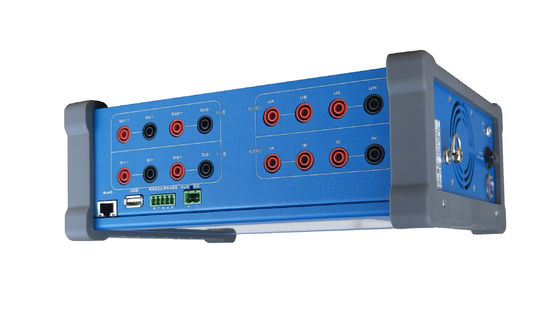

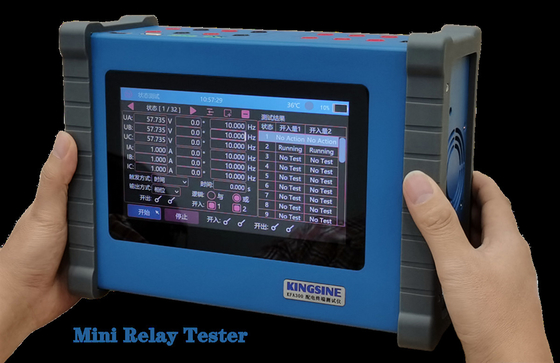

KFA300 Mini Protection Relay Tester Built In Battery Design



Description of KFA300 Protection Relay Tester

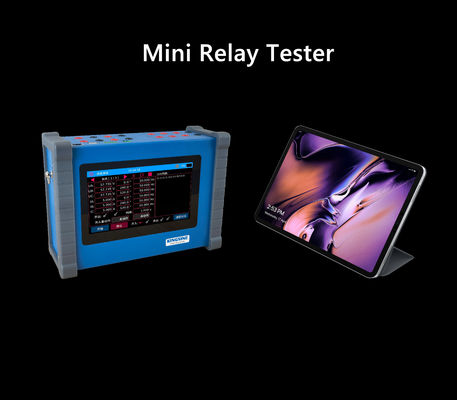

B5 paper size,as mini as IPaid Pro. built-in battery design,for on-site maintenance and testing of non-electric environment ,3 phase protection relay testing, secondary circuit inspect and secondary voltage and current testing.



Feature Of KFA300 Protection Relay Tester

  • Size:B5 paper size, aluminum alloy case,Very small and light.
  • Weight:3.5kg ,elegant and light, easy to carry and use.

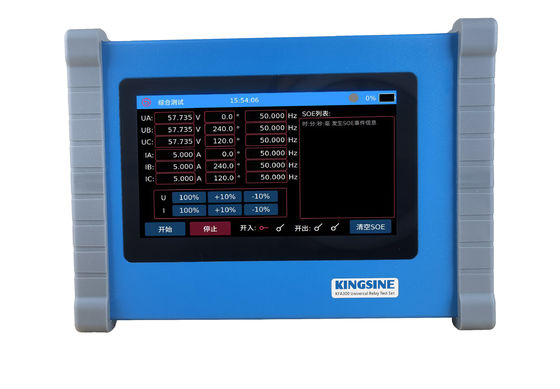

  • Operational performance:high-performance FPGA,32-bit ARM microprocessor 1000MHz, smooth operation, 7.0-inch LED capacitive touch screen, full touch operation, mobile phone operation habits, display light transmission, non-reflective contrast, clear display for outdoor
  • Equipment self-protection function: voltage output short-circuit, current output open-circuit, temperature overheat protection.



Specification Of KFA300 Protection Relay Tester

Technical Parameters:
  Voltage Outputs
      22.5 VA max each@265V
      21 VA max each@200V
  Output Range & Power 3×265 V ac (L-N) 12.5 VA max each@100V
      7 VA max each@63.5V
      6.65 VA max each@57.7V
      1.1 VA max each@10V
  Accuracy 0~1V2mV
1~VMax(0.02%Rd+0.03Rg) Guar
  Resolution 0.001V
  Distortion <0.05%Typ. / <0.1% Guar.
Current Outputs
Output Range & Power 3×10A ac (L-N) 27 VA max each@10A
    25.5 VA max each@9A
    24 VA max@8A
    17 VA max each@5A
    3.88VAmax each@1A
Accuracy 0~0.2A2mA
0.2~IMax: ±(0.02%Rd+0.03Rg) Guar.
Resolution 0.001A

Frequency & Phase Angle
Frequency Range DC~1KHz
Frequency Accuracy ±5ppm
Frequency Resolution 0.001 Hz
Phase Range 0°~360°
Phase Accuracy <0.1° Typ. / <0.2° Guar. 50/60Hz
Phase Resolution 0.001°
Aux. DC Voltage Source (Battery simulator)
Range 24V(0.9A),48V(0.6A)Switchable
110V or 220V output(/Option);
Other type can be customized
Accuracy 5%Rg Guar.
Binary Input
Quantity 2pairs
Voltage range dry contact, input voltage DC 0~300V
Fast Binary Output
Quantity 2pairs
Circuit Breaker Simulate Can be define as Open or Close status
Contact performance Open the dry contact output using opto-coupler relay, the on-resistance is ≤6Ω, and the shut-off withstand voltage is DC350V
SOE test function the time error between the two outputs is ≤0.2ms, and the SOE resolution test can be performed
Communication
USB2.0 1 USB socket, used for software upgrade
Built-in Internal Battery
Battery capacity 90Wh
Work time standby working time is not less than 8 hours
  5A current output can work for not less than 1 hour;
Charge time Fast charging, charging time is less than 1 hour
AC/DC Charger
Input 100~240Vac,50/60Hz,Max2.5A
Output 33.6Vdc,5.0A(168W)
Environment
Operating Temperature 0℃~45
Storage Temperature -5℃~50
Humidity <85%RH, non-condensing
Others
Grounding Terminal 4mm banana socket
Weight Approximately 3.5kg
Dimensions(W x D x H) 252×95 ×185 (mm)

Advantage Of KFA300 Protection Relay Tester

Communication

  • USB2.0: 1 USB socket, used for report upload and software upgrade;

Built-in Internal Battery



8-cell imported lithium battery, standby working time is not less than 8 hours, 5A current output can work continuously for not less than 1 hour;Fast charging, charging time is less than 1 hour.

Software Function

  • Manual/Auto AC test function

  • State Sequencer Test Function

  • Overcurrent Breaker Tester Function

  • Remote(Signal,Measurement,Control) Function

  • Remote Signal Test function

   More function are updating..



Module Option

Type Voltage Current
KFA300 3×265V 3×10A







F&A

Q:1.How long is the warranty period?

A:We provide 3-years guarantee of free repair and life-long maintenance.



Q: 2. What is your advantages?

A: KINGSINE have been specializing in electric power testing & measurement for over 21 years. All-in-One design concept, high power burden & high output accuracy but with high cost-efficiency, 3-years guarantee of free repair and life-long maintenance.



Q: 3. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
