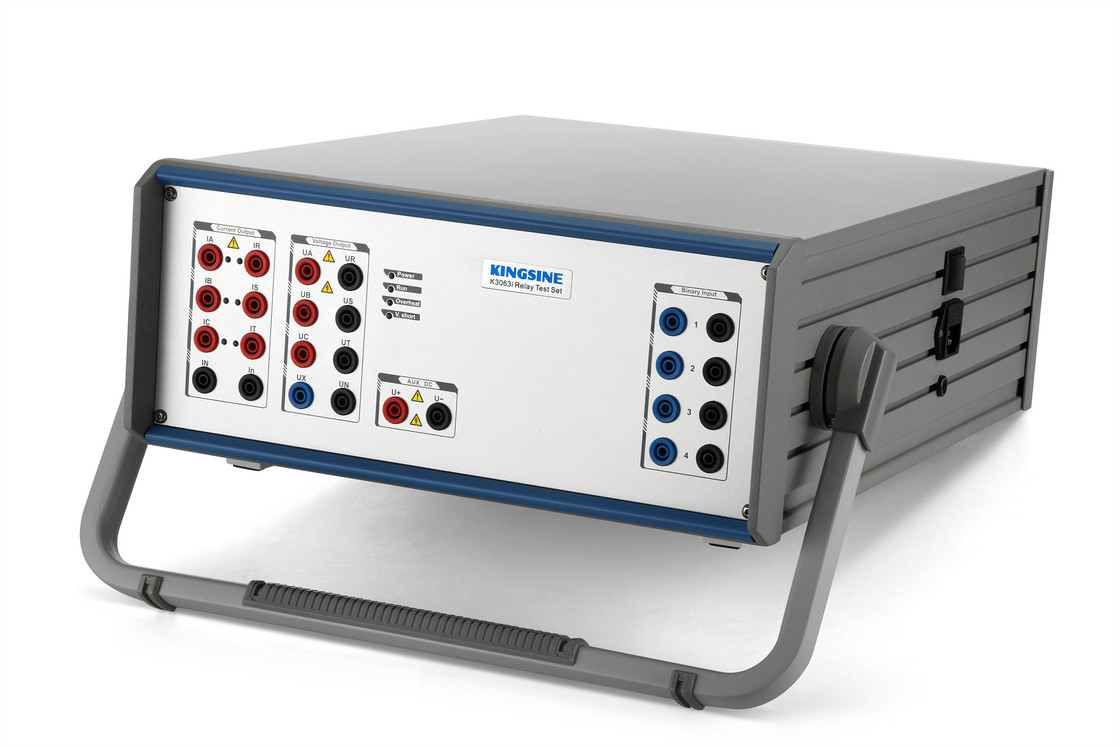

K3063i Powerful 6 Phase Protection Relay Testing Relay Test Set 6x35A



Description of K3063i Universal Protection Relay Test Set

powerful 6-phase relay test set and commissioning tool;

Power & Accuracy in one single PACKAGE, 6x35A, 4x310V analog outputs;

The ever-expanding test library templates

Feature Of K3063i Universal Protection Relay Test Set

● 10 Channels (6x35A & 4x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.

● Variable battery simulator, DC 0-350V, 140Watts max.

● Transient play back up to 3KHz

● Fully function KRT software testing modules

● Graphical test modules and templates for testing of various relays

● Quick relay testing facility in Manual mode

● Shot/Search/Check, Point & Click testing

● RIO/XRIO import & export facility

● Switch on to fault test(SOTF)

● Power system model for dynamic testing

● Online Vector display

● Automatic test results assume

● Automatic test report creation

● Inbuilt GPS sync end-to-end testing

● Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection

● 3-Years guarantee of free repair and life-long maintenance

● Lightweight, <19.5Kg

● Free software upgrade

Electronic Protection Relay Test Set 10us Low Power 10KHz 10 Channels Outputs 0







Specification Of K3063i Universal Protection Relay Test Set



Binary Input
Quantity 8pairs
Type wet/dry, up to 300Vdc max input
Time resolution 10us
Sampling Rate 10KHz
Debounce time 0~25ms (Software Controlled)
Time range Infinite
Time errors ±1ms @ ≤1s, ±0.1% @ >1s
Galvanic isolation Isolated each pairs
Binary Output (Relay Type)
Quantity 4pairs
Type Potential free relay contacts, software controlled
Break Capacity AC Vmax: 400Vac / Imax:8A / Pmax:2500VA
Break Capacity DC Vmax: 300Vdc / Imax:5A / Pmax:150W
Binary Output (Semiconductor Type)
Quantity 4pairs
Type: Open-collector, Combination type male
Break Capacity DC 5~15Vdc / 5mA, 10mA max
Response time: 100us
Synchronization
Synchronization Mode  GPS, SMA type antenna connector




Advantage Of K3063i Universal Protection Relay Test Set




Energy meter calibration (Mechanical & Electronic meters)



Type of relays can be tested:

Items ANSI® No.
Distance protection relay 21
Synchronising or synchronism-check relays 25
Undervoltage relays 27
Directional Power relays 32
Undercurrent or underpower relays 37
Negative sequence overcurrent relays 46
Overcurrent/ground fault relays 50
Inverse time overcurrent/ground fault relays 51
Power factor relays 55
Overvoltage relays 59
Voltage or current balance relays 60
Directional overcurrent relays 67
Directional ground fault relays 67N
DC overcurrent relays 76
Phase-angle measuring or out-of-step protection relays 78
Automatic reclosing devices 79
Frequency relays 81
Motor overload protection relays 86
Differential protection relays 87
Directional voltage relays 91
Voltage and power directional relays 92
Tripping relays 94
Voltage regulating relays
Overimpedance relays, Z>
Underimpedance relays, Z
Time-delay relays



Ordering instruction:



Model Current Outputs Voltage Outputs Optional Function
K3066i 6×35A @ 450VA max
3×70A @ 850VA max
7×310V @ 90VA max ● Energy Meter Cal.
K3063i 6×35A @ 450VA max
3×70A @ 850VA max
4×310V @ 124VA max
K3030i 3×35A @ 450VA max 4×310V @ 124VA max
