|Power:||Electronic||Usage:||Relay Test Set|
|Weight:||16kg||Product Name:||Protection Relay Test Set|
|Contact Load:||Low Power||Warranty:||One Year|
KINGSINE Protective Relay Test Set,
Vector Display Protective Relay Test Set,
ISO9001 Relay Test Unit

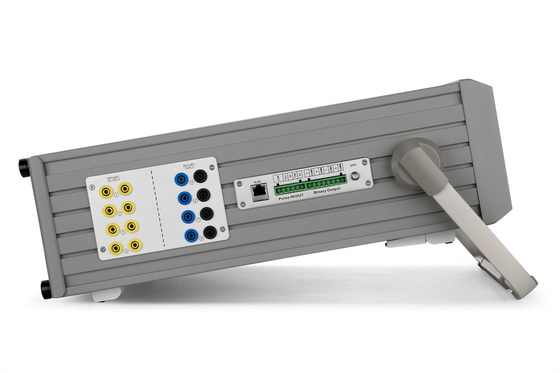

K3063i Powerful 6 Phase Protection Relay Testing Relay Test Set 6x35A
Description of K3063i Universal Protection Relay Test Set
powerful 6-phase relay test set and commissioning tool;
Power & Accuracy in one single PACKAGE, 6x35A, 4x310V analog outputs;
The ever-expanding test library templates
● 10 Channels (6x35A & 4x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.
● Variable battery simulator, DC 0-350V, 140Watts max.
● Transient play back up to 3KHz
● Fully function KRT software testing modules
● Graphical test modules and templates for testing of various relays
● Quick relay testing facility in Manual mode
● Shot/Search/Check, Point & Click testing
● RIO/XRIO import & export facility
● Switch on to fault test(SOTF)
● Power system model for dynamic testing
● Online Vector display
|Type||wet/dry, up to 300Vdc max input|
|Debounce time||0~25ms (Software Controlled)|
|Time errors||±1ms @ ≤1s, ±0.1% @ >1s|
|Galvanic isolation||Isolated each pairs|
|Binary Output (Relay Type)|
|Type||Potential free relay contacts, software controlled|
|Break Capacity AC||Vmax: 400Vac / Imax:8A / Pmax:2500VA|
|Break Capacity DC||Vmax: 300Vdc / Imax:5A / Pmax:150W|
|Binary Output (Semiconductor Type)|
|Type:||Open-collector, Combination type male|
|Break Capacity DC||5~15Vdc / 5mA, 10mA max|
|Synchronization Mode||GPS, SMA type antenna connector|
Advantage Of K3063i Universal Protection Relay Test Set
Energy meter calibration (Mechanical & Electronic meters)
Type of relays can be tested:
|Distance protection relay||21|
|Synchronising or synchronism-check relays||25|
|Directional Power relays||32|
|Undercurrent or underpower relays||37|
|Negative sequence overcurrent relays||46|
|Overcurrent/ground fault relays||50|
|Inverse time overcurrent/ground fault relays||51|
|Power factor relays||55|
|Voltage or current balance relays||60|
|Directional overcurrent relays||67|
|Directional ground fault relays||67N|
|DC overcurrent relays||76|
|Phase-angle measuring or out-of-step protection relays||78|
|Automatic reclosing devices||79|
|Motor overload protection relays||86|
|Differential protection relays||87|
|Directional voltage relays||91|
|Voltage and power directional relays||92|
|Voltage regulating relays|
|Overimpedance relays, Z>|
|Underimpedance relays, Z|
|Model||Current Outputs||Voltage Outputs||Optional Function|
|K3066i||6×35A @ 450VA max
3×70A @ 850VA max
|7×310V @ 90VA max||● Energy Meter Cal.|
|K3063i||6×35A @ 450VA max
3×70A @ 850VA max
|4×310V @ 124VA max|
|K3030i||3×35A @ 450VA max||4×310V @ 124VA max|
Q:1.Why do we offer a three-year warranty?
A:First of all,The quality goal of KINGSINE company is that no quality failure occurs within five years of customer use.
The second,KINGSINE has been engaged in the overseas market for 12 years.Up to now,about 3000 sets of equipment have been operating overseas,and the annual failure rate is less than 1%.
The third,Our products are modular design,If there is a fault,it can be remote fault diagnosis,and then express products’ parts to customer for quick repair.
Q: 2. What is your advantages?
A: KINGSINE have been specializing in electric power testing & measurement for over 21 years. All-in-One design concept, high power burden & high output accuracy but with high cost-efficiency, 3-years guarantee of free repair and life-long maintenance.
Q:3.What is the application range of the product?
A:KINGSINE brand Relay Test Sets are featured with fully function of state sequencer,Harmonic,recloser test , Line differential, Distance,Overcurrent, Zero sequencer, Ramping, Power direction, Differential rate, Differential Harmonic, Synchronize, Busbar differential, Frequency test, Dv/Df test, etc.
