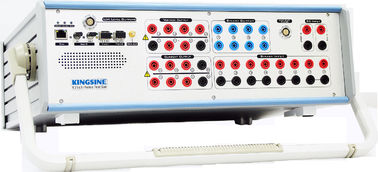

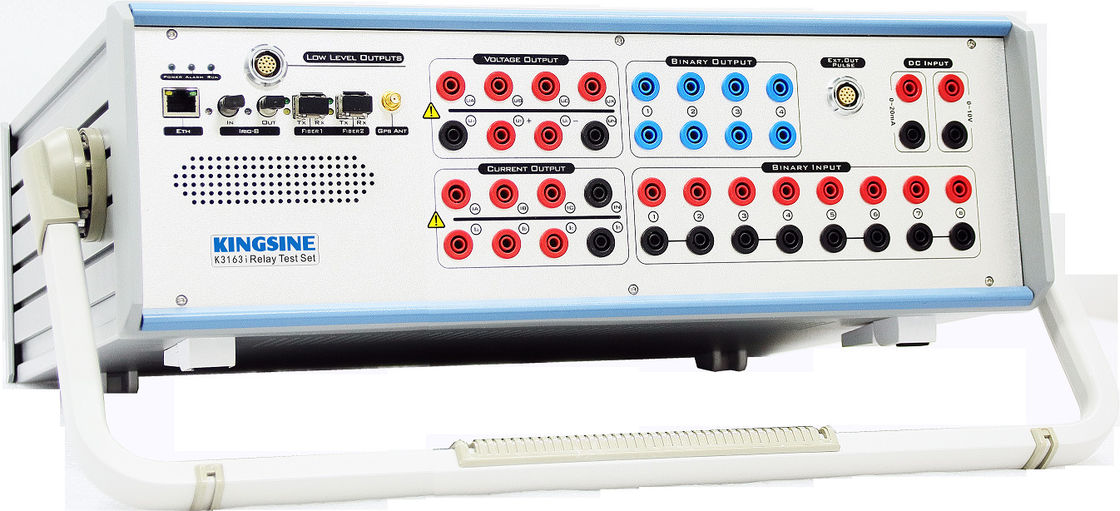

Three Phase IEC61850 K3163i Protection Relay Testing

Three Phase IEC61850 K3163i Protection Relay Testing
Three Phase IEC61850 K3163i Protection Relay Testing

Large Image :  Three Phase IEC61850 K3163i Protection Relay Testing

Product Details:
Place of Origin: China
Brand Name: Kingsine
Certification: CE/ISO9001
Model Number: K3163i
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: T/T,L/C
Supply Ability: 100 sets/month
Detailed Product Description
Time Resolution: 10us Operating Temperature: -10℃~55℃
Weight: 17.5 Kg Dimensions(W X D X H): 468×375×164(mm)
Nominal Input Voltage: 100~240Vac Nominal Frequency: 50/60Hz
High Light:

K3163i Protection Relay Testing

,

IEC 61850 Three Phase Relay Tester

,

IEC61850 K3163i

Three Phase IEC61850 K3163i Protection Relay Testing



Description Of IEC61850 Relay Test Set



Relay protection microcomputer test device plays a key role in operating electricity power systems reliably and safely. It is the testing device used in professional field of microcomputer protection, relay protection, excitation measurement, fault recorder.



Feature Of Intelligent Relay Tester



Universal Relay Test Applications
10 Channels (6x35A & 4x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.
13 Low-level channels outputs up to 8Vac/10Vdc max.
100/1000Mbit Fiber port for SMV and GOOSE simulations
Variable battery simulator, DC 0-350V, 140Watts max.
Transient play back up to 3KHz
Fully function KRT software testing modules
Graphical test modules and templates for testing of various relays
Quick relay testing facility in Manual mode
Shot/Search/Check, Point & Click testing



Specification Of Overcurrent Relay Test Set





Voltage Outputs
Output Range & Power 4×310 V ac (L-N) 124 VA max each
3×350 V dc (L-N) 140 W max each
Accuracy ±2mV @ <2V ac
<0.015%Rd+0.005Rg Typ. @ 2~310V ac
<0.04%Rd+0.01Rg Guar. @ 2~310V ac
±10mV @ <5V dc
±0.5% @ ≥5V dc
Voltage Range Range I : 30V
Range II : 310V
Automatic Range
DC Offset <20mV Typ./ <100mV Guar
Resolution 1mV
Distortion <0.015%Typ. / <0.05% Guar.
Current Outputs
Output Range & Power 6×35A ac (L-N) 480 VA max each
3×70A ac (2L-N) 850 VA max each
1×100A ac (6L-N) 1200 VA max
3×20A dc (L-N) 300W max each
Accuracy ±1mA @ <0.5A ac
<0.02%Rd+0.01Rg Typ. @ 0.5A~35A ac
<0.05%Rd+0.02Rg Guar. @ 0.5A~35A ac
±5mA @ <1A dc
±0.5% @ ≥1A dc
Current Range Range I: 3A
Range II: 35A
Automatic Range
DC Offset <3mA Typ./ <10mA Guar
Resolution 1mA
Distortion <0.025%Typ. / <0.07% Guar.
Low-Level Output
Quantity 13 Channels, 16 pin combination female socket
Voltage Outputs Range AC 0~8V, DC 0~10V
Current Outputs Range Nominal 2mA, 10mA max transient
Output Power ≥0.5VA
Accuracy (0.01~0.8 Vrms):<0.05% Typ. / <0.1% Guar.
(0.8~8 Vrms): <0.02% Typ. / <0.05% Guar.
Resolution 0.25mV
Distortion (THD%) <0.05% Typ. / <0.1% Guar.
Frequency Range 0~3000KHz
DC Offset <0.15mV Typ. / <1.5mV Guar.



Advantage Of Frequency Relay Test System



Fully complying IEC61850 Sampling value and GOOSE; (IEC61850-9-1, IEC61850-9-2/(LE), IEC60044-7/8)
Able to simultaneously output sampling value and analog signals, or subscriber and publish GOOSE message and relay contact binary I/O function.
Up to 36 sampling value channels can be mapped.





FAQ



Q: Can the relay protection tester show the impedance curve?

A: Yes.

Q: What is your technical advantages?

A: Our products with All-in-One design, weight < 17.5kg.High Power & Accuracy with 6x35A & 4x310V analog outputs and Complying IEC61850 Sampling Value & GOOSE.

Q: How long is the warranty period?

A: 3-Years guarantee of free repair and life-long maintenance
