Three Phase digital multifunction power meter Electric Monitoring Meter

small.img.alt small.img.alt

Large Image :  Three Phase digital multifunction power meter Electric Monitoring Meter

Product Details:
Place of Origin: CHINA
Brand Name: KINGSINE
Certification: CE/ISO9001
Model Number: PMC72
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/month
Detailed Product Description
Measurement Type: Three-phase Three-wire AC System /Three-phase Four-wire AC System Data Refresh Rate: 1S
Measuring Voltage: 3 X 220/380V(connected Directly) And 3 X 57.7/100V(connected By CT) Allowed Load: 1.2 Times / Continuous
High Light:

Three Phase digital multifunction power meter


380V Electric Monitoring Meter


380V multifunction power meter

Three Phase digital multifunction power meter Electric Monitoring Meter

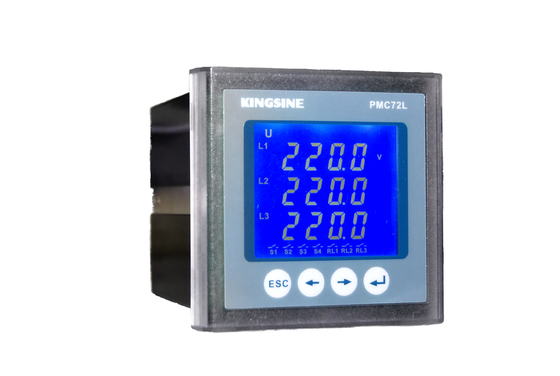

PMC72 series three-phase electric monitoring meter adopts Segment type LCD screen and grand,high contrast; With high-speed processor as the core, measurement of electric parameters using 22 AD, electric energy metering, wide dynamic range, high accuracy. Can optional configure various binary,relay,RS-485 communication module, can easily fulfill the integration of various intelligent distribution system.

Three Phase digital multifunction power meter Electric Monitoring Meter 0



Feature Of Three-phase high accuracy Electric Monitoring Meter

● Adopts 22 AD for achieve electric parameter measurement, electric energy metering, wide dynamic range, high accuracy;

● Electric parameter over-limit alarm monitoring, alarm output relay association;

● Support 2-channel DI/DO,1 channel electric energy pulse output;

● Support MODBUS-RTS standard protocol, RS485 communication.


Function Features

Product Model






Instantaneous real virtual value






Current Single phase & neutral line



Voltage Line/line & Phase/line








Active power 3-phase & Single phase




Reactive power 3-phase & Single phase





Power factor 3-phase & Single phase










Active energy 1 channel pulse output





Reactive energy











MODBUS-RTU protocol







LCD or Digital display







Support program online upgrade

Optional function






1 channel RS485

2-channel DI

2-channel DO

2-channel limits alarm




Specification Of PMC72 Series Three-phase high accuracy Electric Monitoring Meter

Series Model

● PMC72S-I Three-phase digital current meter

● PMC72S-U Three-phase digital voltage meter

● PMC72S-P Three-phase digital power meter

● PMC72S-C Three-phase digital power factor meter

● PMC72S-Z Three-phase electric monitoring meter

● PMC72SL-I Three-phase LCD screen current meter

● PMC72SL-U Three-phase LCD screen voltage meter

● PMC72SL-P Three-phase LCD screen power meter

● PMC72SL-C Three-phase LCD screen power factor meter

● PMC72SL-Z Three-phase electric monitoring meter



● Industrial distribution automation system

● Power plant auxiliary system

● Substation automation system

● Energy management system

● Intelligent mansion electrical engineering

● Switch gear of high & low voltage


Advantage Of PMC72 Series Three-phase high accuracy Electric Monitoring Meter


A Model specification:


LCD Display

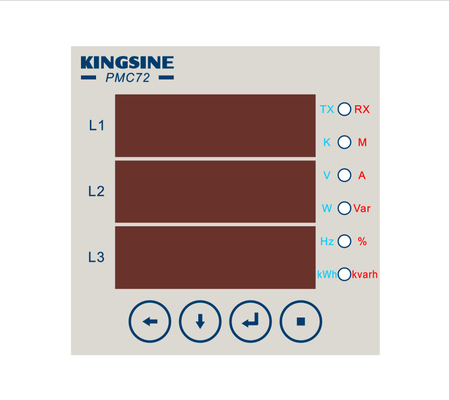

Digital Display

B Means type


3-Phase current meter


3-Phase voltage meter


3-Phase power meter


3-Phase power factor meter


3-Phase power monitoring meter

C Means Rated measurement voltage, current


57.7/100V, 5A


57.7/100V, 1A


220/380V, 5A


220/380V, 1A

D System frequency





E Working power supply


100~300VDC, 85~265VAC/45~65Hz

F Optional function


2-Channel Binary Input


2-Channel Relay Output


1 Channel RS485

Example: order model is: PMC72L-I-3-1-1-SR
It means PMC72L 3-phase LED display current meter has rated measuring is 220/380V 5A, system frequency 50Hz,power supply is 85~265VAC/45~65Hz,option is 2-channel binary input and 2-channel relay output.


Feel free to contact us for more details.



Q:1.How about your after-sales service?

A: We are original manufacturer and always give best and soonest after-sales service.our chief engineer Mr.Terry had travelled to different countries for providing onsite technology support,and our sales managers always provide after-sales service positively.

Q: 2. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
Q: 3.Why do we offer a three-year warranty?

A:First of all,The quality goal of KINGSINE company is that no quality failure occurs within five years of customer use.

The second,KINGSINE has been engaged in the overseas market for 12 years.Up to now,about 3000 sets of equipment have been operating overseas,and the annual failure rate is less than 1%.

The third,Our products are modular design,If there is a fault,it can be remote fault diagnosis,and then express products’ parts to customer for quick repair.
