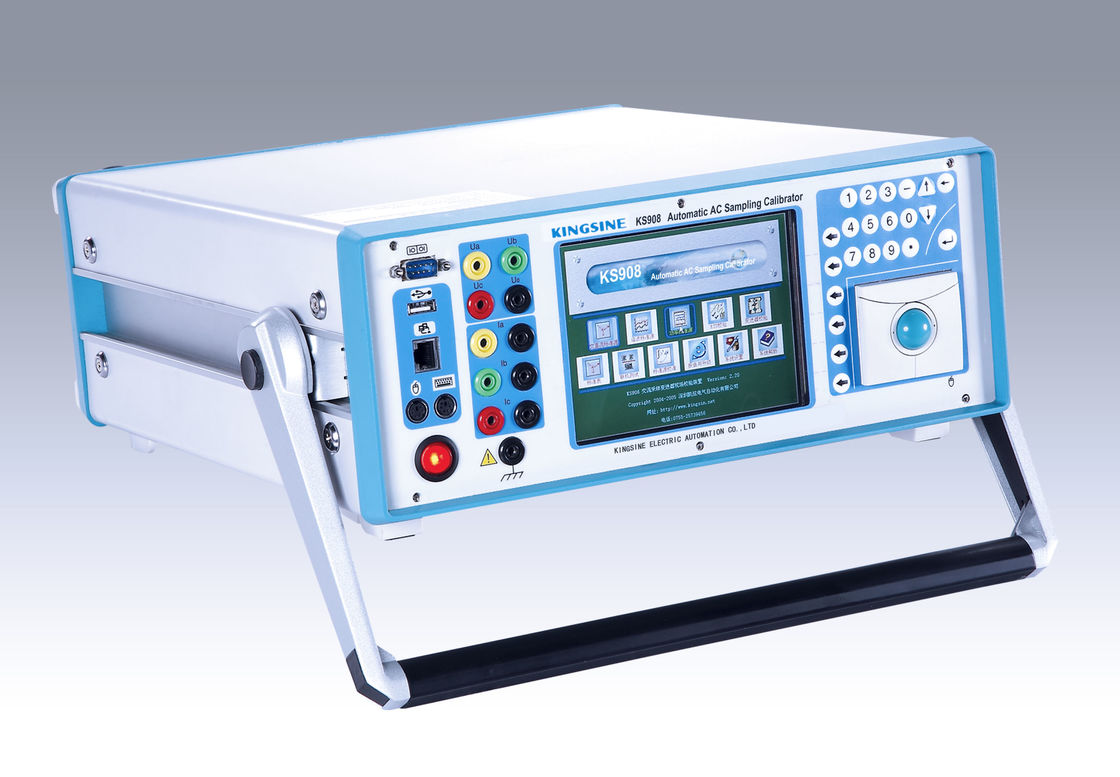

220V / 25VA RTU-Test KS908

220V / 25VA RTU-Test KS908
220V / 25VA RTU-Test KS908

Large Image :  220V / 25VA RTU-Test KS908

Product Details:
Place of Origin: China
Brand Name: Kingsine
Certification: ISO9001,CE
Model Number: KS908
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 15 working days
Payment Terms: T/T in advance ,L/C
Supply Ability: 50 sets/ month
Detailed Product Description
High Light:

220V ac rtu-tester

,

KS908 rtu products

,

25VA RTU-Test



220V / 25VA RTU-Test



Built-in high precision AC/DC/Harmonic standard source output
Voltage Output Shift:100V/220/380V Auto switch
Current Output Shift:1A/5A/10A Auto switch




Technical Data of KS908



Voltage (AC) Output/Measure

Shift

100V/220/380V Auto switch

Adjusting range

0 ... 120%

Min Adjusting Unit

Shift x 0.01%

Resolution

Shift x 0.01%

Accuracy

0.05%RG (RG abbr. range)

Stability

0.01%/1min

Current (AC) Output/Measure

Shift

1A/5A/10AAuto switch

Adjusting range

0 ... 120%

Min Adjusting Unit

Shift x 0.01%

Resolution

Shift x 0.01%

Accuracy

0.05%RG

Stability

0.01%/1min

Power Output/Measure

Min Adjusting Unit

Shift x 0.01%

Resolution

Shift x 0.01%

Accuracy

0.05%RG (F>0.5)

Stability

0.01%/1min

Frequency Output/Measure

Range

45.000...65.000Hz

Min Adjusting Unit

0.001Hz

Accuracy

0.01%RD

Phase Output/Measure

Range

0.00° ... 359.99°

Min Adjusting Unit

0.01°

Resolution

0.01°

Accuracy

0.05°

Power factor Output/Measure

Output range

-1 ... 0 ... +1

Min Adjusting Unit

0.0001

Accuracy

0.0005

 Harmonic Output/Measure

Set range

2 ... 31 times

Content

Voltage,  Current≤30%( compared with Fundamental Wave)

Harmonic output accuracy

0.1%(2 ... 19 times,  compared with Fundamental Wave)

Resolution

0.2%(20 ... 31 times,  compared with Fundamental Wave)

Harmonic Phase

0.00° ... 359.99°

Output Voltage and Current distortion

<0.2%(non capacitance load)

Max AC Output Load

Voltage 25VA,  Current 25VA

Voltage (DC) Output/Measure

Shift

100mV/1V/10V/30V/100V/300V

Adjusting range

0 ... 120%,  0 ... 110% at shift 750V

Min Adjusting Unit

Shift x 0.01%

Resolution

Shift x 0.01%

Accuracy

0.05%RG

Stability

0.01%/1min

Current (DC)  Output/Measure

Shift

1mA/10mA/20mA

Adjusting range

0 ... 120%

Min Adjusting Unit

Shift x 0.01%

Resolution

Shift x 0.01%

Accuracy

0.05%RG

Stability

0.01%/1min

Max DC Output Load

Voltage 20VA,  Current 25VA

DC measure

Voltage measure range

±10V

Current measure range

±20mA

Accuracy

0.01%RG

Index measure reference condition

Work temperature

0°C ... 40°C

Humidity range

≤85 %

Work power supply range

220VAC±15%, 50Hz

Weight

18KG

Dimensions

450(D)×180 (W)×380 (H) mm

Interface

RJ45, USB, PS/2, RS232





Major functions:



  KS901 KS907 KS908
AC Standard Sources
DC Standard Sources
Power Standard Sources
Harmonic Standard Sources
Indicator Test
Transmitter Test
Energy Meter Test
Rtu Test
Standard Meter
Sychronization test
Tele-control, tele-communication

Note:   ●   :With the corresponding function modules

○ : Without the corresponding function modules



●     Built-in high precision AC/DC/Harmonic standard source output;

●     User-friendly interface comes by the use of Windows CE operating system kernel;

●     Functions available such as calibration of AC sampling, transducer, and energy meter; auto-compute on the calibration error and follow-up report creating; report template can be defined by the users;

●     Mouse and keyboard built in panel or external connection available;

●     USB port convenient for data transmissio;

●      Can be used as a standard meter to monitor the information of electric quantity of AC transmission line (available in KS905, KS906);

●     Workable without PC, and provides RS232 and RJ45 to support PC communications. And the communication protocol is open to the users to make auto testing solution if necessary;

●      Can be run offline, while providing network RJ45 port and RS232 port and PC communication, communication protocol and opening up to the user anduser-friendly program to test automatically;

●     Compact size and portable carrying, convenient for on-site operation
