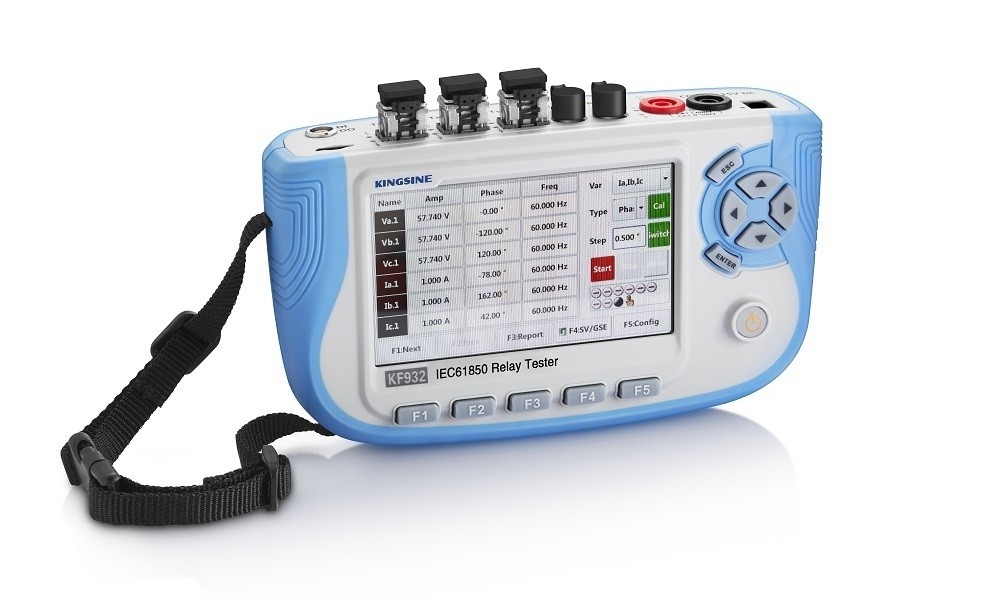

Handheld Digital Protection Relay Testing KF932 IEC61850 Relay Test Set
Description of KF932 IEC61850 Relay Test Set
Applied to digital protection relay, Measure & control device, IEC61850 Complying IEDs ,Merge Unit and substation control system testing and detection;
Touch screen and keypad, to meet different using habits.
4400mAh large capacity lithium battery, continuous work for more than 10 hours.
Small size, easy to portable.
Feature Of KF932 IEC61850 Relay Test Set
based on the intelligent substation related standards to analyze the SV, GOOSE, IRIG-B and IEEE1588 message, calculate the magnitude, phase and frequency of voltage and current, and real-time monitor of GOOSE virtual terminal.
● Receiving closed-loop testing of smart devices via SV, GOOSE message sending, subscription and publication of GOOSE messages;
● Phase detection function is achieved by analyzing and calculating different control blocks; Binary input and output of the hard contact can be completed on the intelligent operation box transmission delay and SOE on the accuracy of the measurement;
● SV and GOOSE exception statistics analysis and synchronization function to achieve the integration of the unit discrete, lost frame and absolute delay measurement.
● With small size, touch screen operation of the convenience and powerful measurement and analysis and testing capabilities, greatly to meet the intelligent substation operation, maintenance and debugging of the protection, monitoring and control devices, IEC61850 complying IEDs, the merger unit and the station control system Detection and commissioning requirements.
Specification Of KF932 IEC61850 Relay Test Set
1 Power Supply
|
Power Supply |
|
|
Battery |
Large capacity lithium battery |
|
Power Adapter |
Input:AC100～240V,50/60Hz,0.7A |
2 Power consumption
|
Power consumption |
|
|
Power consumption |
≦6W |
|
Working power supply |
Continuous work for more than 10 hours |
3 Communication port interface
|
Optical Ethernet communication port |
|
|
Model |
100Base-FX (100M Full duplex optical fiber network) |
|
Port Type |
LC |
|
Wavelength |
1310nm |
|
Transmission distance |
≧1km |
|
Application |
IEC61588 Times and other network messages |
|
Optical serial port communication interface |
|
|
Port number |
2 pcs |
|
Port Type |
ST |
|
Wavelength |
62.5/125μmMultimode fiber,Wavelength850nm |
|
Transmission distance |
≧1km |
|
Application |
Receive/Send IEC60044-7/8(FT3),IRIG-B Timing signal transceiver |
|
Analog input communication interface |
|
|
Port number |
1 pair |
|
Port Type |
Rubber terminal |
|
Hard contact input / output communication interface |
|
|
Port number |
2 pairs |
|
Port Type |
Aviation socket to rubber terminal |
|
TF card slot interface |
|
|
Port number |
1 pc |
|
Application |
TF card for importing the whole station configuration file , recording documents, storing / exporting test reports and upgrading software. |
|
Analog input communication interface |
|
|
Port number |
1 pair |
4 Time signal
|
Time signal |
|
|
IRIG-B |
Time accuracy<1us typ |
|
IEC 61588 |
Time accuracy<1us typ |
5 Mechanical parameters
|
Mechanical parameters |
|
|
Display screen |
4.3’touch LCD screen |
|
Size |
176×100×58 mm |
|
Weight |
≦0.75kg |
6 Temperature range
|
Temperature range |
|
|
Altitude |
≤5000m |
|
Ambient temperature |
Normal operating temperature:-10～55℃ |
|
Relative humidity |
5％～95％ |
|
Atmospheric pressure |
60～106KPa |
Advantage Of KF932 IEC61850 Relay Test Set
|
No. |
Analysis Item |
Analysis content |
|
SMV Measurement and analysis |
Interception |
Automatically intercepts SV messages from 3 optical ports and 1 optical interface |
|
Effective value |
Real-time display channel of amplitude, phase and frequency |
|
|
Oscillography |
Real-time display of waveform |
|
|
Sequence component |
Real-time display the positive sequence V1, negative sequence V2, zero positive sequence V0 of magnitude and phase |
|
|
Power |
Real-time display of ABC phase and three-phase active, reactive power, apparent power and power factor |
|
|
Vectorgraph |
The magnitude and phase relationship of the three-phase voltage and current are displayed in vector form |
|
|
Harmonic |
Real-time display 0 ~ 19 harmonics, and show the harmonic content in the form of histograms |
|
|
Message parameter |
Real-time display of the current message parameters, the original message and parsed message |
|
|
Abnormal |
The number of abnormal message |
|
|
Discrete |
The number of messages in each discrete |
video
|
|
