Warranty: | 3 Years | Voltage Range: | 100V, 220V, 380V |
---|---|---|---|
Current Range: | 0.05~24A | Distortion Of AC Outputs: | <0.2% (non-capacitance Load) |
Name: | Standard Sources | Stability: | 0.01% / 1min |
High Light: | Three Phase Standard Sources 0.05A,KINGSINE KS833 Standard Sources,KINGSINE Standard Sources And Calibrator |

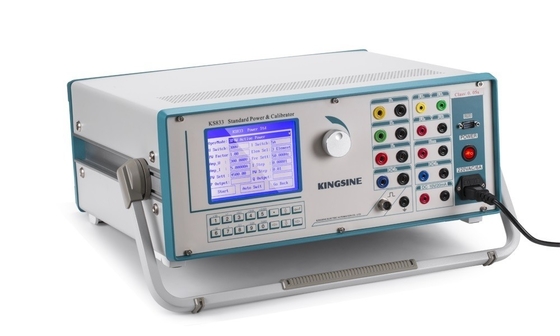

Kingsine’s standard source product KS833 applied to Grid Corporation of measurement testing centers, power companies and power plants measured ministries, national institutions at all levels of measurement tests, also applies to the railway, petroleum, chemical industry, large-scale industrial and mining enterprises and the meter manufacturers, etc.
Open protocol for software self-programming.AC voltage sources: 3x900V@3x25VA, accuracy 0.05%,AC current sources: 3x30A@3x25VA, accuracy 0.05%.
3-phase Harmonic Standard Power: 2-31x orders with 0.1 % accuracy.
DC voltage sources: 825V@20W max, accuracy 0.05%,DC current sources: 30A@25W max, accuracy 0.05%
Analog/Digital instruments Calibration,Transducer and Energy meter calibration
3-years guarantee of free repair, and life-long maintenance, Free software update and training
Output & Measuring AC Voltage | |
Available Ranges | 10V, 30V, 100V, 300V, 750V, auto-shift |
Adjustment range | 0~120%Rg |
Adjustment fineness | Range x 0.01% |
Resolution | Range x 0.01% |
Accuracy | 0.05%Rg |
Stability | 0.01% / 1min |
Output & Measuring AC Current | |
Available Ranges | 100mA, 1A, 5A, 10A, 25A; auto-shift |
Adjustment range | 0~120%Rg |
Adjustment fineness | Range x 0.01% |
Resolution | Range x 0.01% |
Accuracy | 0.05%Rg |
Stability | 0.01% / 1min |
Output & Measuring AC Power | |
Adjustment fineness | Range x 0.01% |
Resolution | Range x 0.01% |
Accuracy | 0.05%Rg (Factor>0.5) |
Stability | 0.01% / 1min |
Output & Measuring AC Frequency | |
Frequency Range | 45.000~65.000Hz |
Adjustment fineness | 0.001Hz |
Accuracy | 0.01%Rd |
Output & Measuring AC Phase Angle | |
Phase Angle Range | 0.00º~359.99º |
Adjustment fineness | 0.01º |
Resolution | 0.01 |
Accuracy | 0.05º |
Specification Of Analog/Digital instruments Calibration KS833
● Apply to the power sector, measurement department, quality inspection departments, research institutions, universities, etc.
● Applies to other production and research & development enterprise of energy meter, power distribution terminals, power management, load control, power quality, and medium voltage reactive power compensation.
● Open communications protocol to facilitate the secondary development for RTU / FTU / Power Management Terminal / Public variable measuring the terminal factory automatic verification.
● Calibrating a variety Analog Digital meter of direct U/I instruments & frequency with DC/AC 0.05% accuracy and the corresponding class digital multimeter for quality inspection, measurement and instrumentation maintenance, parts detection
Advantage Of KS833 Compatible with the relevant national Standards
KS833 Standard Source is fully compatible with the relevant national Standards:
● JJG124-93 Verification Regulation of Ammeter, Voltmeter & Ohmmeter
● GB/T767-1999 Direct Acting Indicating Analogue Electrical Measuring Instruments & Accessories
● SD110-83 Inspection Regulation of Electrical Indicating & Measuring Instruments
● JJG440-86 Verification Regulation of Frequency Single Phase Meters
● JJG603-89 Verification Regulation of Pointer Frequency Meters
● JJG 307 -1998 Verification Regulation of Verification Equipment for AC Electrical Energy Meter
● JJG596-1999 Verification Regulation of Electrical Energy Meters
● GB/T 11150-2001 National Standard of Electrical Energy Meter Inspection Instruments
● JJG (Power) 01-94 Verification Regulation of Electrical Measuring Transducers
KS803 | KS813 | KS823 | KS833 | |
AC Standard Source | √ | √ | √ | √ |
Harmonic Source | √ | √ | √ | √ |
Power Standard Source | √ | √ | √ | √ |
DC Standard Source | ○ | √ | √ | √ |
Instrument Calibration | ○ | ○ | √ | √ |
Energy Meter Calibration | ○ | ○ | ○ | √ |
Transducer Calibration | ○ | ○ | ○ | √ |
√:With the corresponding function modules;
○:Without the corresponding function modules
F&A
Q:1.How about your after-sales service?
A: We are original manufacturer and always give best and soonest after-sales service.our chief engineer Mr.Terry had travelled to different countries for providing onsite technology support,and our sales managers always provide after-sales service positively.
Q: 2. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
Q: 3.Why do we offer a three-year warranty?
A:First of all,The quality goal of KINGSINE company is that no quality failure occurs within five years of customer use.
The second,KINGSINE has been engaged in the overseas market for 12 years.Up to now,about 3000 sets of equipment have been operating overseas,and the annual failure rate is less than 1%.
The third,Our products are modular design,If there is a fault,it can be remote fault diagnosis,and then express products’ parts to customer for quick repair.
