| High Light: | Panel Mounted Power Amplifier,KA60 Power Amplifier,Power Amplifier For RTDS |
||
|---|---|---|---|

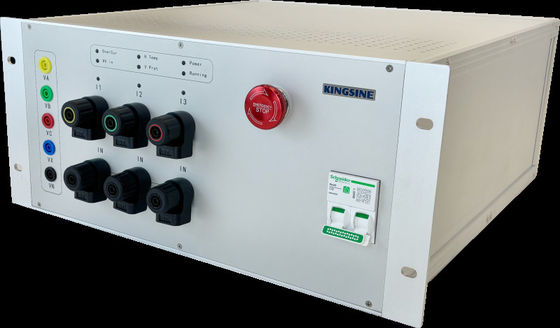

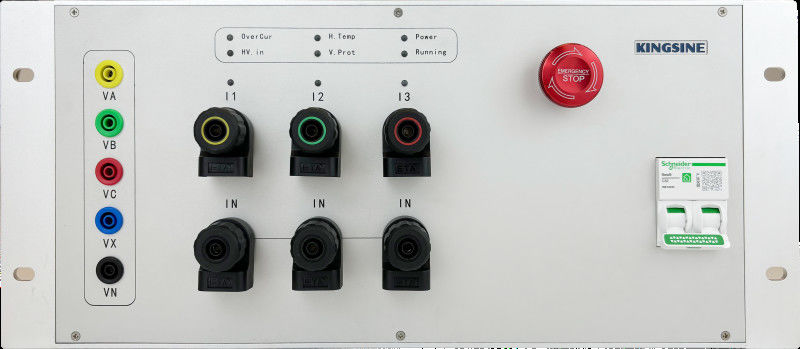

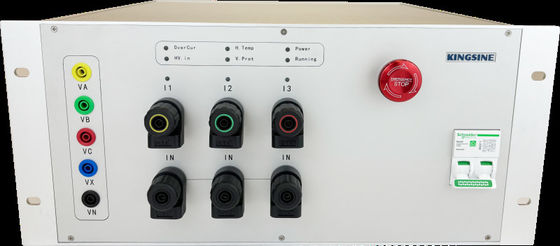

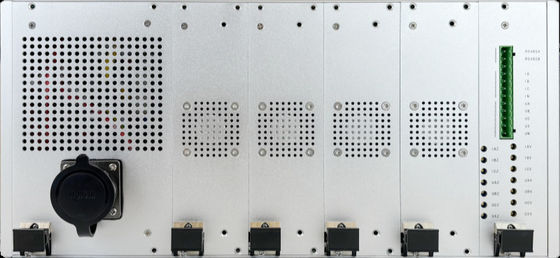

KA30 / KA60 is high accuracy, high power, Panel-mounted type real time simulation power amplifier with four-phase voltage and three-phase current;
Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values;
Able to inject DC, AC sine wave and up to 5KHz signals;
High burdens ability, real time hardware in the loop simulation.
Basic Functions
| ● | 4 channels voltage and 3 channels current. All channels magnitude,Frequency,Phase can be adjust separately. |
| ● | High linearity, High step response, whole accuracy <0.2%. |
| ● | Over-heat, Over-load self-protections. |
| ● | Convenient pause/run function. |
| ● | 19 inch standard chassis panel-mounted design,small dimension. Easy to Centralized panel. |
Specifications:
| Voltage Output | KA30 / KA60 | KA30i / KA60i | |
| Voltage Range | 4 × 0~130V RMS | 4 × 0~300V RMS | |
| Power | >65VA / Phase | >150VA / Phase | |
| Gain | 20V/V | 50V/V | |
| Voltage Output Accuracy | <±0.2% | ||
| Rate Vibration of Load Change | <±0.2% (1~30VA Power output, 57.7V) | ||
| Input Impedance | >10kΩ | ||
| Frequency Range | DC-5KHz ±1dB | ||
| Harmonic Distortion Ratio | <0.2% | ||
| Input / Output Delay | <20μS (50Hz) | ||
| Step Response | <20μS | ||
| Input Signal Level | 0~7.5V RMS | ||
| Current Output | KA30 / KA30i | KA60 / KA60i | |
| Current Range | 3 × 0~30A RMS | 3 × 0~60A RMS | |
| Power | >450VA / Phase | >800VA / Phase | |
| Gain | 4A/V | 8A/V | |
| Current Output Accuracy | <±0.2% | ||
| Rate Vibration of Load Change | <±0.2% (0~2Ω, 5A) | ||
| Input Impedance | >10kΩ | ||
| Frequency Range | DC-5KHz ±1dB | ||
| Harmonic Distortion Ratio | <0.2% | ||
| Input / Output Delay | <20μS (50Hz) | ||
| Step Response | <20μS | ||
| Input Signal Level | 0~7.5V RMS | ||
| Phase | Phase Accuracy | <0.2° |
| Power supply | AC Voltage Input | 220V±10% |
| Power | 2000 VA | |
| Frequency | 50Hz / 60Hz | |
| Others | Temperature | 0℃~ 50℃ |
| Humidity | ≤95%, no condensation | |
| Weight | <20 kg | |
| Dimension | 135mm×445mm×400mm, 3U 19inches |
Order Information
| Model | Part No. | Descriptions |
| KA30 | 205003 | 3 × 0~30A, 4 × 0~130V |
| KA30i | 205005 | 3 × 0~30A, 4 × 0~300V |
| KA60 | 205004 | 3 × 0~60A, 4 × 0~130V |
| KA60i | 205006 | 3 × 0~60A, 4 × 0~300V |
