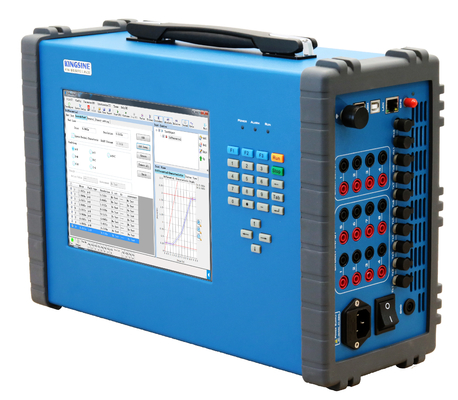

Analog Outputs KF86P Universal Relay Test Set 6x35A 425VA 6x310V105VA

Analog Outputs KF86P Universal  Relay Test Set 6x35A 425VA 6x310V105VA
Analog Outputs KF86P Universal  Relay Test Set 6x35A 425VA 6x310V105VA

Large Image :  Analog Outputs KF86P Universal Relay Test Set 6x35A 425VA 6x310V105VA

Product Details:
Place of Origin: China
Brand Name: KINGSINE
Certification: CE/ISO9001
Model Number: KF86P
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets per month
Detailed Product Description
Power: Electronic Usage: Auto Testing Machine
Weight: 16kg Size: Miniature
Warranty: 1 Year Protect Feature: Sealed
High Light:

KF86P Universal Relay Test Set

,

425VA Universal Relay Test Set

,

425VA electrical relay testing

The world's lightest & high power universal relay test set

  • 6x35A@425VA max & 6x310V@105VA max analog outputs
  • 10kg weight, easy carry on flight journey
  • Low-level signals output, energy meter testing, transducer calibration and IEC61850 testing capability for optional.



Description:



Basic Functions

The KF86P is a multipurpose, light-weight, field portable test set, it capable of testing a wide variety of electro-mechanical, solid state and microprocessor based protective relays, motor overload relays, IEC61850 testing, and similar protective devices.

  • 12 Analog Channels outputs, 6x35A & 6x310V, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.
  • Lightweight, <10Kg, easy carry on flight journey
  • The unit can be operated either manually via built-in 9.7" touchscreen and keypad, or placed under full computer control via the KRT software, running on a PC.
  • Variable battery simulator, 24~350Vdc, 70Watts max output. Easily supply power for most protection devices.
  • Fully function KRT software for test management, graphical test modules, template organized, Xrio/Rio import/export, testing result review, auto result assessment and report generate, etc.
  • Transient play back up to 3KHz
  • 8x100/1000Mbit Fiber port for IEC61850 SMV and GOOSE simulations
  • Inbuilt GPS and IRIG-B synchronized end-to-end testing capability
  • 10 binary input, dry contacts or 0-300V potential contacts capability; 4 fast binary outputs isolated each and with <1ms response time.
  • Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection
  • AC 85~265 / DC 127-350 power supply, World wide range power supply compatibility
  • 3-Year free warranty and life-long maintenance
  • Free software upgrade





Advance Feature

  • Complied IEC61850 edition 1.0 & 2.0 standard
  • Transducer calibration
  • Energy meter calibration (Mechanical & Electronic meters)
  • 10 Low-level analog outputs (8 Voltages + 2 Currents) up to 8V/20mA max.






Graphical software interface:
Analog Outputs KF86P Universal  Relay Test Set 6x35A 425VA 6x310V105VA 0



Analog Outputs KF86P Universal  Relay Test Set 6x35A 425VA 6x310V105VA 1



Analog Outputs KF86P Universal  Relay Test Set 6x35A 425VA 6x310V105VA 2

Specifications:



AC current source
Amplitude & Power 6×35A @ 424VA max each;
3×70A @ 670VA max each;
Accuracy

<0.05%Rd+0.02%Rg Typ.
<0.15%Rd+0.05%Rg Guar.

Range Range I: 3A
Range II: 35A
Automatic Range
DC Offset <3mA Typ./ <10mA Guar
Resolution 1mA
Distortion <0.025%Typ. / <0.07% Guar.
Ascends/Descent response <100us
DC Current source
Amplitude & Power 3×20A @ 400W max
Accuracy ±5mA @ <1A
±0.2% @ ≥1A
Ascends/Descent response <100us
AC voltage source
Amplitude & Power 6×310V @ 105VA max each
Accuracy

<0.015%Rd+0.005Rg Typ.

<0.04%Rd+0.01Rg Guar.

Range Range I: 30V
Range II: 310V
Automatic Range
DC Offset <10mV Typ./ <60mV Guar
Resolution 1mV
Distortion <0.015%Typ. / <0.05% Guar.
Ascends/Descent response <100us
DC Voltage source
Amplitude & Power 6×350V @ 100W max
3×700V @ 150W max
Accuracy ±10mV @ <5V
±0.2% @ ≥5V
Ascends/Descent response <100us
Frequency & Phase Angle
Frequency Range DC ~ 1000Hz, 3000Hz transient
Frequency Accuracy ±0.5ppm
Frequency Resolution 0.001Hz
Phase Range -360°~360°
Phase Accuracy <0.02° Typ. / <0.1° Guar. 50/60Hz
Phase Resolution 0.001°
Auxiliary DC Supply (Battery Simulator)
Range 10 ~ 300Vdc
Power >70W max
Accuracy 1% Rg Guar.
Binary input
Electrical isolation 10 pairs of electrical isolated each
Input impedance 5 kΩ…13kΩ(Empty contact)
Input feature 0 V~300Vdc Or dry contact
(Binary 1~4 inputs turn over potential can be programmable)
Sampling Rate 10kHz
Time resolution 10us
Time measurement range infinity
Time accuracy ±1ms @ <1s
±0.1% @ ≥1s
Debounce time 0~25ms (Software controlled)
Binary Output
Quantity 4 pairs
Type Fast speed transistor, programmable software control
AC break capacity Vmax:250V(AC)/ Imax:0.5A
DC break capacity Vmax:250V(DC)/ Imax:0.5A
Electrical isolation All pairs isolated
Time Synchronization
Satellite synchronization 1 × SMA,Use for GPS antenna interface
Support GPS and Beidou Satellite
Fiber IRIG-B 2 × ST,1 for transmission, 1 for receiving
Electric IRIG-B 1 × 6Pin 5.08mm phoenix terminal
1 for transmission, 1 for receiving
External trigger synchronization 1 × 4Pin 5.08mm phoenix terminal
external trigger input + external trigger output
Sync error <10us
Communication interface
Ethernet 2 × RJ45 ,10/100M
WIFI Inbuilt WIFI DHCP service
Serial port 1 × RS232
USB 2 × USB2
Weight & Size
Size 390mm×256mm×140mm
Weight 10kg
Display 9.7inch LCD, touch screen
Keypad Number key + direction key
Power supply
Nominal voltage 220V/110V (AC)
Allowable voltage 85 - 265 VAC ;127V~350V(DC)
Nominal Frequency 50Hz
Allowable Frequency 47-63Hz
Current 10A max
Power Consumption 1200VA max
Connection Type Standard AC socket 60320
Working environment
Operating temperature -10~+55 ℃
Relative humidity 5~95%,Non-condensation
Storage temperature -20℃ ~ +70℃
Atmospheric pressure 80kPa~110 kPa(altitude 2000m or lower)



Advance:



(Optional modules)

IEC61850 functions:

Fully complying IEC61850 Sampling value and GOOSE; (IEC61850-9-1, IEC61850-9-2/(LE), IEC60044-7/8)
Able to simultaneously output sampling value and analog signals, or subscriber and publish GOOSE message and relay contact binary I/O function.
Up to 36 sampling value channels can be mapped.



Fiber port (LC type)
Type 100Base-FX (100Mbit,Fiber, full duplex)
Port Number 8 Pairs
Cable model 62.5/125μm(Multiple-mode fiber, orange)
Wave length 1310nm
Transmission distance > 1Km
Status indication SPD Green (lights): active connection
LinkAcT Yellow (blinking): data exchange


10 Low-Level channels signal output function:

Low-level signal output
Output channels 10 channels, 8 Voltage outputs + 2 Current outputs
Output port type Phoenix terminal
Output range 8x0~8Vrms; 2x0~20mA
Accuracy

(0.01~0.8 Vrms/0~2mA):<0.05% Typ. / <0.1% Guar.

(0.8~8 Vrms/2~20mA): <0.02% Typ. / <0.05% Guar.

Resolution 250µV
Harmonic(THD%) < 0.05% Typ. / <0.1% Guar.
Frequency range DC~1.0kHz, transient 3KHz
Frequency accuracy 0.002%(Normal frequency)
Frequency resolution 0.001Hz
Phase range 0~359.9°
Phase accuracy <0.02°,50/60Hz
Phase resolution ±0.001°







Transducer Calibration Function:

DC Measurement Input
Voltage Input Range 0~±10V dc
Max Input ±11V dc
Accuracy Accuracy <0.05% rg Typ. <0.02% rg Guar.
Input Impedance 1M ohm
Current Input Range 0~±1mA / 1~±20mA, auto range
Max Input 600mA
Accuracy Accuracy <0.05% rg Typ. <0.02% rg Guar.
Input Impedance 15 ohm




Energy Meter Calibration Function:

Energy Meter Calibration
Sensor Usage Mechanical meters / Electronic meters
Sensor Output High lever:>4.5V, Low level:<0.2V
Pulse Input 1 pulse input port, 5Vdc high level valid only.
Pulse Range 500KHz pulse input Max.
Pulse Output 1 Transistor output, Open-collector, 5Vdc/5mA
