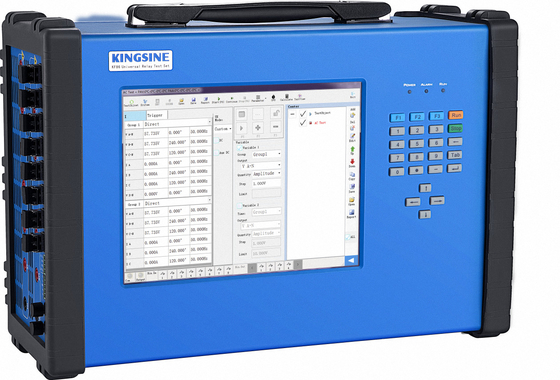

High Power Protection Relay Testing IEC61850 KF86P 6x35A& 6x310V

High Power Protection Relay Testing IEC61850 KF86P 6x35A& 6x310V
High Power Protection Relay Testing IEC61850 KF86P 6x35A& 6x310V

Large Image :  High Power Protection Relay Testing IEC61850 KF86P 6x35A& 6x310V

Product Details:
Place of Origin: China
Brand Name: KINGSINE
Certification: CE/ISO9001
Model Number: KF86P
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 100 sets /month
Detailed Product Description
Power: 6x35A@425VA Max & 6x310V@105VA Max Analog Outputs Usage: Universal Testing Machine
Weight: Around 10Kg
High Light:

High Power Protection Relay Testing


IEC61850 Protection Relay Testing


6x310V protective relay test set

High Power Protection Relay Testing IEC61850 KF86P 6x35A& 6x310V​


(Recently shipped to the US of KF86P equipment and accessories )

Description of complying IEC61850 KF86P relay tester

KINGSINE KF86 has light weight 10kg, very small size (390mm*256mm*140mm) for easy carry on flight journey.

6x35A@425VA max & 6x310V@105VA max analog outputs

Compact 6-phase relay test set with high accuracy & full solution (complying IEC61850 sampled value and GOOSE), fully meet all the requirements for detection and debugging of IEC61850 IEDs, Merge Units, station control systems and traditional protection relays.

So far KINGSINE brand products have been successfully served clients across more than 80 countries over the world.

Feature Of complying IEC61850 KF86P relay tester

12 Analog Channels outputs, 6x35A & 6x310V, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.

The unit can be operated either manually via built-in 9.7" touchscreen and keypad, or placed under full computer control via the KRT software, running on a PC.
Variable battery simulator, 24~350Vdc, 70Watts max output. Easily supply power for most protection devices.
Fully function KRT software for test management, graphical test modules, template organized, Xrio/Rio import/export, testing result review, auto result assessment and report generate, etc.
Transient play back up to 3KHz
8x100/1000Mbit Fiber port for IEC61850 SMV and GOOSE simulations
Inbuilt GPS and IRIG-B synchronized end-to-end testing capability
10 binary input, dry contacts or 0-300V potential contacts capability; 4 fast binary outputs isolated each and with <1ms response time.
Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection
AC 85~265 / DC 127-350 power supply, World wide range power supply compatibility
3-Year free warranty and life-long maintenance
Free software upgrade


Advantage Of complying IEC61850 sampled value and GOOSE KF86P relay tester

AC current source
Amplitude & Power 35A @ 424VA max each;
70A @ 670VA max each;
Accuracy <0.05%Rd+0.02%Rg Typ.
<0.15%Rd+0.05%Rg Guar.
Range Range I: 3A
Range II: 35A
Automatic Range
DC Offset <3mA Typ./ <10mA Guar
Resolution 1mA
Distortion <0.025%Typ. / <0.07% Guar.
Ascends/Descent response <100us
DC Current source
Amplitude & Power 3×20A @ 400W max
Accuracy ±5mA @ <1A
±0.2% @ ≥1A
Ascends/Descent response <100us
AC voltage source
Amplitude & Power 6×310V @ 105VA max each
Accuracy <0.015%Rd+0.005Rg Typ.
<0.04%Rd+0.01Rg Guar.
Range Range I: 30V
Range II: 310V
Automatic Range
DC Offset <10mV Typ./ <60mV Guar
Resolution 1mV
Distortion <0.015%Typ. / <0.05% Guar.
Ascends/Descent response <100us
DC Voltage source
Amplitude & Power 6×350V @ 100W max
3×700V @ 150W max
Accuracy ±10mV @ <5V
±0.2% @ ≥5V
Ascends/Descent response <100us
Frequency & Phase Angle
Frequency Range DC ~ 1000Hz, 3000Hz transient
Frequency Accuracy ±0.5ppm
Frequency Resolution 0.001Hz
Phase Range -360°~360°
Phase Accuracy <0.02° Typ. / <0.1° Guar. 50/60Hz
Phase Resolution 0.001°
Auxiliary DC Supply (Battery Simulator)
Range 8 ~ 60Vdc (Max Load Current 1.16A) Accuracy<2%
60 ~ 120Vdc (Max Load Current 0.58A) Accuracy<1%
~ 350Vdc (Max Load Current 0.2A) Accuracy<0.5%
Power >69W max
Resolution 10mV
Protection Short-circuit protection
Overload Protection Yes
Isolation Isolated from other terminal
Binary input
Electrical isolation 10 pairs of electrical isolated each
Input impedance 5 kΩ…13kΩ(Empty contact)
Input feature 0 V300Vdc Or dry contact
(Binary 1~4 inputs turn over potential can be programmable)
Sampling Rate 10kHz
Time resolution 10us
Time measurement range infinity
Time accuracy ±1ms @ <1s
±0.1% @ 1s
Debounce time 0~25ms (Software controlled)
Binary Output
Quantity 4 pairs
Type Fast speed transistor, programmable software control
AC break capacity Vmax:250V(AC)/ Imax:0.5A
DC break capacity Vmax:250V(DC)/ Imax:0.5A
Electrical isolation All pairs isolated
Time Synchronization
Satellite synchronization 1 × SMA,Use for GPS antenna interface
Support GPS and Beidou Satellite
Fiber IRIG-B 2 × ST,1 for transmission, 1 for receiving
Electric IRIG-B 1 × 6Pin 5.08mm phoenix terminal
1 for transmission, 1 for receiving
External trigger synchronization 1 × 4Pin 5.08mm phoenix terminal
external trigger input + external trigger output
Sync error <10us
Communication interface
Ethernet 2 × RJ45 ,10/100M
WIFI Inbuilt WIFI DHCP service
Serial port 1 × RS232
USB 2 × USB2
Weight & Size
Size 390mm×256mm×140mm
Weight 10kg
Display 9.7inch LCD, touch screen
Keypad Number key + direction key
Power supply
Nominal voltage 220V/110V (AC)
Allowable voltage 85 - 265 VAC ;127V350V(DC)
Nominal Frequency 50Hz
Allowable Frequency 47-63Hz
Current 10A max
Power Consumption 1200VA max
Connection Type Standard AC socket 60320



Inquiry us for more details.



Q:1. What is the shipping method?
A: To be more efficient, we mostly use air freight. If you prefer other way of transportation, we can according to your request.


Q: 2.How long is the warranty period?

A:We provide 3-years guarantee of free repair and life-long maintenance.


Q: 3.Why do we offer a three-year warranty?

A:First of all,The quality goal of KINGSINE company is that no quality failure occurs within five years of customer use.

The second,KINGSINE has been engaged in the overseas market for 12 years.Up to now,about 3000 sets of equipment have been operating overseas,and the annual failure rate is less than 1%.

The third,Our products are modular design,If there is a fault,it can be remote fault diagnosis,and then express products’ parts to customer for quick repair.
