Created with Pixso. 7 Channels Outputs Substation Relay Test Set K68i High Speed Manual Mode

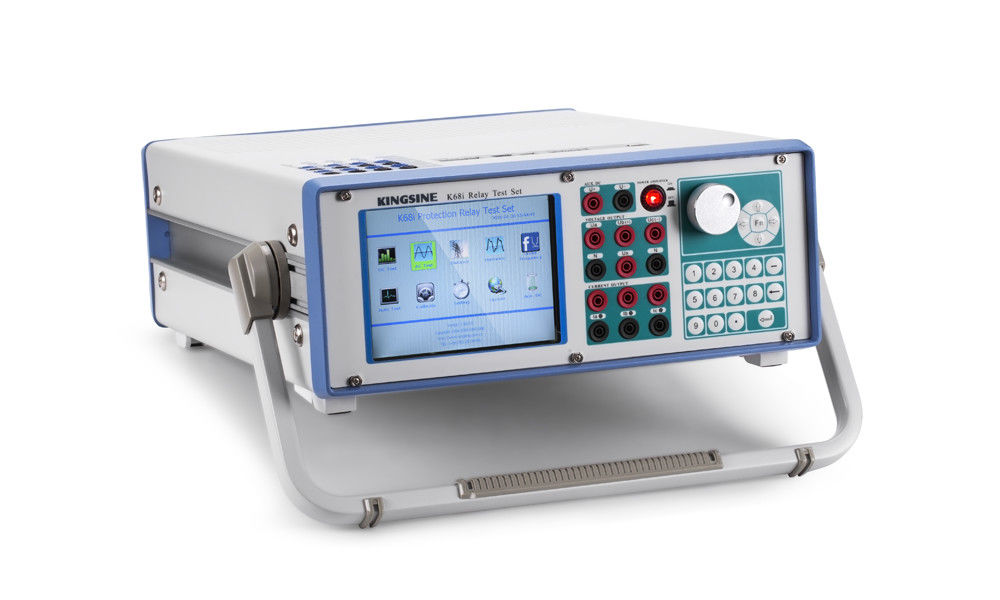

7 Channels Outputs Substation Relay Test Set K68i High Speed Manual Mode

Brand Name: KINGSINE
Model Number: K68i
MOQ: 1 set
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: T/T in advance, L/C
Detail Information
Place of Origin:
China
Certification:
ISO9001,CE
Guarantee:
3-Years
Lightweight:
23.5Kg
Outputs:
7 Channels (4V + 3I)
Dimensions(W X D X H):
360×480×140(mm)
Supply Ability:
50 sets/M
Highlight:

7 Channels Outputs Relay Test Set

,

Substation Relay Test Set K68i

,

High Speed Manual Relay Test Set

Product Description

Able of what K68 series can test

ItemsANSI® No.
Distance protection relay21
Synchronising or synchronism-check relays25
Undervoltage relays27
Directional Power relays32
Undercurrent or underpower relays37
Negative sequence overcurrent relays46
Overcurrent/ground fault relays50
Inverse time overcurrent/ground fault relays51
Power factor relays55
Overvoltage relays59
Voltage or current balance relays60
Directional overcurrent relays67
Directional ground fault relays67N
DC overcurrent relays76
Phase-angle measuring or out-of-step protection relays78
Automatic reclosing devices79
Frequency relays81
Motor overload protection relays86
Differential protection relays87
Directional voltage relays91
Voltage and power directional relays92
Tripping relays94
Voltage regulating relays
Overimpedance relays, Z>
Underimpedance relays, Z
Time-delay relays



Characteristic

  • 7 Channels (4V + 3I) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 20x harmonics.
  • Variable battery simulator, DC 0-300V, 120Watts max.
  • Quick relay testing facility in Manual mode
  • Switch on to fault test(SOTF)
  • GPS sync end-to-end testing
  • Online Vector display
  • Automatic test report creation
  • Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection



Parameters

Voltage Outputs
Output Range & Power4×300 V ac (L-N)120 VA max each
2×600 V ac (L-L)240 VA max each
1×600 V dc (L-L)240 W max
3×300 V dc (L-N)120 W max each
Accuracy

±2 mV @ 0.2~2 V ac
<0.12%Rd+0.05Rg Guar. @ 2~300V ac
<0.07%Rd+0.03Rg Typ. @ 2~300V ac

±10mV @ 0.5 V~5 V dc
±0.5% @ 5 V~300 V dc

Resolution1mV
Distortion<0.1% Guar. / <0.05%Typ.
Current Outputs
Output Range & Power3×35A ac (L-N)450 VA max each
1×105A ac (3L-N)1200 VA max
3×20A dc (L-N)300W max each
Accuracy

±1 mA @ 0.2A~0.5A ac
<0.15%Rd+0.05Rg Guar. @ 0.5~35A ac
<0.07%Rd+0.03Rg Typ. @ 0.5~35A ac

±5mA @ 0.2 A~1 A dc
±0.5% @ 1 A~20 A dc

Resolution1mA
Distortion<0.1% Guar. / <0.05%Typ.
Frequency Output
Range5~1000 Hz
Accuracy<1ppm @ 5~65 Hz
<10ppm @ 65~450 Hz
<20ppm @ 450~1000 Hz
Resolution0.001 Hz
Phase Output
Range-360°~360°
Accuracy<0.05° Typ. / <0.1° Guar.
Resolution0.001°
Aux. DC Voltage Source (Battery simulator)
Range0~300V @ 180W max
Binary Input
Quantity8pairs
Input Characteristics0~400Vdc / Potential free
Time Resolution<0.1ms
Max. Measuring Time999.999s
Debounce Time0~25ms
Binary Output
Quantity4pairs
TypePotential free relay contacts, software controlled
Break Capacity

Vmax:300Vac Imax:4A Pmax:1000VA
Vmax:300Vdc Imax:4A Pmax:300W

Synchronization
Synchronization Mode External GPS (Optional)
Harmonic
Superimposed Numbers2~20times
Power supply & Environment
Nominal Input Voltage110V/220V/230Vac appointed, ±10%
Nominal Frequency50/60Hz
Permissible Frequency45Hz~65Hz
Power Consumption1500 VA max
Connection TypeStandard AC socket 60320
Operating Temperature0℃~55℃
Storage Temperature-20℃~75℃
Humidity<95%RH, non-condensing
Others
PC ConnectionRJ45 Ethernet, 10/100/1000M
Grounding Terminal4mm banana socket
Weight23.5 Kg
Dimensions(W x D x H)360×480×140(mm)
