| Brand Name: | Kingsine |
| Model Number: | KS1212 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T in advance ,L/C |

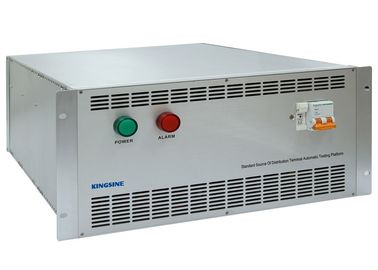

KS1212 is high accuracy, high power, wide output range Standard Source product develop by KINGSINE which is customize for distribution terminal automation testing platform
Features
24 output Channels, 12x450V + 12x100A. Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 20x harmonics
High burdens ability, 750VA / each current sources, total power up to 1500VA of all current channels, and 300VA / each voltage sources, total power up to 600VA of all voltage channels.
In-built GPS module & IRIG-B synchronize function.
19 inch standard chassis design,small dimension. Easy to Centralized panel.
Main technical parameters
| AC Voltage output | |
| Range | 12×0...450 V |
| Power | >300VA/Phase |
| Accuracy | <±0.05% |
| Resolution | 1mV |
| AC Current Output | |
| Range | 12×0...100 A |
| Power | >750VA/ Phase |
| Accuracy | <±0.05% |
| Resolution | 1mA |
| DC Voltage output | |
| Range | 12×0...450 V |
| Power | >300VA/ Phase |
| Accuracy | <±0.2% |
| Resolution | 1mV |
| DC Current output | |
| Range | 6×0...50 A |
| Power | >500 VA/ Phase |
| Accuracy | <±0.2% |
| Resolution | 1mA |
| Others | |
| Frequency | Range | 5...1000 Hz |
| Accuracy | <0.001 Hz at 0...65 Hz | |
| <0.01 Hz at 65...450 Hz | ||
| <0.02 Hz at 450...1200 Hz | ||
| Resolution | 0.001 Hz | |
| Phase | Range | -360°...360° |
| Accuracy | <0.2° | |
| Resolution | 0.1° | |
| Timing | Range | 0.1 ms ... 1.5×105 s |
| Accuracy | <1 ms | |
| Harmonic | ||
| Harmonic Times | 2...20 Times | |
| Power supply | ||
| AC Voltage | 220V±20% | |
| Range | 85V...264V AC | |
| Power | 5000 VA | |
| Frequency | 47 Hz...65 Hz | |
| Operation Conditions | ||
| Temperature | -20℃…70℃ | |
| Humidity | ≤95%, | |
| Others | ||
| Weight | <55 kg | |
| Dimension | 358mm×149mm×297mm | |
| Communication Port | 1×RJ45 | |
