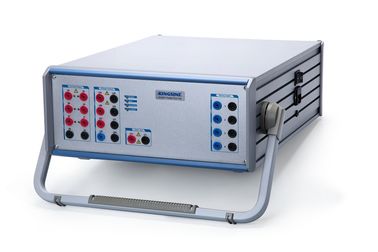

| Brand Name: | KINGSINE |
| Model Number: | K3063i |
| MOQ: | 1 set |
| Price: | Negotiation |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T in advance,L/C |
a. Current
| 1. No. of Generators | 6 no. |
| 2. Capacity | 6x30A /3x60A /1x180Awithout using external amplifier |
| 3. Power | 6x220VA / 3x450VA / 1x900VA |
| 4. Distortion | <0.5% |
| 5. Resolution | 1.0 mA |
| 6. Accuracy | ±1mA(0.2A～0.5A), ±0.1%(0.5A～20A),±0.2%(20A～60A) |
b. Voltage
| 1. No. of Generators | 6 no. |
| 2. Capacity | 6 Ph 0 to 130Vac |
| 7th Voltage 0 to 130Vac | |
| 1-Ph 0 to 260Vac | |
| 3. Power | 7x65VA |
| 4. Distortion | <0.5% |
| 5. Resolution | 1mV(0.2V～10V),10mV (10V～300V) |
| 6. Accuracy | ±2mV(0.2V～2V), ±0.1%(2V～300V) |
c. Binary Inputs
| 1. No. | 8 pairs. (min) |
| 2. Input | 0-250 V AC/DC or potential free contacts |
| 3. Trigger criteria | Toggling of potential free contacts or dc-voltage compared to threshold voltage |
d. Binary Outputs
| 1. No. | 4 pairs. (min) |
| 2. Type | Potential free contacts controlled by software |
| 3. Breaking Capacity | DC- 2A (max), 250 V DC |
| 4. Breaking Capacity | AC- 2A (max), 250 V AC |
e. Generator General
| 1.Signal Sine | 0-1000Hz |
| 2.Transient | DC-1000Hz |
| 3.Frequency (Acc.) | 0.001% or better |
| 4.Frequency (Res.) | 0.001Hz |
| 5.Phase Angle Range | (-)360° to (+)360° |
| 6.Phase Angle (Acc.) | Error<0.1% |
| 7.Phase Angle (Res.) | 0.001° |
f. Using environment
| 1.environment temperature | -20ºC～75ºC |
| 2. Altitude | ≤4000m |
| 3. ambient humidity | relative humidity ≤95% no condensation |
g. Phase angle
| 1.range | -360°～ +360 |
| 2.accuracy | ±0.2 |
| 3.step and resolution | step variable 0.001°,resolution 0.1 |
h. Power supply
AC220V±20%,50HZ±10%,15A(Max)
g. Size and weight
| 1.size | 360×145×440mm(W×H×D) |
| 2.weight | 17kg |
