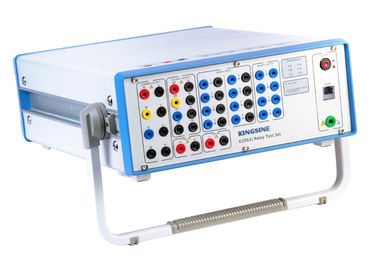

High Voltage Protection Relay Testing
Relay protection test devices
1.Easy test
2.operation menu, Simple operation
3.Nominal input voltage:220VAC
4.Power:1000VA
1. Unique self-protection system assure the powerful protection when instrument is operating, automatic stop the output when the network is abnormal ;
2. Unique power switch and amplifier technology, so the output precision and power efficiency and factor are increased, which conforms to international tendency of energy save and environmental protection;
3. With alarm function of housing grounding testing and external voltage input, to guaranty personal security;
4. Two in one of meter and source, with function of both internal and external testing, self-calibration, oscillograph, and the duration of each oscillograph reaches 50S (optional function);
5. Offer independent Aux. DC to tested devices, 0 ~ 300V/0.6A (Poleless and adjustable);
6. Function of transducer and energy meter testing (optional function);
7. Testing interface offer unique output monitoring function and Pre-curve-tracing function, helps more on the spot analysis;
Technical Data of K3063i
Voltage generators |
||
Setting Range |
4-phase AC (L-N) |
4 x 0 ... 300 V |
2-phase AC (L-L) |
2 x 0 ... 600 V |
|
Power |
4-phase AC (L-N) |
4 x 110VA, at 0 ... 300 V |
2-phase AC (L-L) |
2 x 220VA, at 0 ... 600 V |
|
Accuracy |
<0.07% reading + 0.03% range guaranteed at 0 ... 300 V <0.02% reading + 0.01% range typical at 0-300V |
|
Resolution |
1mV |
|
Current generators |
||
Setting Range |
6-phase AC (L-N) |
6 x 0 ... 30 A |
3-phase AC (L-N) |
3 x 0 ... 60 A (Group A II B) |
|
1-phase AC (3L-N) |
1 x 0 ... 180 A |
|
Power |
6-phase AC (L-N) |
6x 450VA , at 0 ... 30A |
3-phase AC (L-N) |
3x 520VA, at 0 ... 60A (Group A II B) |
|
1-phase AC (3L-N) |
1 x 1000 VA, at 0 ... 180A (Max.) |
|
Accuracy |
<0.07% reading + 0.06% range guaranteed at 0-30A <0.02% reading + 0.02% range typical at 0-30A |
|
Resolution |
1mA |
|
Generators, general |
||
Frequency |
Range |
0 ... 1000 Hz |
Accuracy / drift |
Error < 0.001Hz at 10 ... 65Hz, Error < 0.01Hz at 65Hz...450Hz Error < 0.02Hz at 450Hz...1000Hz |
|
Resolution |
0.001Hz |
|
Phase |
Range |
- 360° ... +360° |
Accuracy / drift |
Error < 0.2 ° |
|
Resolution |
0.1° |
|
Timer |
Range |
Infinite |
Accuracy / drift |
Error<0.1ms |
|
DC generators |
||
Voltage ranges |
0 ... 300V/180W |
|
Current ranges |
0 ... 20A/300W |
|
Accuracy |
<0.07% reading + 0.03% range guaranteed at 0-300V <0.04% reading + 0.02% range typical at 0-300V |
|
<0.14% reading + 0.06% range guaranteed at 0-20A <0.05% reading + 0.02% range typical at 0-20A |
||
Resolution |
1mA; 1 mV |
|
Aux DC Supply |
||
Range |
0...300V/0.6A |
|
Binary inputs |
||
Number |
8 pairs |
|
Compatible Voltage |
10V ... 250V DC |
|
Binary outputs |
||
Number |
4 Pairs |
|
Capacity |
250V/3A AC/DC |
|
Synchronization |
||
Synchronization mode |
GPS |
|
Harmonic |
||
Harmonic overlap times |
2 ... 20 times |
|
Power supply |
||
Nominal input voltage |
220VAC±20% |
|
Power |
1000VA |
|
Nominal frequency |
47Hz….65Hz |
|
Environmental conditions |
||
Operation temperature |
-5°C ... 55 °C |
|
Storage temperature |
-20°C ... 75 °C |
|
Humidity range |
5% ... 90 %, non-condensing |
|
Weight |
20 KG |
|
Dimensions |
460(D)×140 (W)×360 (H) mm |
|
PC connection |
RJ45 |
K30 Series Protection Relay Test Set:
Model |
Channels |
AC Outputs |
K3063i / K3063Li |
10 output channels |
6*30A/3*40A/4*300V |
K3030i / K3030Li |
7 output channels |
3*30A/4*300V |
K3066 |
13 output channels |
6*20A/3*40A/7*130V |
K3063 |
10 output channels |
6*20A/3*40A/4*130V |
K3040 |
7 output channels |
3*40A/4*130V |
K3030 |
7 output channels |
3*30A/4*130V |
Major functions:
Items |
IEEE(R) No. |
Synchronization relay |
|
Fault transplay |
|
GPS Synchronization |
|
Overcurrent relays |
50/76 |
Inverse time overcurrent relays |
51 |
Undercurrent relays |
37 |
Ground fault relays |
50 |
Directional overcurrent relays |
67 |
Directional ground fault relays |
67N |
Overvoltage relays |
59 |
Undervoltage relays |
27 |
Directional voltage relays |
91 |
Directional power relays |
32 |
Power factor relays |
55 |
Differential protection (differential circuits) |
87 |
Distance protection equipment (phase by phase) |
21 |
Negative sequence overcurrent relays |
46N |
Motor overload protection |
51/86 |
Automatic reclosing devices |
79 |
Tripping relays |
94 |
Voltage regulating relays |
|
Overimpedance relays, Z> |
|
Underimpedance relays, Z |
|
Time-delay relays |
|
