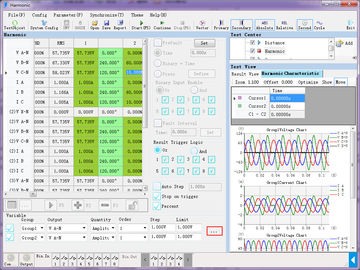

Optional PC Software K68i Protective Relay Test Set

optional PC software K68i protective relay test set

Client-tester interface form

1 Test process

• The interaction process between the client and the tester interface is shown in the following diagram, which detail describes the test process and the following information:
• Tester interface software needs to provide online interface, test start interface, results query interface, test interrupt interface;
• The result query interface is continuous called during the experiment until the end of the experiment;
• While the interface link library releasing, the interface link library also needs to actively release the online SCOKET;
