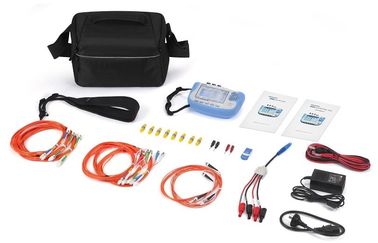

IEC61850 KF932 Differential Protection Relay Testing

IEC61850 KF932 Differential Protection Relay Testing
IEC61850 KF932 Differential Protection Relay Testing

Large Image :  IEC61850 KF932 Differential Protection Relay Testing

Product Details:
Place of Origin: China
Brand Name: kingsine
Certification: CE/ISO9001
Model Number: KF932
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: L/C,T/T
Supply Ability: 100 sets/month
Detailed Product Description
Battery Capacity: 4400mAh Power Consumption: ≦6W
Power Input: AC100~240V,50/60Hz,0.7A Power Output: DC15V,1.66A
Working Power Supply: Continuous Work For More Than 10 Hours Model: 100Base-FX
High Light:

IEC61850 Differential Relay Testing

,

IEC61588 Protection Relay Tester

,

IEC61850 KF932

IEC61850 KF932 Differential Protection Relay Testing



Description Of IEC61850 Relay Test Set



Relay protection microcomputer test device plays a key role in operating electricity power systems reliably and safely. It is the testing device used in professional field of microcomputer protection, relay protection, excitation measurement, fault recorder.



Feature Of Intelligent Relay Tester



KF932 IEC61850 Relay Tester is developed based on the intelligent substation related standards to analyze the SV, GOOSE,IRIG-B and IEEE1588 message, calculate the magnitude, phase and frequency of voltage and current, and real-time monitor of GOOSE virtual terminal.
Receiving closed-loop testing of smart devices via SV, GOOSE message sending, subscription and publication of GOOSE messages;
Phase detection function is achieved by analyzing and calculating different control blocks; Binary input and output of the hard contact can be completed on the intelligent operation box transmission delay and SOE on the accuracy of the measurement;
SV and GOOSE exception statistics analysis and synchronization function to achieve the integration of the unit discrete, lost frame and absolute delay measurement.



Specification Of Overcurrent Relay Test Set



1 Power Supply

Power Supply
Battery Large capacity lithium battery
Power Adapter Input:AC100~240V,50/60Hz,0.7A
Output:DC15V,1.66A

2 Power consumption

Power consumption
Power consumption ≦6W
Working power supply Continuous work for more than 10 hours

3 Communication port interface

Optical Ethernet communication port
Model 100Base-FX (100M Full duplex optical fiber network)
Port Type LC
Wavelength 1310nm
Transmission distance ≧1km
Application IEC61588 Times and other network messages



Optical serial port communication interface
Port number 2 pcs
Port Type ST
Wavelength 62.5/125μmMultimode fiber,Wavelength850nm
Transmission distance ≧1km
Application Receive/Send IEC60044-7/8(FT3),IRIG-B Timing signal transceiver





Advantage Of Frequency Relay Test System



No. Analysis Item Analysis content
SMV Measurement and analysis Interception Automatically intercepts SV messages from 3 optical ports and 1 optical interface
Effective value Real-time display channel of amplitude, phase and frequency
Oscillography Real-time display of waveform
Sequence component Real-time display the positive sequence V1, negative sequence V2, zero positive sequence V0 of magnitude and phase
Power Real-time display of ABC phase and three-phase active, reactive power, apparent power and power factor
Vectorgraph The magnitude and phase relationship of the three-phase voltage and current are displayed in vector form
Harmonic Real-time display 0 ~ 19 harmonics, and show the harmonic content in the form of histograms
Message parameter Real-time display of the current message parameters, the original message and parsed message
Abnormal
message
The number of abnormal message
Discrete
Value
The number of messages in each discrete
GOOSE analytic and analysis Interception Automatically intercepting GOOSE messages from 3 optical ports
Virtual terminal Real-time display of the status of the virtual terminal, support a variety of display. Automatically record the reset time of the virtual terminal.
Message Real-time display of the current message value and the original message value.
Abnormal message The number of abnormal message







FAQ



Q: Can the relay protection tester show the impedance curve?

A: Yes.

Q: What is your technical advantages?

A: The most light and powerful handheld digital relay tester for IEC61850 testing;Applied to digital protection relay, Measure & control device, IEC61850 Complying IEDs ,Merge Unit and substation control system testing and detection.

Q: How long is the warranty period?

A: 3-Years guarantee of free repair and life-long maintenance
