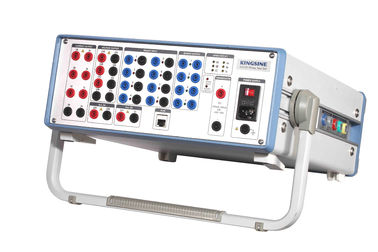

Protective Overcurrent Relay Testing
Description Of Secondary Current Injection Test System
Relay protection microcomputer test device plays a key role in operating electricity power systems reliably and safely. It is the testing device used in professional field of microcomputer protection, relay protection, excitation measurement, fault recorder.
Feature Of Intelligent Relay Tester
| ● | Universal Relay Test Applications |
| ● | 10 Channels (6x35A & 4x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics. |
| ● | Variable battery simulator, DC 0-350V, 140Watts max. |
| ● | Transient play back up to 3KHz |
| ● | Fully function KRT software testing modules |
| ● | Graphical test modules and templates for testing of various relays |
| ● | Quick relay testing facility in Manual mode |
| ● | Shot/Search/Check, Point & Click testing |
Specification Of Overcurrent Relay Test Set
| Voltage Outputs | ||
| Output Range & Power | 4×310 V ac (L-N) | 124 VA max each |
| 3×350 V dc (L-N) | 140 W max each | |
| Accuracy | ±2mV @ <2V ac <0.015%Rd+0.005Rg Typ. @ 2~310V ac <0.04%Rd+0.01Rg Guar. @ 2~310V ac |
|
| ±10mV @ <5V dc ±0.5% @ ≥5V dc |
||
| Voltage Range | Range I : 30V | |
| Range II : 310V | ||
| Automatic Range | ||
| DC Offset | <10mV Typ./ <60mV Guar | |
| Resolution | 1mV | |
| Distortion | <0.015%Typ. / <0.05% Guar. | |
| Current Outputs | ||
| Output Range & Power | 6×35A ac (L-N) | 450 VA max each |
| 3×70A ac (2L-N) | 850 VA max each | |
| 1×100A ac (6L-N) | 1200 VA max | |
| 3×20A dc (L-N) | 300W max each | |
| Accuracy | ±1mA @ <0.5A ac <0.02%Rd+0.01Rg Typ. @ 0.5A~35A ac <0.05%Rd+0.02Rg Guar. @ 0.5A~35A ac |
|
| ±5mA @ <1A dc ±0.5% @ ≥1A dc |
||
| Current Range | Range I: 3A | |
| Range II: 35A | ||
| Automatic Range | ||
| DC Offset | <3mA Typ./ <10mA Guar | |
| Resolution | 1mA | |
| Distortion | <0.025%Typ. / <0.07% Guar. | |
| Frequency & Phase Angle | ||
| Frequency Range | DC~1KHz, 3KHz transient | |
| Frequency Accuracy | ±0.5ppm | |
| Frequency Resolution | 0.001 Hz | |
| Phase Range | -360°~360° | |
| Phase Accuracy | <0.02° Typ. / <0.1° Guar. 50/60Hz | |
| Phase Resolution | 0.001° | |
Advantage Of Frequency Relay Test System
Additional Information (Optional Modules)
| Energy Meter Calibration Hardware is ready, to be active | |
| Sensor Usage | Mechanical meters / Electronic meters |
| Sensor Output | High lever:>4.5V, Low level:<0.2V |
| Pulse Input | 1 pulse input port, 5Vdc high level valid only. |
| Pulse Range | 500KHz pulse input Max. |
| Pulse Output | 1 Transistor output, Open-collector, 5Vdc/5mA |
FAQ
Q: Can the relay protection tester show the impedance curve?
A: Yes.
Q: What is your technical advantages?
A: High precision and powerful 6-phase relay test set and commissioning tool;
Power & Accuracy in one single PACKAGE, 6x35A, 4x310V analog outputs;
The ever-expanding test library templates
Q: How long is the warranty period?
A: 3-Years guarantee of free repair and life-long maintenance
video
video
video
video
|
