Secondary Injection Test Set
Created with Pixso. Frequency SV KF900A Relay Protection Tester

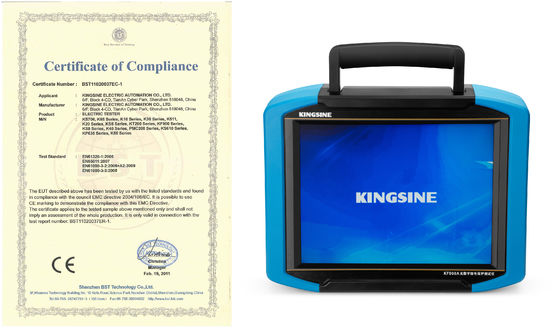

Frequency SV KF900A Relay Protection Tester

Brand Name: Kingsine
Model Number: KF900A
MOQ: 1 set
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: L/C,T/T
Detail Information
Place of Origin:
China
Certification:
CE/ISO9001
Display:
10.4 Inch High-definition Capacitive LCD Screen
Size:
320mm×250mm×100mm(L×W×H)
Weight:
<2.75kg
USB Port:
1
GPS Port:
1 Channel, GPS Signal Receiver Internal
Measure Accuracy:
≤0.01°
Supply Ability:
100 sets/month
Highlight:

SV KF900A Relay Protection Tester

,

SV KF900A

,

10.4 inch Relay Protection Tester

Product Description

Frequency SV KF900A Relay Protection Tester



Description Of Frequency Protection Relay Test Device Support SV

Universal protection relay test function, With fully function of Manual test, state sequencer, Harmonic, recloser test , Line differential, Distance, Mutation distance, Overcurrent, Zero sequencer, Ramping, Power direction, Differential rate, Differential Harmonic, Overexcitation protection, Synchronize, Reserve power supply test, Busbar differential, Frequency test, Dv/Df test, etc.



Feature Of Frequency Protection Relay Test Kit Support SV

Supports graphical display of SCD files, graphically displays IED device interconnections and connections of virtual terminal loops; with SCD file comparison function, and generates comparison reports;
Real-time message receiver compared with the SCD file to achieve consistency check of the SCD file;
Support recorder and PCAP file off-line analyze function, with PCAP message playback function.
Support IRIG-B sending function, can be used as time source, with 6 channels separate fiber IRIG-B signal.
Support Polarity checking function, support use DC method to checking polarity of protection/metering core of electromagnetic current transformer and electronic current transformer;
With optical power measurement function, off-site phase detection function, built-in lithium battery power supply, working time is more than 8 hours continuously.



Specification Of Frequency Protection Relay Test System Support SV

Measure accuracy Voltage and current measurement accuracy error ≤0.05%
Frequency accuracy is better than 0.001Hz in the range of 15~1000Hz
Phase measurement accuracy error ≤0.01°
sending Accuracy voltage and current measurement accuracy error ≤0.05%
Frequency accuracy is better than 0.001Hz in the range of 10~1000Hz
Phase output accuracy error ≤0.01°
SV message output dispersion ≤±80ns
Fiber serial port transfer delay ≤100ns
SV output synchronize Time error between Fiber port <1μs
Power Supply Internal large capacity lithium battery pack
Power Adapter:Input 220VAC/50Hz,-20%~+20%
Output DC 15V±10%
Display 10.4 inch high-definition capacitive LCD screen (touch screen)
Size 320mm×250mm×100mm(L×W×H)
Weight <2.75kg



Advantage Of Frequency Protection Relay Test Unit Support SV

Comprehensive test instrument develop based on intelligent substation testing, mainly function is protection relay testing, sampling value analysis, SCD file analysis/comparison and MMS service. Suitable for detection and testing of IED equipment such as intelligent substation protection relay, measurement and control device, merge unit and intelligent terminal. Also can used in signal check of substation control layer.



FAQ

Q: Can the device test the function of Synchronising or synchronism-check relays?

A: Yes.

Q: How about the guarantee of repair?

A: All of our products have 3-years guarantee of free repair, and life-long maintenance.

Q: What is your technical advantages?

A: The smallest digital relay tester, 10.4 inch high-definition capacitive LCD screen, the whole machine full touch screen operation.
