CT Analyzer
Created with Pixso. KT210 CT/PT Analyzer

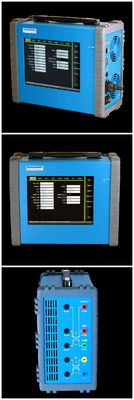

KT210 CT/PT Analyzer

Brand Name: KINGSINE
Model Number: KT210
MOQ: 1 set
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: L/C,T/T
Detail Information
Place of Origin:
China
Certification:
CE/ISO9001
Voltage Input:
0~300V
Secondary Input Accuracy:
±0.1%
Size (W X H X D):
360 X 140 X 325mm
Weight:
<8 Kg
Operating Temperature:
-10°C Up To + 55°C
Storage Temperature:
-25°C Up To + 70°C
Supply Ability:
100 sets/month
Highlight:

KINGSINE Synchronize Relay Tester

,

KINGSINE KT210

,

KT210 Synchronize Relay Tester

Product Description

KINGSINE KT210 Synchronize Relay Tester For Bushing CT Testing

Discription of Synchronize Relay Tester
Comprehensive test instrument develop based on intelligent substation testing, mainly function is protection relay testing, sampling value analysis, SCD file analysis/comparison and MMS service. Suitable for detection and testing of IED equipment such as intelligent substation protection relay, measurement and control device, merge unit and intelligent terminal. Also can used in signal check of substation control layer.

Feature Of Synchronize Relay Test Device
Easy to operate CT / PT Analyzer;
120V / 15A Current Output;
9.7 inch touch screen operation;
IEC60044-1, IEC60044-6, IEC61869-2, ANSI30/45 standard;
High stability for bushing CT testing.


Specification Of Synchronize Relay Test System

Voltage Measurement Input
Secondary Input Range 0~300V
Max Knee point 30KV
Secondary Input Accuracy ±0.1%
Primary Input Range 0~30V
Primary Input Accuracy ±0.1%

Output
Output Voltage 0 Vac to 120 Vac
Output Current 0 A to 5 A (15 A peak)
Output Power 0 VA to 450 VA (1500 VA peak)

Main Power Supply
Input Voltage 176 Vac to 264 Vac @ 10A Max
Permissible Input Voltage 120 Vdc to 370 Vdc @ 5A Max
Frequency 50 / 60 Hz
Permissible Frequency 47 Hz to 63 Hz
Connection Standard AC socket 60320

Physical Dimensions
Size (W x H x D) 360 x 140 x 325mm
Weight <8 kg (without accessories)


Advantage Of Synchronize Relay Test Kit
Complete measurement function, it can test all type current transformer for secondary overload, secondary loop resistance, excitation characteristic, transient characteristic, ratio difference, angle difference and polarity. It can also test exact limit coefficient(ALF), device security coefficient(FS), secondary time constant(Ts), remanence coefficient(Kr), transient area coefficient(Ktd), inflexion voltage, current, level, saturation inductance, un-saturation inductance, 5% 10% error curve, of current transformer, hysteresis loop for current transformer, and evaluate test result according to defined standard.

F&A
Q: 1. How many countries have KINGSINE exported so far ?
A: KINGSINE brand products have been successfully served clients across more than 70 countries worldwide, inclusive of ABB, SIEMENS, SCHNEIDER, GE etc.


Q: 2. What is the lead time for delivery?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.

Q: 3. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
Q: 4. What is the shipping method?
A: It could be shipped by air or by express courier (UPS,DHL,TNT,FEDEX, EMS, SF Express and ect) or even by sea.Please refer to us before placing orders.

Q: 5. What's your acceptable payment term?
A: T/T and L/C at sight are our normal acceptable payment terms.


Q: 6.How long is the warranty period?
A: We provide 3-years guarantee of free repair and life-long maintenance.
