Brand Name: | KINGSINE |
Model Number: | KF85 |
MOQ: | 1 set |
Price: | Negotiation |
Delivery Time: | 15 working days |
Payment Terms: | L/C,T/T |

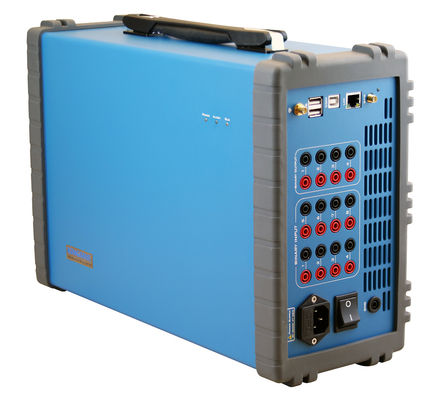

KINGSINE KF85 IEC 61850 Relay Testing Kit Sv Goose Simulator
Discription of High Precision Relay Testing KF85
Universal protection relay test function, With fully function of Manual test, state sequencer, Harmonic, recloser test , Line differential, Distance, Mutation distance, Overcurrent, Zero sequencer, Ramping, Power direction, Differential rate, Differential Harmonic, Overexcitation protection, Synchronize, Reserve power supply test, Busbar differential, Frequency test, Dv/Df test, etc.
Feature Of High Precision Relay Tester KF85
● | Provide 8 pairs of LC optical ports, can transmission and receive 36 channels of IEC61850-9-1, IEC61850-9-2 frame format sample values; with optical power test function. |
● | Automatically import SCL (SCD, ICD, CID, NPI) files to realize automatic configuration of sampled values and GOOSE information, and save sample values and GOOSE configuration information as a configuration file for testing. |
● | It can automatically detect optical digital signals from MU, protection device and intelligent operation box, and realize automatic configuration function of sampling value and GOOSE information; |
● | Can simulate abnormal conditions(loss, misorder, quality abnormality, message re-transmission, data anomaly, out of step, etc.); |
● | Support the graphical display of SCD files, the instrument can graphically display the IED device interconnection relationship and virtual terminal connection. |
Specification Of High Precision Relay Test Device KF85
Frequency & Phase Angle |
|
Frequency Range |
DC ~ 1000Hz, 3000Hz transient |
Frequency Accuracy |
±0.5ppm |
Frequency Resolution |
0.001Hz |
Phase Range |
-360°~360° |
Phase Accuracy |
<0.02° Typ. / <0.1° Guar. 50/60Hz |
Phase Resolution |
0.001° |
Binary input |
|
Electrical isolation |
8 pairs of electrical isolated each |
Input impedance |
5 kΩ…13kΩ(Empty contact) |
Input feature |
0 V~300Vdc Or dry contact |
Sampling Rate |
10kHz |
Time resolution |
10us |
Time measurement range |
0~100000s |
Time accuracy |
±1ms @ <1s |
Debounce time |
0~25ms (Software controlled) |
Binary Output |
|
Quantity |
4 pairs, Fast speed |
Type |
Banana type 4.0mm |
AC break capacity |
Vmax:250V(AC)/ Imax:0.5A |
DC break capacity |
Vmax:250V(DC)/ Imax:0.5A |
Electrical isolation |
All pairs isolated |
Advantage Of High Precision Relay Test Kit KF85
IEC61850 functions:
Fiber port (LC type) | |
Type | 100Base-FX (100Mbit,Fiber, full duplex) |
Port Number | 8 Pairs |
Cable model | 62.5/125μm(Multiple-mode fiber, orange) |
Wave length | 1310nm |
Transmission distance | > 1Km |
Status indication | SPD Green (lights): active connection LinkAcT Yellow (blinking): data exchange |
Fiber serial port (ST type) | |
Standard | IEC60044-7/8 |
Port Number | 6 for transmission, 2 for receive |
Wave length | 850nm |
FAQ
Q: 1. How many countries have KINGSINE exported so far ?
A: KINGSINE brand products have been successfully served clients across more than 70 countries worldwide, inclusive of ABB, SIEMENS, SCHNEIDER, GE etc.
Q: 2. What is the lead time for delivery?
A:It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
Q: 3. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
![]() |
Brand Name: | KINGSINE |
Model Number: | KF85 |
MOQ: | 1 set |
Price: | Negotiation |
Payment Terms: | L/C,T/T |
KINGSINE KF85 IEC 61850 Relay Testing Kit Sv Goose Simulator
Discription of High Precision Relay Testing KF85
Universal protection relay test function, With fully function of Manual test, state sequencer, Harmonic, recloser test , Line differential, Distance, Mutation distance, Overcurrent, Zero sequencer, Ramping, Power direction, Differential rate, Differential Harmonic, Overexcitation protection, Synchronize, Reserve power supply test, Busbar differential, Frequency test, Dv/Df test, etc.
Feature Of High Precision Relay Tester KF85
● | Provide 8 pairs of LC optical ports, can transmission and receive 36 channels of IEC61850-9-1, IEC61850-9-2 frame format sample values; with optical power test function. |
● | Automatically import SCL (SCD, ICD, CID, NPI) files to realize automatic configuration of sampled values and GOOSE information, and save sample values and GOOSE configuration information as a configuration file for testing. |
● | It can automatically detect optical digital signals from MU, protection device and intelligent operation box, and realize automatic configuration function of sampling value and GOOSE information; |
● | Can simulate abnormal conditions(loss, misorder, quality abnormality, message re-transmission, data anomaly, out of step, etc.); |
● | Support the graphical display of SCD files, the instrument can graphically display the IED device interconnection relationship and virtual terminal connection. |
Specification Of High Precision Relay Test Device KF85
Frequency & Phase Angle |
|
Frequency Range |
DC ~ 1000Hz, 3000Hz transient |
Frequency Accuracy |
±0.5ppm |
Frequency Resolution |
0.001Hz |
Phase Range |
-360°~360° |
Phase Accuracy |
<0.02° Typ. / <0.1° Guar. 50/60Hz |
Phase Resolution |
0.001° |
Binary input |
|
Electrical isolation |
8 pairs of electrical isolated each |
Input impedance |
5 kΩ…13kΩ(Empty contact) |
Input feature |
0 V~300Vdc Or dry contact |
Sampling Rate |
10kHz |
Time resolution |
10us |
Time measurement range |
0~100000s |
Time accuracy |
±1ms @ <1s |
Debounce time |
0~25ms (Software controlled) |
Binary Output |
|
Quantity |
4 pairs, Fast speed |
Type |
Banana type 4.0mm |
AC break capacity |
Vmax:250V(AC)/ Imax:0.5A |
DC break capacity |
Vmax:250V(DC)/ Imax:0.5A |
Electrical isolation |
All pairs isolated |
Advantage Of High Precision Relay Test Kit KF85
IEC61850 functions:
Fiber port (LC type) | |
Type | 100Base-FX (100Mbit,Fiber, full duplex) |
Port Number | 8 Pairs |
Cable model | 62.5/125μm(Multiple-mode fiber, orange) |
Wave length | 1310nm |
Transmission distance | > 1Km |
Status indication | SPD Green (lights): active connection LinkAcT Yellow (blinking): data exchange |
Fiber serial port (ST type) | |
Standard | IEC60044-7/8 |
Port Number | 6 for transmission, 2 for receive |
Wave length | 850nm |
FAQ
Q: 1. How many countries have KINGSINE exported so far ?
A: KINGSINE brand products have been successfully served clients across more than 70 countries worldwide, inclusive of ABB, SIEMENS, SCHNEIDER, GE etc.
Q: 2. What is the lead time for delivery?
A:It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
Q: 3. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
