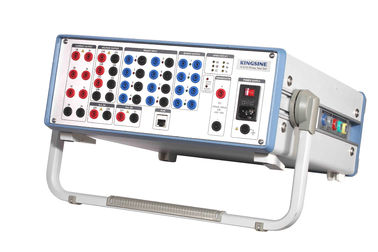

Protection Relay Testing K3030 , Secondary Injection 250V

Protection Relay Testing K3030 , Secondary Injection 250V
Protection Relay Testing K3030 , Secondary Injection 250V

Large Image :  Protection Relay Testing K3030 , Secondary Injection 250V

Product Details:
Place of Origin: China
Brand Name: Kingsine
Certification: ISO9001,CE
Model Number: K3030
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 15 working days
Payment Terms: T/T in advance ,L/C
Supply Ability: 50 sets/ month
Detailed Product Description
High Light:

Protection Relay Testing K3030

,

Secondary Injection 250V Protection Relay Testing

Protection Relay Testing K3030 , Secondary Injection 250V

1. Easy test
2. Operation menu, Simple operation
3. Nominal input voltage:250VAC


 Technical Data of K3030



Voltage generators

Setting

Range

4-phase AC (L-N)

4 x 0 ... 130 V



2-phase AC (L-L)

2 x 0 ... 260 V

Power

4-phase AC (L-N)

4 x 70VA,  at 0 ... 130 V



2-phase AC (L-L)

2 x 140VA,  at 0 ...260 V

Accuracy

<0.07% reading + 0.03% range guaranteed at 0 ... 130 V

<0.02% reading + 0.01% range typical at 0-130V

Resolution

1mV

Current generators

Setting

Range

3-phase AC (L-N)

3 x 0 ... 30 A



1-phase AC (2L-N)

1 x 0 ... 60 A



1-phase AC (3L-N)

1 x 0 ... 90 A

Power

3-phase AC (L-N)

3x 450VA , at 0 ... 30A



1-phase AC (2L-N)

1x 520VA,  at 0 ... 60A



1-phase AC (3L-N)

1 x 1200 VA,  at 0 ... 90A (Max.)

Accuracy

<0.07% reading + 0.06% range guaranteed at 0-30A

<0.02% reading + 0.02% range typical at 0-30A

Resolution

1mA

Generators,  general

Frequency

Range

0 ... 1000 Hz



Accuracy / drift

Error < 0.001Hz at 10 ... 65Hz,

Error < 0.01Hz  at 65Hz...450Hz

Error < 0.02Hz  at 450Hz...1000Hz



Resolution

0.001Hz

Phase

Range

- 360° ... +360°



Accuracy / drift

Error < 0.2 °



Resolution

0.1°

Timer

Range

Infinite



Accuracy / drift

Error<0.1ms

DC generators

Voltage ranges

0 ... 300V/180W

Current ranges

0 ... 20A/300W

Accuracy

<0.07% reading + 0.03% range guaranteed at 0-300V

<0.04% reading + 0.02% range typical at 0-300V



<0.14% reading + 0.06% range guaranteed at 0-20A

<0.05% reading + 0.02% range typical at 0-20A

Resolution

1mA; 1 mV

Aux DC Supply

Range

0...300V/0.6A

Binary inputs

Number

8 pairs

Compatible Voltage

10V ... 250V  DC

Binary outputs

Number

4 Pairs

Capacity

250V/3A     AC/DC

Synchronization

Synchronization mode

GPS

Harmonic

Harmonic overlap times

2 ... 20 times

Power supply

Nominal input voltage

220VAC±20%

Power

1000VA

Nominal frequency

47Hz….65Hz

Environmental conditions

Operation temperature

-5°C ... 55 °C

Storage temperature

-20°C ... 75 °C

Humidity range

5% ... 90 %,  non-condensing

Weight

20 KG

Dimensions

460(D)×140 (W)×360 (H) mm

PC connection

RJ45,



K30 Series Protection Relay Test Set:



Model

Channels

AC Outputs

K3063i / K3063Li

10 output channels

6*30A/3*40A/4*300V

K3030i / K3030Li

7 output channels

3*30A/4*300V

K3066

13 output channels

6*20A/3*40A/7*130V

K3063

10 output channels

6*20A/3*40A/4*130V

K3040

7 output channels

3*40A/4*130V

K3030

7 output channels

3*30A/4*130V



Major Functions:



Items

IEEE(R) No.

Synchronization relay



Fault transplay



GPS Synchronization



Overcurrent relays

50/76

Inverse time overcurrent relays

51

Undercurrent relays

37

Ground fault relays

50

Directional overcurrent relays

67

Directional ground fault relays

67N

Overvoltage relays

59

Undervoltage relays

27

Directional voltage relays

91

Directional power relays

32

Power factor relays

55

Differential protection (differential circuits)

87

Distance protection equipment (phase by phase)

21

Negative sequence overcurrent relays

46N

Motor overload protection

51/86

Automatic reclosing devices

79

Tripping relays

94

Voltage regulating relays



Overimpedance relays,  Z>



Underimpedance relays,  Z



Time-delay relays





1. Unique self-protection system assure the powerful protection when instrument is operating, automatic

     stop the output when the network is abnormal ;
2. Unique power switch and amplifier technology, so the output precision and power efficiency and factor

    are increased, which conforms to international tendency of energy save and environmental protection;
3. With alarm function of housing grounding testing and external voltage input, to guaranty personal

    security;
4. Two in one of meter and source, with function of both internal and external testing, self-calibration,

    oscillograph, and the duration of each oscillograph reaches 50S (optional function);
5. Offer independent Aux. DC to tested devices, 0 ~ 300V/0.6A (Poleless and adjustable);
6. Function of transducer and energy meter testing (optional function);
7. Testing interface offer unique output monitoring function and Pre-curve-tracing function, helps more on

    the spot analysis;
