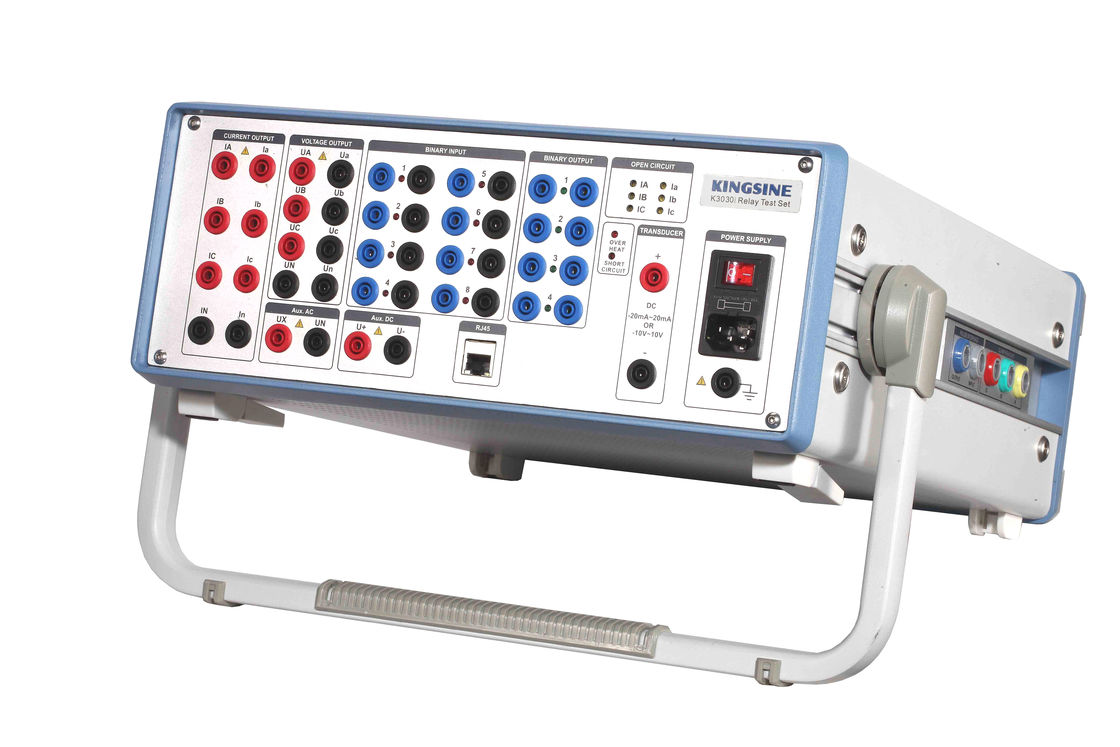

Secondary Injection Protection Relay Testing K3030i , RJ45 Connection
1. Easy test
2. Operation menu, Simple operation
3. Power:1000VA
· Unique self-protection system assure the powerful protection when instrument is operating,automatic
stop the output when the network is abnormal ;
· Unique power switch and amplifier technology, so the output precision and power efficiency and
factor are increased, which conforms to international tendency of energy save and environmental
protection;
· With alarm function of housing grounding testing and external voltage input, to guaranty personal
security;
4. Two in one of meter and source, with function of both internal and external testing, self-calibration,
oscillograph, and the duration of each oscillograph reaches 50S (optional function);
5. Offer independent Aux. DC to tested devices, 0 ~ 300V/0.6A (Poleless and adjustable);
6. Function of transducer and energy meter testing (optional function);
7. Testing interface offer unique output monitoring function and Pre-curve-tracing function, helps more on
the spot analysis;
Technical Data of K3030i
|
Voltage generators |
||
|
Setting Range |
4-phase AC (L-N) |
4 x 0 ... 300 V |
|
|
2-phase AC (L-L) |
2 x 0 ... 600 V |
|
Power |
4-phase AC (L-N) |
4 x 110VA, at 0 ... 300 V |
|
|
2-phase AC (L-L) |
2 x 220VA, at 0 ... 600 V |
|
Accuracy |
<0.07% reading + 0.03% range guaranteed at 0 ... 300 V <0.02% reading + 0.01% range typical at 0-300V |
|
|
Resolution |
1mV |
|
|
Current generators |
||
|
Setting Range |
3-phase AC (L-N) |
3 x 0 ... 30 A |
|
|
1-phase AC (2L-N) |
1 x 0 ... 60 A |
|
|
1-phase AC (3L-N) |
1 x 0 ... 90 A |
|
Power |
3-phase AC (L-N) |
3x 450VA , at 0 ... 30A |
|
|
1-phase AC (2L-N) |
1x 520VA, at 0 ... 60A |
|
|
1-phase AC (3L-N) |
1 x 1200VA, at 0 ... 90A (Max.) |
|
Accuracy |
<0.07% reading + 0.06% range guaranteed at 0-30A <0.02% reading + 0.02% range typical at 0-30A |
|
|
Resolution |
1mA |
|
|
Generators, general |
||
|
Frequency |
Range |
0 ... 1000 Hz |
|
|
Accuracy / drift |
Error < 0.001Hz at 10 ... 65Hz, Error < 0.01Hz at 65Hz...450Hz Error < 0.02Hz at 450Hz...1000Hz |
|
|
Resolution |
0.001Hz |
|
Phase |
Range |
- 360° ... +360° |
|
|
Accuracy / drift |
Error < 0.2 ° |
|
|
Resolution |
0.1° |
|
Timer |
Range |
Infinite |
|
|
Accuracy / drift |
Error<0.1ms |
|
DC generators |
||
|
Voltage ranges |
0 ... 300V/150W |
|
|
Current ranges |
0 ... 20A/300W |
|
|
Accuracy |
<0.07% reading + 0.03% range guaranteed at 0-300V <0.04% reading + 0.02% range typical at 0-300V |
|
|
|
<0.14% reading + 0.06% range guaranteed at 0-20A <0.05% reading + 0.02% range typical at 0-20A |
|
|
Resolution |
1mA; 1 mV |
|
|
Aux DC Supply |
||
|
Range |
0...300V/0.6A |
|
|
Binary inputs |
||
|
Number |
8 pairs |
|
|
Compatible Voltage |
10V ... 250V DC |
|
|
Binary outputs |
||
|
Number |
4 Pairs |
|
|
Capacity |
250V/3A AC/DC |
|
|
Synchronization |
||
|
Synchronization mode |
GPS |
|
|
Harmonic |
||
|
Harmonic overlap times |
2 ... 20 times |
|
|
Power supply |
||
|
Nominal input voltage |
220VAC±20% |
|
|
Power |
1000VA |
|
|
Nominal frequency |
47Hz….65Hz |
|
|
Environmental conditions |
||
|
Operation temperature |
-5°C ... 55 °C |
|
|
Storage temperature |
-20°C ... 75 °C |
|
|
Humidity range |
5% ... 90 %, non-condensing |
|
|
Weight |
20 KG |
|
|
Dimensions |
460(D)×140 (W)×360 (H) mm |
|
|
PC connection |
RJ45, |
|
K30 Series Protection Relay Test Set:
|
Model |
Channels |
AC Outputs |
|
K3063i / K3063Li |
10 output channels |
6*30A/3*40A/4*300V |
|
K3030i / K3030Li |
7 output channels |
3*30A/4*300V |
|
K3066 |
13 output channels |
6*20A/3*40A/7*130V |
|
K3063 |
10 output channels |
6*20A/3*40A/4*130V |
|
K3040 |
7 output channels |
3*40A/4*130V |
|
K3030 |
7 output channels |
3*30A/4*130V |
Major Functions:
|
Items |
IEEE(R) No. |
|
Synchronization relay |
|
|
Fault transplay |
|
|
GPS Synchronization |
|
|
Overcurrent relays |
50/76 |
|
Inverse time overcurrent relays |
51 |
|
Undercurrent relays |
37 |
|
Ground fault relays |
50 |
|
Directional overcurrent relays |
67 |
|
Directional ground fault relays |
67N |
|
Overvoltage relays |
59 |
|
Undervoltage relays |
27 |
|
Directional voltage relays |
91 |
|
Directional power relays |
32 |
|
Power factor relays |
55 |
|
Differential protection (differential circuits) |
87 |
|
Distance protection equipment (phase by phase) |
21 |
|
Negative sequence overcurrent relays |
46N |
|
Motor overload protection |
51/86 |
|
Automatic reclosing devices |
79 |
|
Tripping relays |
94 |
|
Voltage regulating relays |
|
|
Overimpedance relays, Z> |
|
|
Underimpedance relays, Z |
|
|
Time-delay relays |
|
