High Accuracy KINGSINE K3130i Protection Relay Testing Overcurrent Relay Test Kit
Discription of Overcurrent Relay Tester

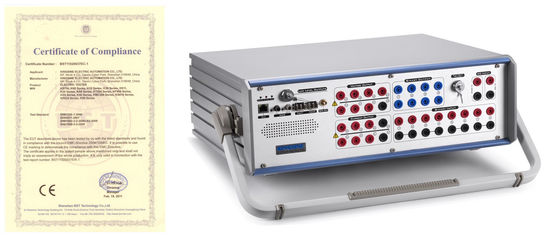

KINGSINE K3130i RELAY TEST is a portable field testing equipment with excellent performance; Elegance and polished appearance with aluminum alloy chassis and PC panel, within the ARM chip control, LCD screen display voltage and current output stopwatch, it could output a full isolation way for adjustable AC/DC voltage, and AC/DC current and a way for adjustable DC voltage; the output loop with double overload protection with large output capacity ,small volume,light weight, high reliability ,It Suitable for field calibration and test for various relay.
Feature Of Overcurrent Relay Test Device
All-in-One design, weight < 17.5kg;
High Power & Accuracy with 3x35A & 4x310V analog outputs;
Complying IEC61850 Sampling Value & GOOSE;
The ever-expanding test library templates;
Optional advance functions like energy meter and transducer calibration etc.
7 Channels (3x35A & 4x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.
13 Low-level channels outputs up to 8Vac/10Vdc max.
100/1000Mbit Fiber port for SMV and GOOSE simulations
Specification Of Overcurrent Relay Test System
| Frequency & Phase Angle | |
| Frequency Range | DC~1KHz, 3KHz transient |
| Frequency Accuracy | ±0.5ppm |
| Frequency Resolution | 0.001 Hz |
| Phase Range | -360°~360° |
| Phase Accuracy | <0.02° Typ. / <0.1° Guar. 50/60Hz |
| Phase Resolution | 0.001° |
| Aux. DC Voltage Source (Battery simulator) | |
| Range | 0~350V @ 140W max |
| Accuracy | 0.5%Rg Guar. |
| Binary Input | |
| Quantity | 8pairs |
| Type | wet/dry, measurement |
| Threshold | 10~600Vdc or potential free, Programmable |
| Time resolution | 10us |
| Sampling Rate | 10KHz |
| Debounce time | 0~25ms (Software Controlled) |
| Time range | Infinite |
| Time errors | ±1ms @ ≤1s, ±0.1% @ >1s |
| Galvanic isolation | 4 isolated with each 2 pairs |
| Binary Output (Relay Type) | |
| Quantity | 4pairs |
| Type | Potential free relay contacts, software controlled |
| Break Capacity AC | Vmax: 400Vac / Imax:8A / Pmax:2500VA |
| Break Capacity DC | Vmax: 300Vdc / Imax:5A / Pmax:150W |
| Binary Output (Semiconductor Type) | |
| Quantity | 4pairs |
| Type: | Open-collector, Combination type female |
| Break Capacity DC | 5~15Vdc / 5mA, 10mA max AC not permit |
| Response time: | 100us |
Advantage Of Overcurrent Relay Test Kit
Transducer Calibration Function:
| DC Measurement Input Hardware is ready, to be active | ||
| Voltage Input | Range | 0~±10V dc |
| Max Input | ±11V dc | |
| Accuracy | <0.05% rg Typ. <0.1% rg Guar. | |
| Input Impedance | 1M ohm | |
| Current Input | Range | 0~±1mA / 1~±20mA, auto range |
| Max Input | 600mA | |
| Accuracy | <0.05% rg Typ. <0.1% rg Guar. | |
| Input Impedance | 15 ohm | |
Energy Meter Calibration Function:
| Energy Meter Calibration Hardware is ready, to be active | |
| Sensor Usage | Mechanical meters / Electronic meters |
| Sensor Output | High lever:>4.5V, Low level:<0.2V |
| Pulse Input | 1 pulse input port, 5Vdc high level valid only. |
| Pulse Range | 500KHz pulse input Max. |
| Pulse Output | 1 Transistor output, Open-collector, 5Vdc/5mA |
F&A
Q: 1. What is the lead time for delivery?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
Q: 2. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
Q: 3.How long is the warranty period?
A: We provide 3-years guarantee of free repair and life-long maintenance.
