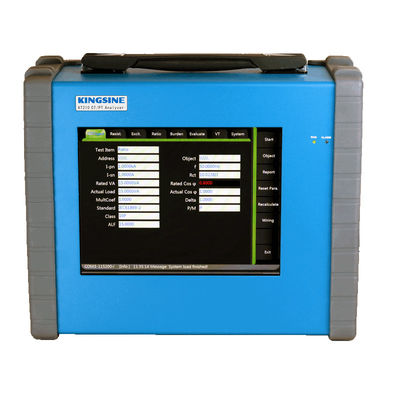

KINGSINE KT210 120V PT CT Analyzer IEC61869-2 ANSI45 standard
Discription of CT Tester
Complete measurement function, it can test all type current transformer for secondary overload, secondary loop resistance, excitation characteristic, transient characteristic, ratio difference, angle difference and polarity. It can also test exact limit coefficient(ALF), device security coefficient(FS), secondary time constant(Ts), remanence coefficient(Kr), transient area coefficient(Ktd), inflexion voltage, current, level, saturation inductance, un-saturation inductance, 5% 10% error curve, of current transformer, hysteresis loop for current transformer, and evaluate test result according to defined standard.
Feature Of CT Analyzer
Easy to operate CT / PT Analyzer,
120V / 15A Current Output,
9.7 inch touch screen operation,
IEC60044-1, IEC60044-6, IEC61869-2, ANSI30/45 standard
High stability for bushing CT testing;
Specification Of CT Test Device
| Ratio Accuracy | |
| Ratio 1 - 5000 | 0.03 % (typical) / 0.1 % (guaranteed) |
| Ratio 5000 - 10000 | 0.05 % (typical) / 0.2 % (guaranteed) |
| Phase Displacement | |
| Resolution | 0.01 min |
| Accuracy | 1 min (typical) / 3 min (guaranteed) |
| Winding Resistance | |
| Range | 0.1 - 100 Ω |
| Resolution | 1 mΩ |
| Accuracy | 0.05 % + 1 mΩ (typical) (guaranteed) 0.1 % + 1 mΩ (guaranteed) |
| Load Measurement | |
| Range | 0~300VA |
| Resolution | 0.01VA |
| Voltage Measurement Input | |
| Secondary Input Range | 0~300V |
| Max Knee point | 30KV |
| Secondary Input Accuracy | ±0.1% |
| Primary Input Range | 0~30V |
| Primary Input Accuracy | ±0.1% |
| Output | |
| Output Voltage | 0 Vac to 120 Vac |
| Output Current | 0 A to 5 A (15 A peak) |
| Output Power | 0 VA to 450 VA (1500 VA peak) |
Advantage Of Current Transformer Analyzer
| ● | Excellent noise immunity to disturbances from energized power lines close to the measurement |
| ● | CT ratio and phase measurement with consideration of nominal and connected secondary burden; CT ratio up to 10000:1 |
| ● | Knee-point voltage from 1 V up to 30 kV can be Measured |
| ● | Currents from 1% up to 400 % of the rated value |
| ● | Different burdens (full, ½, ¼, ⅛ burden) |
| ● | Determination of ALF/ALFi and FS/FSi, Ts, and composite error for nominal and connected burden |
| ● | CT winding resistance measurement |
| ● | CT excitation curve (unsaturated and saturated) |
