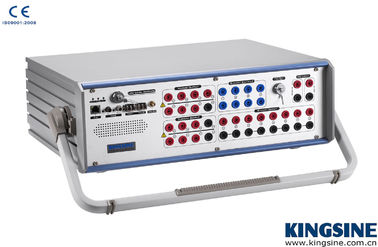

13 Channels 3 Phase Protective Relay Test Set KINGSINE K3166i
Description Of Three-Phase Relay Test
Comprehensive test instrument develop based on intelligent substation testing, mainly function is protection relay testing, sampling value analysis, SCD file analysis/comparison and MMS service. Suitable for detection and testing of IED equipment such as intelligent substation protection relay, measurement and control device, merge unit and intelligent terminal. Also can used in signal check of substation control layer.
Feature Of Three-Phase Relay Test Device
| ● | Universal Relay Test Applications |
| ● | 13 Channels (6x35A & 7x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics. |
| ● | 13 Low-level channels outputs up to 8Vac/10Vdc max. |
| ● | 100/1000Mbit Fiber port for SMV and GOOSE simulations |
| ● | Variable battery simulator, DC 0-350V, 140Watts max. |
| ● | Transient play back up to 3KHz |
| ● | Fully function KRT software testing modules |
| ● | Graphical test modules and templates for testing of various relays |
Specification Of Three-Phase Relay Test Unit
| Voltage Outputs | ||
| Output Range & Power | 7×310 V ac (L-N) | 90 VA max each |
| 3×350 V dc (L-N) | 105 W max each | |
| Accuracy | ±2mV @ <2V ac <0.015%Rd+0.005Rg Typ. @ 2~310V ac <0.04%Rd+0.01Rg Guar. @ 2~310V ac |
|
| ±10mV @ <5V dc ±0.5% @ ≥5V dc |
||
| Voltage Range | Range I : 30V | |
| Range II : 310V | ||
| Automatic Range | ||
| DC Offset | <20mV Typ./ <100mV Guar | |
| Resolution | 1mV | |
| Distortion | <0.015%Typ. / <0.05% Guar. | |
| Current Outputs | ||
| Output Range & Power | 6×35A ac (L-N) | 480 VA max each |
| 3×70A ac (2L-N) | 850 VA max each | |
| 1×100A ac (6L-N) | 1200 VA max | |
| 3×20A dc (L-N) | 300W max each | |
| Accuracy | ±1mA @ <0.5A ac <0.02%Rd+0.01Rg Typ. @ 0.5A~35A ac <0.05%Rd+0.02Rg Guar. @ 0.5A~35A ac |
|
| ±5mA @ <1A dc ±0.5% @ ≥1A dc |
||
| Current Range | Range I: 3A | |
| Range II: 35A | ||
| Automatic Range | ||
| DC Offset | <3mA Typ./ <10mA Guar | |
| Resolution | 1mA | |
| Distortion | <0.025%Typ. / <0.07% Guar. | |
| Low-Level Output | ||
| Quantity | 13 Channels, 16 pin combination female socket | |
| Voltage Outputs Range | AC 0~8V, DC 0~10V | |
| Current Outputs Range | Nominal 2mA, 10mA max transient | |
| Output Power | ≥0.5VA | |
| Accuracy | (0.01~0.8 Vrms):<0.05% Typ. / <0.1% Guar. (0.8~8 Vrms): <0.02% Typ. / <0.05% Guar. |
|
| Resolution | 0.25mV | |
| Distortion (THD%) | <0.05% Typ. / <0.1% Guar. | |
| Frequency Range | 0~3000KHz | |
| DC Offset | <0.15mV Typ. / <1.5mV Guar. | |
Advantage Of Three-Phase Relay Test Kit
Advance Feature
| ● | Complied IEC61850-9-1, IEC61850-9-2, IEC60044-7/8, etc |
| ● | Transducer calibration (0.02 class) |
| ● | Energy meter calibration (Mechanical & Electronic meters) |
