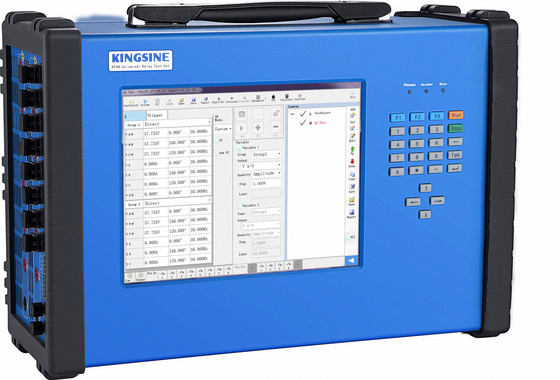

KF86 Protection Relay Testing 6 Phase Relay Test Set

KF86 Protection Relay Testing 6 Phase Relay Test Set
KF86 Protection Relay Testing 6 Phase Relay Test Set

Large Image :  KF86 Protection Relay Testing 6 Phase Relay Test Set

Product Details:
Place of Origin: China
Brand Name: KINGSINE
Certification: CE/ISO9001
Model Number: KF86
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 15 working days
Payment Terms: Negotiation
Supply Ability: 100 sets/month
Detailed Product Description
Name: Protection Relay Testing Nominal Voltage: 220V/110V (AC)
Frequency Accuracy: ±0.5ppm Weight: 10 Kg
Size: 390mm*256mm*140mm Warranty: 3 Years
High Light:

KF86 Protection Relay Testing

,

3000Hz Protection Relay Testing

,

6x20A Relay Test Set





Description Of KF86 Compact 6-phase relay test set

Light weight: 10kg, very small size (390mm*256mm*140mm) easy carry on flight journey.

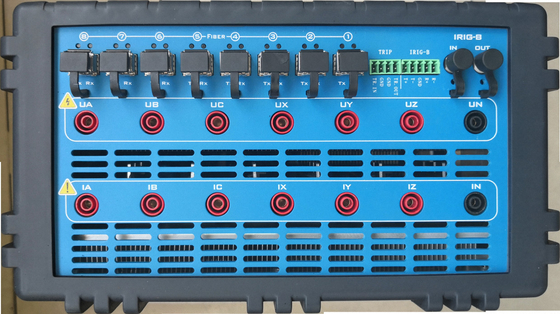

6x20A, 6x310V analog output channels.
Compact 6-phase relay test set with high accuracy & full solution (complying IEC61850 sampled value and GOOSE), fully meet all the requirements for detection and debugging of IEC61850 IEDs, Merge Units, station control systems and traditional protection relays.



Feature Of KF86 Compact 6-phase relay test set

Can subscribe/publish GOOSE information or output, receive switching, and realize closed-loop testing of protection;
Simulate 12-channel low level output to test the protection of low level input;
Start up to simulate the IED to actively release GOOSE, sampled value signals, to eliminate the reset process of the device under test caused by link interruption after the test is stopped;
The optical port output is sampled or GOOSE can be freely defined; multiple different GOOSE control block information can be subscribed/published;



Specification Of KF86 Compact 6-phase relay test set

Frequency & Phase Angle
Frequency Range DC ~ 1000Hz, 3000Hz transient
Frequency Accuracy ±0.5ppm
Frequency Resolution 0.001Hz
Phase Range -360°~360°
Phase Accuracy <0.02° Typ. / <0.1° Guar. 50/60Hz
Phase Resolution 0.001°





Advantage Of KF86 Compact 6-phase relay test set

(Optional modules)
IEC61850 functions:

Fully complying IEC61850 Sampling value and GOOSE; (IEC61850-9-1, IEC61850-9-2/(LE), IEC60044-7/8)
Able to simultaneously output sampling value and analog signals, or subscriber and publish GOOSE message and relay contact binary I/O function.
Up to 36 sampling value channels can be mapped.



F&A

Q: 1. How many countries have KINGSINE exported so far ?
A: KINGSINE brand products have been successfully served clients across more than 70 countries worldwide, inclusive of ABB, SIEMENS, SCHNEIDER, GE etc.



Q: 2. What is the lead time for delivery?
A:It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.

Q: 3. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.


Q:4.How long is the warranty period?

A:We provide 3-years guarantee of free repair and life-long maintenance.
