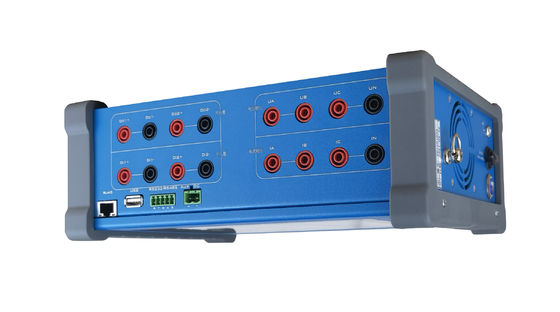

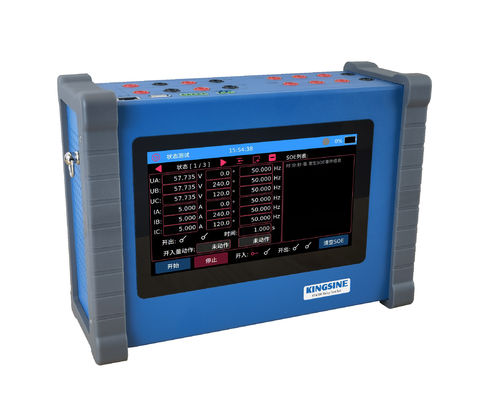

KFA300 mini Protection Relay Tester
Description of KFA300 Protection Relay Tester
B5 paper size,as mini as IPaid Pro. built-in battery design,for on-site maintenance and testing of non-electric environment ,3 phase protection relay testing, secondary circuit inspect and secondary voltage and current testing.
Feature Of KFA300 Protection Relay Tester

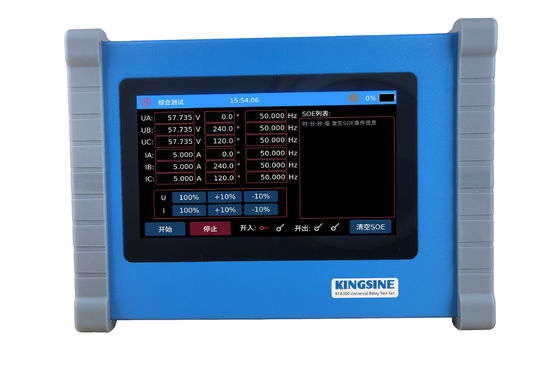

l Operational performance:high-performance FPGA,32-bit ARM microprocessor 1000MHz, smooth operation, 7.0-inch LED capacitive touch screen, full touch operation, mobile phone operation habits, display light transmission, non-reflective contrast, clear display for outdoor
Specification Of KFA300 Protection Relay Tester
|22.5 VA max each@265V|
|21 VA max each@200V|
|Output Range & Power||3×265 V ac (L-N)||12.5 VA max each@100V|
|7 VA max email@example.comV|
|6.65 VA max firstname.lastname@example.orgV|
|1.1 VA max each@10V|
|Distortion||<0.05%Typ. / <0.1% Guar.|
|Output Range & Power||3×10A ac (L-N)||27 VA max each@10A|
|25.5 VA max each@9A|
|24 VA max@8A|
|17 VA max each@5A|
0.2~IMax: ±(0.02%Rd+0.03Rg) Guar.
|Frequency & Phase Angle|
|Frequency Resolution||0.001 Hz|
|Phase Accuracy||<0.1° Typ. / <0.2° Guar. 50/60Hz|
|Aux. DC Voltage Source (Battery simulator)|
110V or 220V output(/Option)；
Other type can be customized；
|Voltage range||dry contact, input voltage DC 0~300V|
|Fast Binary Output|
|Circuit Breaker Simulate||Can be define as Open or Close status|
|Contact performance||Open the dry contact output using opto-coupler relay, the on-resistance is ≤6Ω, and the shut-off withstand voltage is ≤DC350V|
|SOE test function||the time error between the two outputs is ≤0.2ms, and the SOE resolution test can be performed|
|USB2.0||1 USB socket, used for software upgrade|
|Built-in Internal Battery|
|Work time||standby working time is not less than 8 hours；|
|5A current output can work for not less than 1 hour;|
|Charge time||Fast charging, charging time is less than 1 hour|
|Grounding Terminal||4mm banana socket|
|Dimensions(W x D x H)||252×95 ×185 (mm)|
Advantage Of KFA300 Protection Relay Tester
Built-in Internal Battery
8-cell imported lithium battery, standby working time is not less than 8 hours, 5A current output can work continuously for not less than 1 hour;Fast charging, charging time is less than 1 hour.
Q:1.How long is the warranty period?
A:We provide 3-years guarantee of free repair and life-long maintenance.
Q: 2. What is your advantages?
A: KINGSINE have been specializing in electric power testing & measurement for over 21 years. All-in-One design concept, high power burden & high output accuracy but with high cost-efficiency, 3-years guarantee of free repair and life-long maintenance.
Q: 3. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
