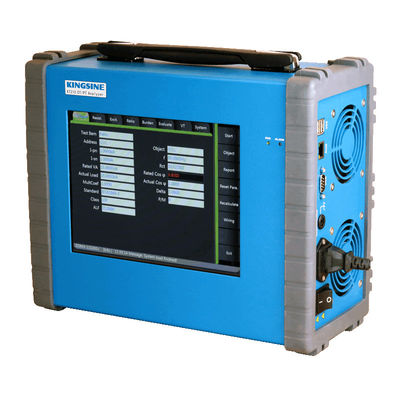

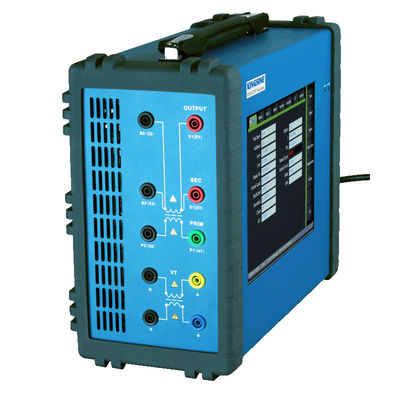

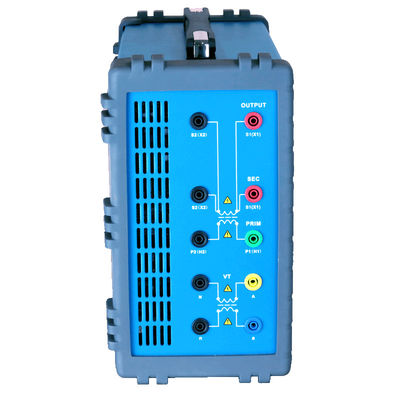

High Stability KT210 PT CT Analyzer For Bushing CT Testing

High Stability KT210 PT CT Analyzer For Bushing CT Testing
High Stability KT210 PT CT Analyzer For Bushing CT Testing

Large Image :  High Stability KT210 PT CT Analyzer For Bushing CT Testing

Product Details:
Place of Origin: CHINA
Brand Name: KINGSINE
Certification: CE/ISO9001
Model Number: KT210
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Detailed Product Description
Warranty: 3 Year, Life Long Maintenance Output: 120V / 15A
Standard: B/T19001-2016/ISO9001:2015 Weight: < 8 Kg
Voltage: Max. 120 V
High Light:

PT CT Analyzer


KT210 CT Analyzer


KT210 CT Testing machine

High Stability KT210 PT CT Analyzer For Bushing CT Testing

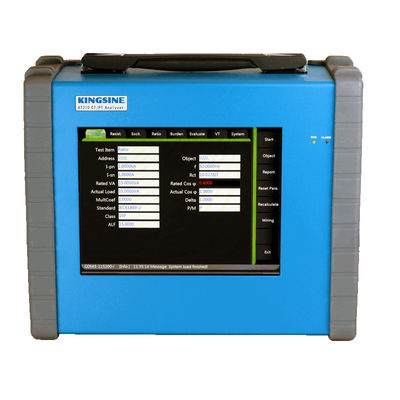

Description of 9.7 inch touch screen operation KT210 CT/PT Analyzer

Easy to operate CT / PT Analyzer,120V / 15A Current Output,
9.7 inch touch screen operation,
IEC60044-1, IEC60044-6, IEC61869-2, ANSI30/45 standard
High stability for bushing CT testing;

Adopt 9.7 inch touch screen TFT LCD display with clear and beautiful software interface design, user can operate easily.

● AC/DC current input for wide range only, satisfy all power supply standard requested.

● Easy to operate, measure quickly, all test can be done automatically based

on the same connection line type except overload impedance measurement.

● Adopt low voltage & variable frequency measurement method,

it can test knee point voltage up to 30kV transformer as output max voltage only is 120V

and max peak value current is 15A, high security.

● Portable design with light weight of 8kg, suitable for field test of electric power system,

manufacturing factory of current transformer or laboratory to use.

● High measurement accuracy, resistance accuracy is 0.1%+1mΩ, phase accuracy±0.05 degree,

variable accuracy is ±0.1% (1-5000 ), variable accuracy is ±0.2%(5000-10000).

● It can test current transformer according to IEC60044-1, IEC60044-6, IEC61869-2

and ANSI30/45 standard etc.

● PT Test As for those inductive PT based on the definition of GB1207-2006(IEC60044-2),

KT210 CT/PT Analyzer can also test them. KT210 CT/PT Analyzer can do variable ratio,

polarity and secondary winding excitation test of inductive PT.


Feature Of KT210 CT/PT Analyzer

Excellent noise immunity to disturbances from energized power lines close to the measurement
● CT ratio and phase measurement with consideration of nominal and connected secondary burden; CT ratio up to 10000:1
● Knee-point voltage from 1 V up to 30 kV can be Measured
● Currents from 1% up to 400 % of the rated value
● Different burdens (full, ½, ¼, ⅛ burden)
● Determination of ALF/ALFi and FS/FSi, Ts, and composite error for nominal and connected burden
● CT winding resistance measurement
● CT excitation curve (unsaturated and saturated)
● Saturation characteristic recording
● Direct comparison of excitation curve to a reference curve
● CT phase and polarity check
● Secondary burden measurement
● Automatic demagnetization of the CT after the test
● Small and lightweight (< 8 kg)
● Short testing time due to fully automatic testing
● High level of safety using patented variable frequency method (max. 120 V)
● "Nameplate guesser" function for CTs with unknown data
● PC control interface




Specification Of KT210 CT/PT Analyzer


● Complete measurement function, it can test all type current transformer

for secondary overload,

secondary loop resistance, excitation characteristic, transient characteristic,

ratio difference, angle difference and polarity.

It can also test exact limit coefficient(ALF), device security coefficient(FS),

secondary time constant(Ts), remanence coefficient(Kr), transient area coefficient(Ktd),

inflexion voltage, current, level, saturation inductance,

un-saturation inductance, 5% 10% error curve, of current transformer,

hysteresis loop for current transformer,

and evaluate test result according to defined standard.



Advantage Of KT210 CT/PT Analyzer

Auto Demagnetizes
● Software-based tool to determine the residual magnetism in current transformers
● Analysis of the remanence condition before putting into operation the CT to assure proper function
● Simplifies power grid failure analysis after unwanted operation of protective relays
● Demagnetizes the CT core after measurement




Q:1.What is your quality management system?

A:Our quality is up to GB/T19001-2016/ISO9001:2015 standard,and we have the certificate

Q: 2.What is your advantages?

A: KINGSINE have been specializing in electric power testing & measurement for over 22 years. All-in-One design concept, high power burden & high output accuracy but with high cost-efficiency, 3-years guarantee of free repair and life-long maintenance.

Q: 3.Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.

Q:4.How about your after-sales service?

A: We are original manufacturer and always give best and soonest after-sales service.our chief engineer Mr.Terry had travelled to different countries for providing onsite technology support,and our sales managers always provide after-sales service positively.
